Catalog
| FIG NO | FIG TITLE |
|---|---|
| 0-60 | ENGINE ELECTRICAL CONTROL PARTS |

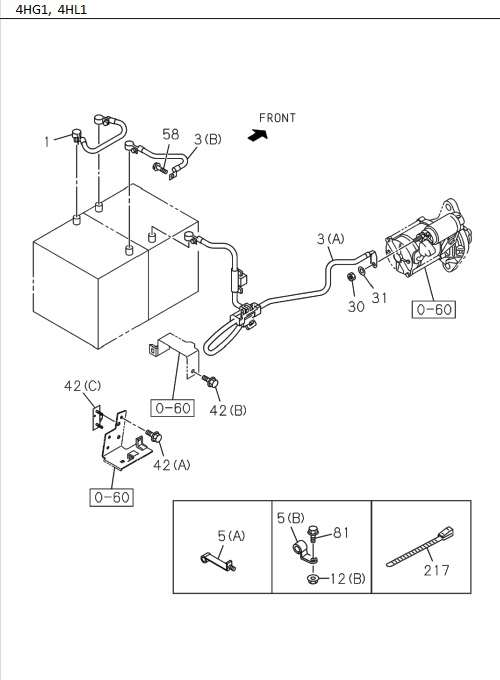

| 0-61 | BATTERY AND ENGINE ELECTRICAL PARTS |

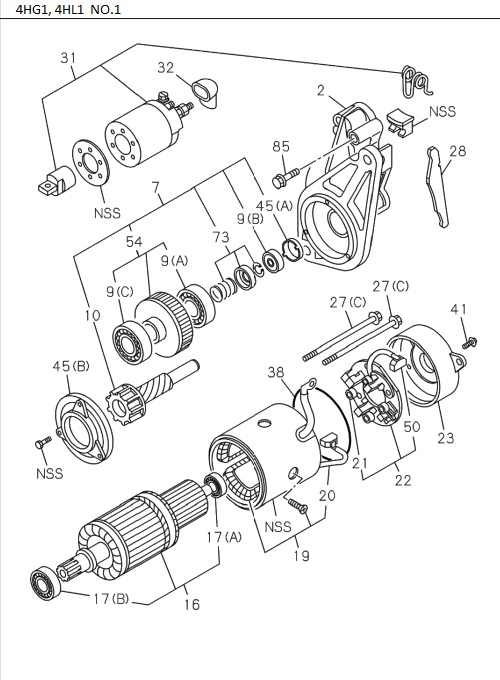

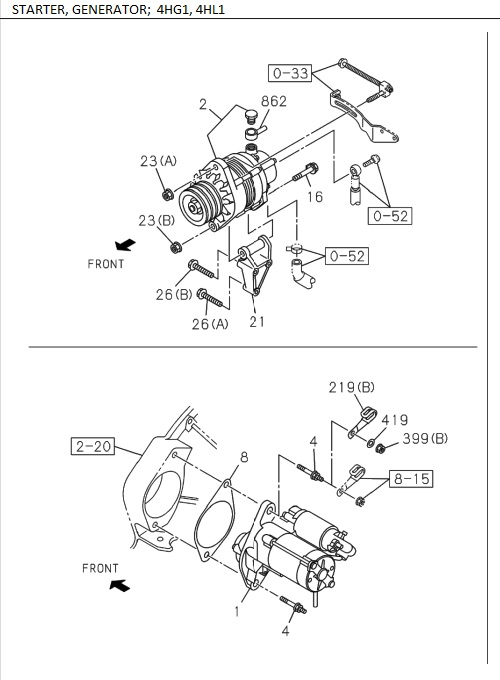

| 0-65 | STARTER |
| 0-66 | GENERATOR |

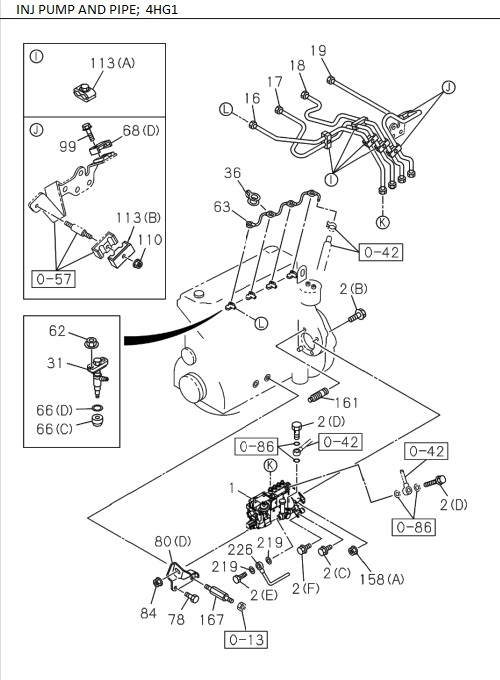

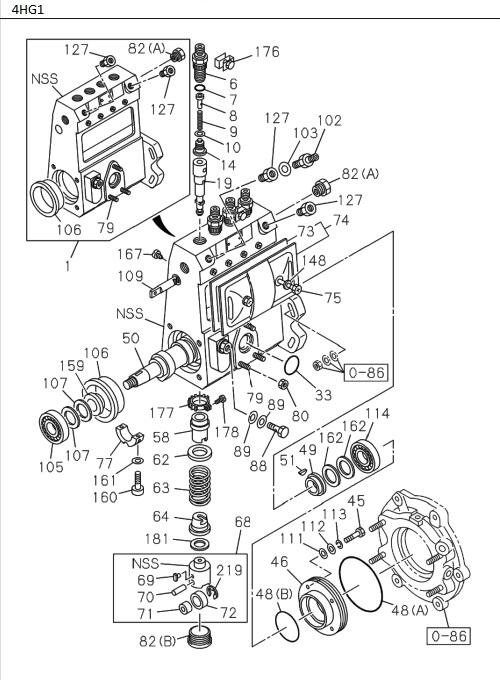

| 0-80 | INJECTION PUMP |
| 0-81 | GOVERNOR; INJECTION PUMP |
| 0-81 | GOVERNOR, INJECTION PUMP |

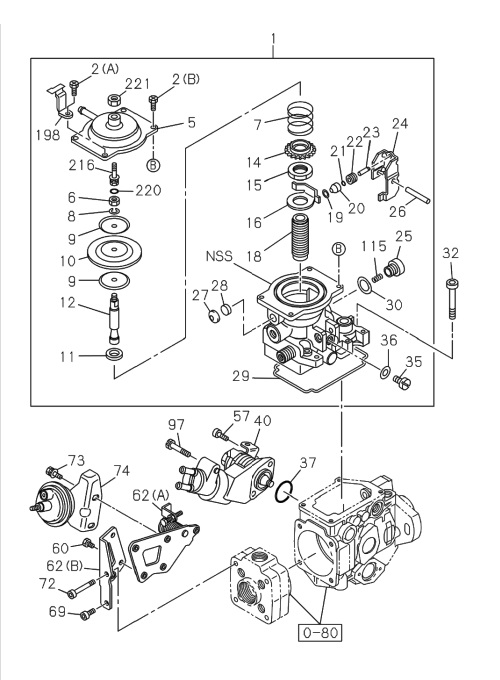

| 0-82 | BOOST CONPENSATOR, INJECTION GOVERNOR |
| 0-82 | BOOST CONPENSATOR; INJECTION GOVERNOR |

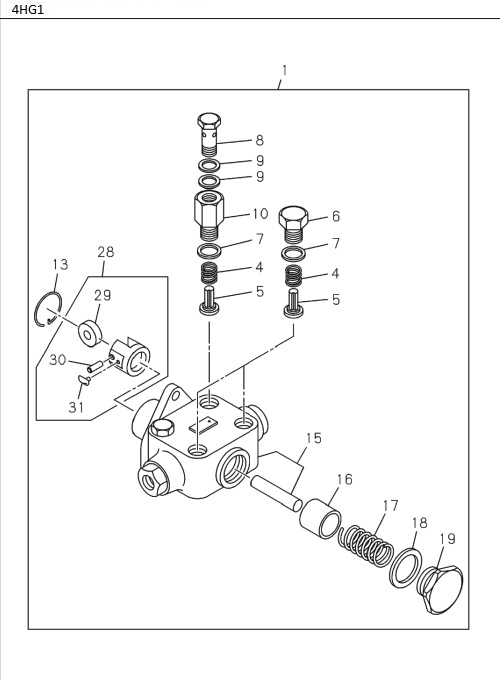

| 0-84 | FEED PUMP; INJECTION PUMP |
| PART NO | DESCRIPTION |
|---|---|
| I0-01805 380-A | HOSE; FUEL, RETURN PIPE |
| I0-01809 410-A | HOSE; FUEL, DELIVERY PIPE |
| I0-01809 600-A | HOSE; FUEL, DELIVERY PIPE |
| I0-01855 300-0 | HOSE, FUEL, RETURN PIPE |
| I0-01859 300-0 | HOSE, FUEL, DELIVERY PIPE |
| I0-03559 300-0 | HOSE, TURBOCHARGER, INL |
| I0-04740 300-0 | HOSE, VAC, M/VAC |
| I0-04930 300-0 | HOSE; VAC, VSV |
| I0-08258 300-0 | HOSE; VAC, PIPE TO PIPE |
| I0-09809 150-0 | HOSE, RETURN,P/S TANK |
| PART NO | DESCRIPTION |
|---|---|
| I0-09809 150-A | HOSE; RETURN,P/S TANK |
| I0-10855 870-0 | PLATE; STUD, BOLT |
| I0-10856 450-0 | BOLT; HOOK |
| I0-16956 460-0 | BOLT; IDLE GEAR SHAFT |
| I0-20800 618-0 | BOLT, DRUM TO HUB |
| I0-20800 845-0 | BOLT, CLAMP |
| I0-20850 816-0 | BOLT; LK PLATE |
| I0-20851 035-0 | BOLT; STOPPER, CLU PEDAL |
| I0-23951 425-0 | BOLT, THRUST COLLAR |
| I0-28050 610-0 | BOLT; LK WASHER |
| PART NO | DESCRIPTION |
|---|---|
| I0-28050 612-0 | BOLT, WATER PIPE |
| I0-28050 616-0 | BOLT; SENSOR |
| I0-28050 630-0 | BOLT, BRKT |
| I0-28050 670-0 | BOLT, BRKT |
| I0-28050 800-0 | BOLT, BRKT, POWER STRG |
| I0-28050 810-0 | BOLT; COVER,ENG |
| I0-28050 812-A | SCREW; SPEEDOMETER BUSHING |
| I0-28050 816-0 | BOLT, GUIDE TUBE |
| I0-28050 820-0 | BOLT; OIL COOLER |
| I0-28050 825-0 | BOLT; CHARGE AIR COOLER |
| PART NO | DESCRIPTION |
|---|---|
| I0-28050 830-0 | BOLT, INL PIPE |
| I0-28050 835-0 | BOLT; ROCKER SHAFT |
| I0-28050 840-0 | BOLT; ROCKER SHAFT |
| I0-28050 845-0 | BOLT; CASE |
| I0-28050 860-0 | BOLT; BRKT, POWER STRG |
| I0-28051 000-0 | BOLT; BRKT, POWER STRG |
| I0-28051 012-0 | BOLT, SIDE COVER |
| I0-28051 016-0 | BOLT; CLU COVER |
| I0-28051 020-0 | BOLT; COVER,ENG |
| I0-28051 025-0 | BOLT; HANGER |
| PART NO | DESCRIPTION |
|---|---|
| I0-28051 030-0 | BOLT, C/MBR, ENG MTG |
| I0-28051 035-0 | BOLT, TRANS CASE TO ENG |
| I0-28051 040-0 | BOLT, TRANS CASE TO ENG |
| I0-28051 045-0 | BOLT; HOOK |
| I0-28051 070-0 | BOLT; SUPPORT RUBBER |
| I0-28051 230-0 | BOLT; SPARE TIRE BRKT |
| I0-28051 235-0 | BOLT; TRANS CASE TO ENG |
| I0-28051 280-0 | BOLT; STARTER |
| I0-28055 812-0 | BOLT; INL MANIF |
| I0-28056 013-0 | BOLT, GEN |
| PART NO | DESCRIPTION |
|---|---|
| I0-28060 816-0 | BOLT; STRAINER ,OIL PUMP |
| I0-28060 825-0 | BOLT, OIL PUMP |
| I0-28060 830-0 | BOLT; OIL PUMP |
| I0-28061 240-0 | BOLT, SPR SUPPORT |
| I0-28080 814-0 | BOLT, PIPE FIX |
| I0-28080 818-0 | BOLT, FAN |
| I0-28151 016-0 | BOLT; GUIDE TUBE |
| I0-28151 020-0 | BOLT, FAN GUIDE |
| I0-28151 025-0 | BOLT; BRKT TB |
| I0-28151 030-0 | BOLT, TRANS CASE TO ENG |
| PART NO | DESCRIPTION |
|---|---|
| I0-28151 035-0 | BOLT, TRANS CASE TO ENG |
| I0-28151 040-0 | BOLT, HSG TO CASE |
| I0-28151 050-0 | BOLT, GEN BRKT |
| I0-28151 070-0 | BOLT, INK PUMP |
| I0-28151 200-0 | BOLT, STAY TO HSG |
| I0-28151 250-0 | BOLT, STAY TO HSG |
| I0-28151 270-0 | BOLT, INJ PUMP |
| I0-28151 290-0 | BOLT; INK PUMP |
| I0-28156 011-0 | BOLT; GUIDE TUBE |
| I0-28161 020-0 | BOLT; ENG FOOT |
| PART NO | DESCRIPTION |
|---|---|
| I0-28161 230-0 | BOLT, ENG HANGER |
| I0-28161 235-0 | BOLT; TRANS CASE TO HSG |
| I0-28181 228-0 | BOLT, BRKT |
| I0-28450 612-0 | BOLT; BRKT |
| I0-28450 616-0 | BOLT; BRKT |
| I0-28450 620-0 | BOLT, OIL TANK BRKT |
| I0-28450 816-0 | BOLT, BRKT, CLUTCH |
| I0-28650 616-0 | BOLT |
| I0-28650 620-0 | BOLT; CLIP |
| I0-28650 625-0 | BOLT; CLIP |
| PART NO | DESCRIPTION |
|---|---|
| I0-28650 640-0 | BOLT; FUEL PIPE |
| I0-28650 820-0 | BOLT |
| I0-28650 825-0 | BOLT, VAC REG VALVE |
| I0-28650 830-0 | BOLT; FUEL FILTER |
| I0-28650 835-0 | BOLT; BRKT |
| I0-28650 840-0 | BOLT; BRKT, LICENSE PLATE |
| I0-28651 020-0 | BOLT; MTG RUBBER |
| I0-28651 025-0 | BOLT; MUD COVER BRKT |
| I0-28651 030-0 | BOLT; CAB STAY |
| I0-28651 035-0 | BOLT; RELAY LEVER |
| PART NO | DESCRIPTION |
|---|---|
| I0-28651 040-0 | BOLT; HSG |
| I0-28651 235-0 | BOLT; BRKT FIX |
| I0-28660 820-0 | BOLT; CAB STAY BRKT |
| I0-28661 025-0 | BOLT; CLU MTG BRKT |
| I0-28661 030-0 | BOLT |
| I0-28661 435-0 | BOLT, BRKT TO CAB FRAME |
| I0-28661 440-0 | BOLT; BRKT, CAB TILT |
| I0-28751 020-0 | BOLT; BRKT TO C/BL |
| I0-28751 030-0 | BOLT, OIL PUMP, P/S |
| I0-28751 225-0 | BOLT; SUPPORT BRKT |
| PART NO | DESCRIPTION |
|---|---|
| I0-28851 420-0 | BOLT; BRKT, POWER STRG |
| I0-36220 408-0 | SCREW; VENTILATOR TO HD COVER |
| I0-36220 510-0 | SCREW; TANK UNIT TO SUB FUEL TANK |
| I0-36220 514-0 | BOLT; SENSOR |
| I0-36230 412-0 | SCREW, SENSOR |
| I0-36230 510-0 | BOLT, VSV |
| I0-36230 620-0 | SCREW; JOINT TO FUEL TANK |
| I0-36410 616-0 | SCREW, DRUM TO HUB |
| I0-38050 512-0 | SCREW; STRG COW |
| I0-38050 612-0 | BOLT; BRKT,INST PANEL |
| PART NO | DESCRIPTION |
|---|---|
| I0-38050 616-0 | SCREW, BRKT |
| I0-41010 618-0 | STUD, FAN CLU |
| I0-41010 620-0 | STUD; WATER PIPE |
| I0-41010 625-0 | STUD; DUCT |
| I0-41010 630-0 | STUD, DUCT |
| I0-41010 818-0 | STUD, WATER PUMP |
| I0-41010 820-0 | STUD; COVER |
| I0-41010 822-0 | STUD, EGR PIPE |
| I0-41010 825-0 | STUD; INL PIPE |
| I0-41010 855-0 | STUD; EGR LVL |
| PART NO | DESCRIPTION |
|---|---|
| I0-44011 025-0 | STUD, EXH PIPE |
| I0-49140 835-0 | STUD; RAIL |
| I0-49140 860-0 | STUD; CYL HD |
| I0-49241 025-0 | STUD; OIL FILTER |
| I0-50540 616-0 | BOLT, COVER TO BRK DRUM |
| I0-50540 818-0 | BOLT, ADAPTER, GOV HSG, INJ PUMP |
| I0-50540 820-0 | BOLT, BRKT |
| I0-50540 822-0 | BOLT, OIL PIPE FIX |
| I0-50540 825-0 | BOLT, HANGER |
| I0-50540 830-0 | BOLT, HSG TO HD |
| PART NO | DESCRIPTION |
|---|---|
| I0-50540 870-0 | BOLT; COVER TO CASE |
| I0-50541 022-0 | BOLT, ENG FOOT |
| I0-50541 030-0 | BOLT, BRKT TO FRAME |
| I0-50541 045-0 | BOLT; HOOK |
| I0-50541 425-0 | BOLT; ENG FOOT |
| I0-50551 020-0 | BOLT, BRKT TO INJ PUMP |
| I0-50551 435-0 | BOLT |
| I0-50561 040-0 | BOLT; FINAL DRIVE SETTING |
| I0-50561 050-0 | BOLT; FINAL DRIVE SETTING |
| I0-50640 625-0 | BOLT, OIL PIPE, OIL JET |
| PART NO | DESCRIPTION |
|---|---|
| I0-50640 816-0 | BOLT; HEAT PROTECTION FIX |
| I0-50640 825-0 | BOLT; COVER,ENG |
| I0-50640 828-0 | BOLT, CHANGE LEVER |
| I0-50640 830-0 | BOLT; OUTLET PIPE |
| I0-50641 025-0 | BOLT, RET |
| I0-50651 025-0 | BOLT, BRKT, EXH PIPE |
| I0-50740 820-0 | BOLT; BRKT |
| I0-50740 845-0 | BOLT; SUPPORT RUBBER |
| I0-52000 816-0 | BOLT, BRKT, AIR DUCT |
| I0-52010 616-0 | BOLT, FRT PANEL |
| PART NO | DESCRIPTION |
|---|---|
| I0-58330 650-0 | BOLT, INL PIPE |
| I0-58331 255-0 | BOLT, COVER TO CASE |
| I0-70540 420-0 | SCREW; BACK TRIM |
| I0-71040 516-0 | SCREW; TRAY INST |
| I0-71190 420-0 | SCREW, RR COMB LAMP |
| I0-71240 412-0 | SCREW; BACK HORN |
| I0-72180 512-0 | SCREW; LINER |
| I0-72180 516-0 | BOLT; INST PNL |
| I0-72180 518-0 | BOLT, STRG COLUMN |
| I0-72180 520-0 | SCREW, BRACKET CENTER POCKET |
| PART NO | DESCRIPTION |
|---|---|
| I0-72380 516-0 | SCREW; INSIDE HANDLE |
| I0-74165 516-0 | SCREW, RAD GRILLE |
| I0-74360 410-0 | SCREW; FRT PANEL SIDE |
| I0-74360 516-0 | SCREW, FRT BUMPER |
| I0-81122 012-0 | PIN; SPLIT,RET |
| I0-81123 020-0 | PIN; SPLIT, CAB STAY PIN |
| I0-81124 020-0 | PIN, SPLIT, CAB STAY |
| I0-81124 030-0 | PIN; SPLIT |
| I0-81125 040-0 | PIN; SPLIT, HUB TO AXLE SHAFT |
| I0-90301 406-0 | NIPPLE, GREASE, PROP SHAFT |
| PART NO | DESCRIPTION |
|---|---|
| I0-90301 610-0 | NIPPLE, GREASE, PROP SHAFT |
| I0-91110 508-0 | NUT; EXH BRAKE UNIT FIX |
| I0-91110 510-0 | NUT; ENG MTG RR |
| I0-91110 512-0 | NUT; RR BRK ASM SETTING |
| I0-91110 516-0 | NUT; PIN LK |
| I0-91110 518-0 | NUT; PIN, RR SPR |
| I0-91110 520-0 | NUT; FRT HUB |
| I0-91110 522-0 | NUT, FRT HUB |
| I0-91111 510-0 | NUT; ADJ SCREW,LK |
| I0-91111 512-0 | NUT, STOPPER BOLT, KNUCKLE |
| PART NO | DESCRIPTION |
|---|---|
| I0-91111 514-0 | NUT, STRG WHEEL TO SHAFT |
| I0-91111 516-0 | NUT, CAB MTG RR |
| I0-91111 522-0 | NUT, PITMAN ARM |
| I0-91117 508-0 | NUT; RET |
| I0-91118 408-0 | NUT; WING, COVER FIX |
| I0-91180 106-0 | NUT; CONTROLLER |
| I0-91180 108-0 | NUT; CLIP,PARKING CONT CABLE |
| I0-91180 110-0 | NUT; BRKT,HARNESS |
| I0-91180 112-0 | NUT, BRKT FIX |
| I0-91180 114-0 | NUT; INJ PUMP |
| PART NO | DESCRIPTION |
|---|---|
| I0-91180 206-0 | NUT; INL PIPE |
| I0-91180 208-0 | NUT; CAM BRKT |
| I0-91180 212-0 | NUT |
| I0-91180 214-0 | NUT; HOOK |
| I0-91380 006-0 | NUT; VACK TANK TO BRKT |
| I0-91380 008-0 | NUT, PARKING BRK |
| I0-91380 010-0 | NUT; FULCRUM PIN |
| I0-91510 508-0 | WASHER; LK, CABLE, STARTER TO BATTERY |
| I0-91510 510-0 | WASHER; L K, KEY BOLT |
| I0-91510 512-0 | WASHER; FINAL DRIVE PINION |
| PART NO | DESCRIPTION |
|---|---|
| I0-91510 610-0 | WASHER, LK, YOKE TO RR AXLE |
| I0-91510 612-0 | WASHER, LK |
| I0-91510 622-0 | WASHER, L K, PITMAN ARM |
| I0-91510 808-0 | WASHER; L K, STRG SHAFT |
| I0-91510 810-0 | WASHER; L K, RR BRK ASM SETTING |
| I0-91510 812-0 | WASHER; LK, YOKE TO RR AXLE |
| I0-91510 814-0 | WASHER; LK, HOOK |
| I0-91541 208-0 | WASHER; LK, SHIFT WIRE |
| I0-91541 216-0 | WASHER; HOSE, P/S |
| I0-91610 506-0 | WASHER; LEVER SPR |
| PART NO | DESCRIPTION |
|---|---|
| I0-91610 508-0 | WASHER, PL,CHARGE AIR COOLER |
| I0-91610 508-A | WASHER; PL, BATTERY TO CARRIER |
| I0-91610 510-0 | WASHER; PL, STAY |
| I0-91610 512-0 | WASHER, CAB LOCK ROD |
| I0-91610 606-0 | WASHER; PL |
| I0-91610 610-0 | WASHER; RELAY LEVER |
| I0-91610 612-0 | WASHER, PL, CAB STAY |
| I0-91610 708-0 | WASHER; ENG CONT |
| I0-91610 710-0 | WASHER, PL, CUSHION RUBBER |
| I0-91614 508-0 | WASHER; SHIFT CABLE |
| PART NO | DESCRIPTION |
|---|---|
| I0-91614 608-0 | WASTER, PL, CLAMP |
| I0-91614 610-0 | WASHER; PL, ENG MTG RR TO FRAME |
| I0-91614 616-0 | WASHER, S/ABS |
| I0-91614 705-0 | WASHER; ENG COVER |
| I0-91614 708-0 | WASHER, PL, CLAMP |
| I0-91614 710-0 | WASHER, LK, ENG STOP |
| I0-91614 714-0 | WASHER, PL, BRKT TO FRAME |
| I0-91614 808-0 | WASHER, PL, SUPPORT RUBBER, EXH PI |
| I0-91614 810-0 | WASHER; PL, AIR INT DUCT |
| I0-91800 618-0 | RING, SNAP |
| PART NO | DESCRIPTION |
|---|---|
| I0-91805 504-0 | RING; SNAP, LINK TO CAM PLATE, GOVE |
| I0-91805 506-0 | RING; SNAP, LOCK LEVER, CAB STAY |
| I0-91805 510-0 | RING, SNAP, CHANGE LEVER |
| I0-91805 512-0 | RING; SNAP, HAND BRK CABLE |
| I0-92001 416-0 | PLUG , PLATE |
| I0-92107 005-0 | CONNECTOR |
| I0-92107 605-0 | NUT; UNION,OIL PIPE |
| I0-95234 622-0 | CLIP; AIR PIPE |
| I0-95235 032-0 | CLIP; P/S PIPE |
| I0-95235 035-0 | CLIP; P/S PIPE |
| PART NO | DESCRIPTION |
|---|---|
| I0-95235 286-0 | CLIP; BAND, BRK CABLE |
| I0-95235 552-0 | CLIP; ACCEL CONT CABLE |
| I0-95690 111-0 | GASKET, CONNECTOR |
