| 20 |
I8-94428 872-0 |
|
PLUG, CLOSING, GOV SLEEVE |
1 |
|
|
4JB1-TC |
L=3.00 |
| 456 |
I1-15723 295-0 |
|
SPRING, LEVER, GOV |
1 |
|
|
4HG1-T |
(A) |
| 98 |
I8-94433 808-0 |
|
GASKET, PIVOT BOLT, GOV LEVER |
2 |
|
|
4JB1-TC |
|
| 20 |
I8-94372 502-0 |
|
PLUG, CLOSING, GOV SLEEVE |
1 |
|
|
4JB1-TC |
L=5.50 |
| 130 |
I1-15725 527-0 |
|
LEVER, CONT, GOV |
1 |
|
|
4HG1-T |
|
| 45 |
I8-97224 539-0 |
|
LEVER, ASM, GOV, INJ PUMP |
1 |
|
|
4JB1-TC |
|
| 49 |
I8-94227 606-0 |
|
GASKET, GOV SHAFT, INJ PUMP |
1 |
|
|
4JB1-TC |
|
| 177 |
I9-81325 445-0 |
|
RING, SNAP, GOV LEVER, INJ PUMP |
1 |
|
|
4HG1-T |
|
| 128 |
I1-15729 899-0 |
|
SHIM, CONT SHAFT, GOV |
AR |
|
|
4HG1-T |
T=0.90 |
| 167 |
I8-94174 987-0 |
|
BOLT, PLATE |
1 |
|
|
4JB1-TC |
|
| 128 |
I1-15729 898-0 |
|
SHIM, CONT SHAFT, GOV |
AR |
|
|
4HG1-T |
T=0.80 |
| 53 |
I8-94227 585-0 |
|
GASKET, CONT SHAFT. GOV |
1 |
|
|
4JB1-TC |
|
| 4 |
I1-15779 591-0 |
|
PLATE, START SPRING, GOV |
1 |
|
|
4HG1-T |
|
| 302 |
I8-98283 545-0 |
|
PLATE, CAM, GOV |
1 |
|
|
4HG1-T |
|
| 79 |
I1-15729 078-0 |
|
SHIM, LEVER SETTING, GOV |
AR |
|
|
4HG1-T |
(B) T=0.25 |
| 90 |
I1-15729 800-0 |
|
SCREW, FULL LOAD ADJ, GOV |
1 |
|
|
4HG1-T |
(A) M6X34 |
| 20 |
I8-94408 532-0 |
|
PLUG, CLOSING, GOV SLEEVE |
1 |
|
|
4JB1-TC |
L=4.50 |
| 3 |
I5-15729 027-0 |
|
BOLT, GOV HSG, INJ PUMP |
5 |
|
|
4HG1-T |
(A) M6X15 |
| 71 |
I8-97026 929-0 |
|
SPRING, CONT LEVER, GOV |
2 |
|
|
4HG1-T |
|
| 256 |
I1-15779 214-0 |
|
SEAT, GOV SPRING |
1 |
|
|
4HG1-T |
|
| 90 |
I1-15729 801-0 |
|
SCREW, FULL LOAD ADJ, GOV |
1 |
|
|
4HG1-T |
(A) M6X35 |
| 3 |
I5-15729 071-0 |
|
BOLT, GOV HSG, INJ PUMP |
1 |
|
|
4HG1-T |
(B) M6X16 |
| 79 |
I1-15729 617-0 |
|
SHIM, LEVER SETTING, GOV |
AR |
|
|
4HG1-T |
(B) T=0.70 |
| 102 |
I8-94227 593-0 |
|
WASHER, FULL LOAD ADJ SCREW, GOV |
1 |
|
|
4JB1-TC |
|
| 237 |
I8-94472 269-0 |
|
SHIM, SPR CAPSULE, TIMER, INJ PUMP |
AR |
|
|
4HG1-T |
T=0.20 |
| 37 |
I8-97214 455-0 |
|
LEVER ASM, TENSION, GOV |
1 |
|
|
4HG1-T |
|
| 46 |
I8-94473 128-0 |
|
SPRING, GOV, INJ PUMP |
2 |
|
|
4JB1-TC |
(A) |
| 128 |
I1-15729 897-0 |
|
SHIM, CONT SHAFT, GOV |
AR |
|
|
4HG1-T |
T=0.60 |
| 104 |
I8-94316 262-0 |
|
CAP, LOCK NUT. ADJ SCREW |
1 |
|
|
4JB1-TC |
(A) L=16.5 |
| 17 |
I9-81325 552-0 |
|
SHIM, FLYWEIGHT SLEEVE, GOV |
AR |
|
|
4HG1-T |
T=0.40 |
| 237 |
I8-94472 268-0 |
|
SHIM, SPR CAPSULE, TIMER, INJ PUMP |
AR |
|
|
4HG1-T |
T=0.10 |
| 51 |
I8-97231 938-0 |
|
SHAFT, LOAD CONT LEVER, GOV |
1 |
|
|
4JB1-TC |
|
| 104 |
I8-94316 265-0 |
|
CAP, LOCK NUT. ADJ SCREW |
1 |
|
|
4JB1-TC |
(B) L=24.0 |
| 20 |
I8-94408 524-0 |
|
PLUG, CLOSING, GOV SLEEVE |
1 |
|
|
4JB1-TC |
L=2.90 |
| 179 |
I8-94171 132-0 |
|
LEVER, SPD ADJ, GOV |
1 |
|
|
4HG1-T |
|
| 79 |
I1-15729 077-0 |
|
SHIM, LEVER SETTING, GOV |
AR |
|
|
4HG1-T |
(B) T=0.20 |
| 197 |
I5-15725 008-0 |
|
SHAFT, LEVER, GOV COVER |
1 |
|
|
4HG1-T |
|
| 96 |
I8-94171 148-0 |
|
PLUG, LEVER SHAFT, GOV |
1 |
|
|
4HG1-T |
(C ) |
| 253 |
I8-94167 792-0 |
|
LIMITTER, GOV CONT |
1 |
|
|
4HG1-T |
|
| 34 |
I8-94171 140-1 |
|
SPRING, SPD CONT LEVER, GOV |
1 |
|
|
4HG1-T |
|
| 7 |
I8-97142 961-0 |
|
COVER, GOV HSG, INJ PUMP |
1 |
|
|
4HG1-T |
|
| 17 |
I8-94231 123-0 |
|
SHIM, FLYWEIGHT SLEEVE, GOV |
AR |
|
|
4JB1-TC |
T=1.15 |
| 28 |
I1-15725 485-0 |
|
LEVER, SUPPORTING, GOV |
1 |
|
|
4HG1-T |
(B) |
| 235 |
I8-97214 456-0 |
|
SPRING, OUTER, GOV, INJ PUMP |
1 |
|
|
4HG1-T |
|
| 46 |
I8-97115 983-0 |
|
SPRING, GOV, INJ PUMP |
1 |
|
|
4HG1-T |
(C ) |
| 20 |
I8-94408 526-0 |
|
PLUG, CLOSING, GOV SLEEVE |
1 |
|
|
4JB1-TC |
L=3.30 |
| 20 |
I8-94408 522-0 |
|
PLUG, CLOSING, GOV SLEEVE |
1 |
|
|
4JB1-TC |
L=2.50 |
| 41 |
I8-97085 009-0 |
|
SPRING CAPSULE, IDLE CONT, GOV |
1 |
|
|
4HG1-T |
|
| 92 |
I8-94313 253-0 |
|
BOLT, FULL LOAD STOPPER, GOV |
1 |
|
|
4JB1-TC |
|
| 20 |
I8-94408 534-0 |
|
PLUG, CLOSING, GOV SLEEVE |
1 |
|
|
4JB1-TC |
L=4.90 |
| 151 |
I0-50540 818-0 |
|
BOLT, ADAPTER, GOV HSG, INJ PUMP |
1 |
|
|
4HG1-T |
M8X18 |
| 28 |
I1-15725 472-0 |
|
LEVER, SUPPORTING, GOV |
1 |
|
|
4HG1-T |
(A) |
| 101 |
I8-94227 598-0 |
|
GASKET, ADJ SPRING CAPSULE, GOVE |
1 |
|
|
4JB1-TC |
|
| 48 |
I8-94171 146-1 |
|
SHAFT, GOV, INJ PUMP |
1 |
|
|
4HG1-T |
|
| 5 |
I1-15779 106-0 |
|
GASKET, GOV TO INJ PUMP HSG |
1 |
|
|
4HG1-T |
|
| 17 |
I1-15729 891-0 |
|
SHIM, FLYWEIGHT SLEEVE, GOV |
AR |
|
|
4HG1-T |
T=2.00 |
| 39 |
I9-88410 201-0 |
|
RING, SNAP, LEVER PIN, GOV |
2 |
|
|
4HG1-T |
|
| 96 |
I5-15729 076-0 |
|
PLUG, LEVER SHAFT, GOV |
1 |
|
|
4HG1-T |
(A) |
| 20 |
I8-94428 868-0 |
|
PLUG, CLOSING, GOV SLEEVE |
1 |
|
|
4JB1-TC |
L=2.20 |
| 20 |
I8-94428 869-0 |
|
PLUG, CLOSING, GOV SLEEVE |
1 |
|
|
4JB1-TC |
L=2.40 |
| 90 |
I1-15729 761-0 |
|
SCREW, FULL LOAD ADJ, GOV |
1 |
|
|
4HG1-T |
(B) M8X65 |
| 64 |
I8-97086 120-0 |
|
LEVER, LOAD CONT, GOV |
1 |
|
|
4JB1-TC |
STAMP 042 |
| 128 |
I9-81325 556-0 |
|
SHIM, CONT SHAFT, GOV |
AR |
|
|
4HG1-T |
T=0.50 |
| 464 |
I8-97214 519-0 |
|
JOINT, POTENTIO METER |
1 |
|
|
4JB1-TC |
ANGLE=165 DEGREES |
| 79 |
I1-15729 081-0 |
|
SHIM, LEVER SETTING, GOV |
AR |
|
|
4HG1-T |
(B) T=0.40 |
| 20 |
I8-97163 170-0 |
|
PLUG, CLOSING, GOV SLEEVE |
1 |
|
|
4JB1-TC |
L=5.90 |
| 20 |
I8-97163 169-0 |
|
PLUG, CLOSING, GOV SLEEVE |
1 |
|
|
4JB1-TC |
L=5.80 |
| 93 |
I8-94171 148-0 |
|
NUT, ADJ SCREW LK, INJ PUMP GOV |
1 |
|
|
4HG1-T |
(C ) |
| 55 |
I8-94239 373-0 |
|
GASKET, MAG VLV, INJ PUMP |
1 |
|
|
4JB1-TC |
|
| 305 |
I8-97089 310-0 |
|
SHIM, STOP LEVER GOV |
AR |
|
|
4HG1-T |
(A) T=0.40 |
| 90 |
I1-15729 642-0 |
|
SCREW, FULL LOAD ADJ, GOV |
1 |
|
|
4HG1-T |
(F) M8X62 |
| 50 |
I8-94473 129-0 |
|
NUT, GOV SHAFT, INJ PUMP |
1 |
|
|
4JB1-TC |
|
| 64 |
I8-97026 934-1 |
|
LEVER, LOAD CONT, GOV |
1 |
|
|
4HG1-T |
|
| 128 |
I9-81325 557-0 |
|
SHIM, CONT SHAFT, GOV |
AR |
|
|
4HG1-T |
T=0.30 |
| 116 |
I8-97121 632-0 |
|
LEVER, ENG STOP, GOV |
1 |
|
|
4HG1-T |
(B) |
| 464 |
I8-97168 229-0 |
|
JOINT, POTENTIO METER |
1 |
|
|
4JB1-TC |
ANGLE=15 DEGREES |
| 464 |
I8-97168 230-0 |
|
JOINT, POTENTIO METER |
1 |
|
|
4JB1-TC |
ANGLE=30 DEGREES |
| 20 |
I8-94408 523-0 |
|
PLUG, CLOSING, GOV SLEEVE |
1 |
|
|
4JB1-TC |
L=2.70 |
| 77 |
I8-94244 599-0 |
|
RING SNAP, CONT LEVER, GOV |
1 |
|
|
4HG1-T |
|
| 8 |
I5-15729 033-0 |
|
BOLT, GOV COVER, INJ PUMP |
7 |
|
|
4HG1-T |
|
| 237 |
I1-15729 968-0 |
|
SHIM, SPR CAPSULE, TIMER, INJ PUMP |
AR |
|
|
4HG1-T |
T=0.80 |
| 104 |
I8-97085 021-0 |
|
CAP, LOCK NUT. ADJ SCREW |
1 |
|
|
4HG1-T |
(C) |
| 20 |
I8-94408 535-0 |
|
PLUG, CLOSING, GOV SLEEVE |
1 |
|
|
4JB1-TC |
L=5.10 |
| 464 |
I8-97168 232-0 |
|
JOINT, POTENTIO METER |
1 |
|
|
4JB1-TC |
ANGLE=60 DEGREES |
| 90 |
I1-15729 842-0 |
|
SCREW, FULL LOAD ADJ, GOV |
1 |
|
|
4HG1-T |
(A) M6X31 |
| 140 |
I8-94313 267-0 |
|
BOLT, BRKT, INJ PUMP |
1 |
|
|
4JB1-TC |
(B) M6X12 |
| 79 |
I8-97066 844-0 |
|
SHIM, LEVER SETTING, GOV |
1 |
|
|
4HG1-T |
(A) |
| 17 |
I5-15729 286-0 |
|
SHIM, FLYWEIGHT SLEEVE, GOV |
AR |
|
|
4HG1-T |
T=0.50 |
| 104 |
I8-97085 022-0 |
|
CAP, LOCK NUT. ADJ SCREW |
1 |
|
|
4HG1-T |
(D) |
| 464 |
I8-97214 518-0 |
|
JOINT, POTENTIO METER |
1 |
|
|
4JB1-TC |
ANGLE=150 DEGREES |
| 464 |
I8-97214 517-0 |
|
JOINT, POTENTIO METER |
1 |
|
|
4JB1-TC |
ANGLE=135 DEGREES |
| 17 |
I8-94231 125-0 |
|
SHIM, FLYWEIGHT SLEEVE, GOV |
AR |
|
|
4JB1-TC |
T=1.55 |
| 80 |
I1-09985 179-0 |
|
WASHER, LK, CONT LEVER, GOV |
1 |
|
|
4JB1-TC |
ID=6.1 |
| 282 |
I8-97148 143-0 |
|
SCREW, POTENTIO METER |
1 |
|
|
4JB1-TC |
|
| 20 |
I8-94408 525-0 |
|
PLUG, CLOSING, GOV SLEEVE |
1 |
|
|
4JB1-TC |
L=3.10 |
| 17 |
I8-94231 124-0 |
|
SHIM, FLYWEIGHT SLEEVE, GOV |
AR |
|
|
4JB1-TC |
T=1.35 |
| 198 |
I8-97026 928-0 |
|
BRACKET, COVER |
1 |
|
|
4HG1-T |
|
| 125 |
I8-94171 168-0 |
|
CAP, STOP LEVER SPRING, GOV |
1 |
|
|
4HG1-T |
|
| 79 |
I1-15729 618-0 |
|
SHIM, LEVER SETTING, GOV |
AR |
|
|
4HG1-T |
(B) T=0.90 |
| 295 |
I5-15729 023-0 |
|
RING, SNAP |
1 |
|
|
4HG1-T |
|
| 17 |
I8-94227 611-0 |
|
SHIM, FLYWEIGHT SLEEVE, GOV |
AR |
|
|
4JB1-TC |
T=1.85 |
| 150 |
I9-81315 065-0 |
|
ADAPTER, GOV HSG, INJ PUMP |
1 |
|
|
4HG1-T |
|
| 169 |
I5-15723 032-0 |
|
SPRING, LEVER SET, GOV |
1 |
|
|
4HG1-T |
|
| 12 |
I5-15722 017-0 |
|
FLYWEIGHT ASM, GOV |
1 |
|
|
4HG1-T |
|
| 16 |
I9-81325 086-0 |
|
NUT, FLYWEIGHT FIX, GOV |
1 |
|
|
4HG1-T |
|
| 276 |
I1-15725 534-0 |
|
LEVER ASM, LOAD CONT, GOV |
1 |
|
|
4HG1-T |
|
| 51 |
I1-15729 876-0 |
|
SHAFT, LOAD CONT LEVER, GOV |
1 |
|
|
4HG1-T |
|
| 17 |
I9-81325 553-0 |
|
SHIM, FLYWEIGHT SLEEVE, GOV |
AR |
|
|
4HG1-T |
T=1.00 |
| 90 |
I8-94316 276-0 |
|
SCREW, FULL LOAD ADJ, GOV |
1 |
|
|
4JB1-TC |
(C) L=57.0 |
| 96 |
I8-94171 145-0 |
|
PLUG, LEVER SHAFT, GOV |
1 |
|
|
4HG1-T |
(B) |
| 90 |
I1-15729 803-0 |
|
SCREW, FULL LOAD ADJ, GOV |
1 |
|
|
4HG1-T |
(A) M6X37 |
| 17 |
I1-15729 893-0 |
|
SHIM, FLYWEIGHT SLEEVE, GOV |
AR |
|
|
4HG1-T |
T=4.00 |
| 75 |
I1-15729 963-0 |
|
TUBE, RETRUN SPRING, STOPPER LEVE |
2 |
|
|
4HG1-T |
|
| 12 |
I8-94228 403-0 |
|
FLYWEIGHT ASM, GOV |
1 |
|
|
4JB1-TC |
|
| 448 |
I8-97182 233-0 |
|
PLATE, BRKT |
1 |
|
|
4JB1-TC |
|
| 20 |
I8-94408 531-0 |
|
PLUG, CLOSING, GOV SLEEVE |
1 |
|
|
4JB1-TC |
L=4.30 |
| 305 |
I9-81325 553-0 |
|
SHIM, STOP LEVER GOV |
AR |
|
|
4HG1-T |
(B) T=1.00 |
| 287 |
I1-15725 542-0 |
|
LEVER, GOV |
1 |
|
|
4HG1-T |
|
| 116 |
I8-97121 631-0 |
|
LEVER, ENG STOP, GOV |
1 |
|
|
4HG1-T |
(A) |
| 48 |
I8-94248 002-0 |
|
SHAFT, GOV, INJ PUMP |
1 |
|
|
4JB1-TC |
|
| 252 |
I1-15779 003-1 |
|
SCREW, GUIDE |
1 |
|
|
4HG1-T |
|
| 237 |
I1-15729 967-0 |
|
SHIM, SPR CAPSULE, TIMER, INJ PUMP |
AR |
|
|
4HG1-T |
T=0.50 |
| 163 |
I1-15629 859-0 |
|
GASKET, CONT SHAFT, GOV |
1 |
|
|
4HG1-T |
|
| 52 |
I8-94227 590-0 |
|
WASHER, CONT SHAFT, GOV |
1 |
|
|
4JB1-TC |
|
| 128 |
I9-88410 421-0 |
|
SHIM, CONT SHAFT, GOV |
AR |
|
|
4HG1-T |
T=0.20 |
| 19 |
I8-94408 519-0 |
|
CAP, GOV SLEEVE, INJ PUMP |
1 |
|
|
4JB1-TC |
|
| 168 |
I1-15729 796-0 |
|
PLUG, CONT SHAFT, GOV |
1 |
|
|
4HG1-T |
|
| 93 |
I1-15729 643-0 |
|
NUT, ADJ SCREW LK, INJ PUMP GOV |
1 |
|
|
4HG1-T |
(A) |
| 20 |
I8-94428 875-0 |
|
PLUG, CLOSING, GOV SLEEVE |
1 |
|
|
4JB1-TC |
L=3.60 |
| 411 |
I1-15719 005-0 |
|
BOLT, BRKT |
2 |
|
|
4HG1-T |
(A) |
| 17 |
I9-81325 088-0 |
|
SHIM, FLYWEIGHT SLEEVE, GOV |
AR |
|
|
4HG1-T |
T=0.20 |
| 20 |
I8-94408 530-0 |
|
PLUG, CLOSING, GOV SLEEVE |
1 |
|
|
4JB1-TC |
L=4.10 |
| 140 |
I8-94313 203-0 |
|
BOLT, BRKT, INJ PUMP |
1 |
|
|
4JB1-TC |
(C) |
| 305 |
I8-97089 309-0 |
|
SHIM, STOP LEVER GOV |
AR |
|
|
4HG1-T |
(A) T=0.30 |
| 133 |
I1-15729 834-0 |
|
BOLT, BRKT FIX, GOV |
2 |
|
|
4HG1-T |
|
| 20 |
I8-94428 877-0 |
|
PLUG, CLOSING, GOV SLEEVE |
1 |
|
|
4JB1-TC |
L=4.00 |
| 18 |
I8-97214 475-0 |
|
SLEEVE, GOV |
1 |
|
|
4JB1-TC |
|
| 13 |
I8-94221 411-0 |
|
KEY, FLYWEIGHT, GOV |
1 |
|
|
4HG1-T |
16MM |
| 456 |
I8-94413 728-0 |
|
SPRING, LEVER, GOV |
1 |
|
|
4HG1-T |
(B) |
| 15 |
I8-94227 614-0 |
|
WASHER, LK, FLYWEIGHT FIX, GOV |
1 |
|
|
4JB1-TC |
(B) |
| 304 |
I0-91805 504-0 |
|
RING, SNAP, LINK TO CAM PLATE, GOVE |
1 |
|
|
4HG1-T |
ID=4 |
| 54 |
I8-94239 372-0 |
|
VALVE, MAG, ENG STOP, INJ PUMP |
1 |
|
|
4JB1-TC |
|
| 305 |
I8-97089 308-0 |
|
SHIM, STOP LEVER GOV |
AR |
|
|
4HG1-T |
(A) T=0.20 |
| 423 |
I1-15729 820-0 |
|
SHAFT, CONT, GOV HSG, INJ PUMP |
1 |
|
|
4HG1-T |
|
| 17 |
I9-81325 551-0 |
|
SHIM, FLYWEIGHT SLEEVE, GOV |
AR |
|
|
4HG1-T |
T=0.30 |
| 199 |
I5-15729 076-0 |
|
PLUG, LEVER SHAFT, GOV COVER |
2 |
|
|
4HG1-T |
|
| 464 |
I8-97168 231-0 |
|
JOINT, POTENTIO METER |
1 |
|
|
4JB1-TC |
ANGLE=45 DEGREES |
| 38 |
I1-15729 370-0 |
|
PIN, TENSION LVER, GOV |
1 |
|
|
4HG1-T |
|
| 464 |
I8-97214 514-0 |
|
JOINT, POTENTIO METER |
1 |
|
|
4JB1-TC |
ANGLE=90 DEGREES |
| 90 |
I8-94313 253-0 |
|
SCREW, FULL LOAD ADJ, GOV |
1 |
|
|
4JB1-TC |
(E) |
| 20 |
I8-94372 501-0 |
|
PLUG, CLOSING, GOV SLEEVE |
1 |
|
|
4JB1-TC |
L=5.40 |
| 20 |
I8-94428 879-0 |
|
PLUG, CLOSING, GOV SLEEVE |
1 |
|
|
4JB1-TC |
L=4.40 |
| 305 |
I8-97089 311-0 |
|
SHIM, STOP LEVER GOV |
AR |
|
|
4HG1-T |
(A) T=0.60 |
| 90 |
I1-15729 802-0 |
|
SCREW, FULL LOAD ADJ, GOV |
1 |
|
|
4HG1-T |
(A) M6X36 |
| 175 |
I8-97176 488-0 |
|
LEVER, GOV, INJ PUMP |
1 |
|
|
4HG1-T |
|
| 79 |
I1-15729 896-0 |
|
SHIM, LEVER SETTING, GOV |
AR |
|
|
4HG1-T |
(B) T=0.60 |
| 268 |
I5-15723 056-0 |
|
SPRING, ROD INNER, TORQUE CAM, GOV |
1 |
|
|
4HG1-T |
|
| 128 |
I9-81325 560-0 |
|
SHIM, CONT SHAFT, GOV |
AR |
|
|
4HG1-T |
T=0.35 |
| 180 |
I8-97121 643-0 |
|
PLATE, GOV COVER |
1 |
|
|
4HG1-T |
|
| 22 |
I8-94368 298-1 |
|
COLLAR, LEVER., GOV |
1 |
|
|
4HG1-T |
|
| 234 |
I8-97214 457-0 |
|
SPRING, INNER, GOV INJ PUMP |
1 |
|
|
4HG1-T |
|
| 17 |
I1-15729 892-0 |
|
SHIM, FLYWEIGHT SLEEVE, GOV |
AR |
|
|
4HG1-T |
T=3.00 |
| 90 |
I1-15729 843-0 |
|
SCREW, FULL LOAD ADJ, GOV |
1 |
|
|
4HG1-T |
(A) M6X32 |
| 271 |
I5-15725 009-1 |
|
ROD, TORQUE CAM, GOV |
1 |
|
|
4HG1-T |
|
| 140 |
I8-97218 971-0 |
|
BOLT, BRKT, INJ PUMP |
1 |
|
|
4JB1-TC |
(A) |
| 64 |
I8-97086 121-0 |
|
LEVER, LOAD CONT, GOV |
1 |
|
|
4JB1-TC |
STAMP 043 |
| 74 |
I9-09160 506-0 |
|
WASHER, LEVER SPR |
1 |
|
|
4HG1-T |
ID=6.4 |
| 15 |
I8-94227 612-0 |
|
WASHER, LK, FLYWEIGHT FIX, GOV |
1 |
|
|
4JB1-TC |
(A) |
| 464 |
I8-97214 516-0 |
|
JOINT, POTENTIO METER |
1 |
|
|
4JB1-TC |
ANGLE=120 DEGREES |
| 57 |
I8-97138 042-1 |
|
NUT, VLV |
1 |
|
|
4JB1-TC |
|
| 15 |
I5-15729 034-0 |
|
WASHER, LK, FLYWEIGHT FIX, GOV |
1 |
|
|
4HG1-T |
(C ) |
| 93 |
I1-15729 807-0 |
|
NUT, ADJ SCREW LK, INJ PUMP GOV |
1 |
|
|
4HG1-T |
(B) |
| 1 |
I8-98272 998-0 |
|
GOVERNOR ASM, INJ PUMP |
1 |
|
|
4HG1-T |
|
| 17 |
I8-94227 608-0 |
|
SHIM, FLYWEIGHT SLEEVE, GOV |
AR |
|
|
4JB1-TC |
T=1.25 |
| 46 |
I8-97115 982-0 |
|
SPRING, GOV, INJ PUMP |
1 |
|
|
4HG1-T |
(B) |
| 104 |
I8-94316 266-0 |
|
CAP, LOCK NUT. ADJ SCREW |
1 |
|
|
4JB1-TC |
(B) L=27.0 |
| 79 |
I1-15729 080-0 |
|
SHIM, LEVER SETTING, GOV |
AR |
|
|
4HG1-T |
(B) T=0.35 |
| 17 |
I8-94231 126-0 |
|
SHIM, FLYWEIGHT SLEEVE, GOV |
AR |
|
|
4JB1-TC |
T=1.75 |
| 21 |
I8-97223 398-0 |
|
LEVER ASM, GUID, GOV |
1 |
|
|
4HG1-T |
|
| 138 |
I8-97214 513-0 |
|
POTENTIO METER |
1 |
|
|
4JB1-TC |
|
| 20 |
I8-94428 870-0 |
|
PLUG, CLOSING, GOV SLEEVE |
1 |
|
|
4JB1-TC |
L=2.60 |
| 93 |
I8-94426 047-1 |
|
NUT, ADJ SCREW LK, INJ PUMP GOV |
2 |
|
|
4JB1-TC |
(D) |
| 17 |
I8-94227 607-0 |
|
SHIM, FLYWEIGHT SLEEVE, GOV |
AR |
|
|
4JB1-TC |
T=1.05 |
| 14 |
I8-94227 613-0 |
|
HOLDER, GOV FLYWEIGHT, INJ PUMP |
1 |
|
|
4JB1-TC |
|
| 20 |
I8-94372 500-0 |
|
PLUG, CLOSING, GOV SLEEVE |
1 |
|
|
4JB1-TC |
L=5.30 |
| 104 |
I8-94316 263-0 |
|
CAP, LOCK NUT. ADJ SCREW |
1 |
|
|
4JB1-TC |
(B) L= 18.0 |
| 411 |
I1-15719 005-0 |
|
BOLT, BRKT |
1 |
|
|
4HG1-T |
(B) |
| 90 |
I8-94316 275-0 |
|
SCREW, FULL LOAD ADJ, GOV |
1 |
|
|
4JB1-TC |
(D) L=55.0 |
| 17 |
I8-94227 610-0 |
|
SHIM, FLYWEIGHT SLEEVE, GOV |
AR |
|
|
4JB1-TC |
T=1.65 |
| 79 |
I1-15729 619-0 |
|
SHIM, LEVER SETTING, GOV |
AR |
|
|
4HG1-T |
(B) T=0.80 |
| 79 |
I1-15729 517-0 |
|
SHIM, LEVER SETTING, GOV |
AR |
|
|
4HG1-T |
(C) |
| 50 |
I8-94171 147-0 |
|
NUT, GOV SHAFT, INJ PUMP |
1 |
|
|
4HG1-T |
|
| 104 |
I8-94316 264-0 |
|
CAP, LOCK NUT. ADJ SCREW |
1 |
|
|
4JB1-TC |
(B) L=21.0 |
| 20 |
I8-94428 878-0 |
|
PLUG, CLOSING, GOV SLEEVE |
1 |
|
|
4JB1-TC |
L=4.20 |
| 79 |
I1-15729 076-0 |
|
SHIM, LEVER SETTING, GOV |
AR |
|
|
4HG1-T |
(B) T=0.95 |
| 90 |
I1-15729 799-0 |
|
SCREW, FULL LOAD ADJ, GOV |
1 |
|
|
4HG1-T |
(A) M6X33 |
| 20 |
I8-94372 499-0 |
|
PLUG, CLOSING, GOV SLEEVE |
1 |
|
|
4JB1-TC |
L=5.20 |
| 20 |
I8-94428 876-0 |
|
PLUG, CLOSING, GOV SLEEVE |
1 |
|
|
4JB1-TC |
L=3.80 |
| 20 |
I8-94408 529-0 |
|
PLUG, CLOSING, GOV SLEEVE |
1 |
|
|
4JB1-TC |
L=3.90 |
| 188 |
I1-15729 790-0 |
|
STUD, COVER |
1 |
|
|
4HG1-T |
|
| 121 |
I9-01910 612-0 |
|
BOLT, ENG STOP LEVER, GOV |
1 |
|
|
4HG1-T |
M6X12 |
| 126 |
I1-15729 853-0 |
|
GASKET, STOP LEVER, GOV |
1 |
|
|
4HG1-T |
|
| 291 |
I5-15729 023-0 |
|
RING, SNAP, CON SHAFT, GOV |
1 |
|
|
4HG1-T |
|
| 97 |
I8-94227 601-0 |
|
BOLT, PIVOT, GOV LEVER |
2 |
|
|
4JB1-TC |
|
| 17 |
I8-94227 609-0 |
|
SHIM, FLYWEIGHT SLEEVE, GOV |
AR |
|
|
4JB1-TC |
T=1.45 |
| 20 |
I8-94408 527-0 |
|
PLUG, CLOSING, GOV SLEEVE |
1 |
|
|
4JB1-TC |
L=3.50 |
| 237 |
I8-94472 270-0 |
|
SHIM, SPR CAPSULE, TIMER, INJ PUMP |
AR |
|
|
4HG1-T |
T=0.25 |
| 20 |
I8-94428 882-0 |
|
PLUG, CLOSING, GOV SLEEVE |
1 |
|
|
4JB1-TC |
L=5.00 |
| 20 |
I8-94408 521-0 |
|
PLUG, CLOSING, GOV SLEEVE |
1 |
|
|
4JB1-TC |
L=2.30 |
| 20 |
I8-94428 881-0 |
|
PLUG, CLOSING, GOV SLEEVE |
1 |
|
|
4JB1-TC |
L=4.80 |
| 20 |
I8-97163 168-0 |
|
PLUG, CLOSING, GOV SLEEVE |
1 |
|
|
4JB1-TC |
L=5.70 |
| 82 |
I1-15729 236-0 |
|
NUT, CONT LEVER FIX, GOV |
1 |
|
|
4HG1-T |
|
| 20 |
I8-94428 874-0 |
|
PLUG, CLOSING, GOV SLEEVE |
1 |
|
|
4JB1-TC |
L=3.40 |
| 272 |
I8-94171 138-0 |
|
SCREW, ADJ, TORQUE CAM ROD, GOV |
1 |
|
|
4HG1-T |
|
| 224 |
I8-94171 142-0 |
|
SHIFTER, TENSION LEVER, GOV |
1 |
|
|
4HG1-T |
|
| 20 |
I8-94408 520-0 |
|
PLUG, CLOSING, GOV SLEEVE |
1 |
|
|
4JB1-TC |
L=2.10 |
| 20 |
I8-94428 871-0 |
|
PLUG, CLOSING, GOV SLEEVE |
1 |
|
|
4JB1-TC |
L=2.80 |
| 239 |
I8-94171 144-0 |
|
SCREW, GOV |
1 |
|
|
4HG1-T |
|
| 305 |
I8-97089 312-0 |
|
SHIM, STOP LEVER GOV |
AR |
|
|
4HG1-T |
(A) T=0.80 |
| 20 |
I8-94408 533-0 |
|
PLUG, CLOSING, GOV SLEEVE |
1 |
|
|
4JB1-TC |
L=4.70 |
| 464 |
I8-97214 520-0 |
|
JOINT, POTENTIO METER |
1 |
|
|
4JB1-TC |
ANGLE=0 DEGREES |
| 464 |
I8-97168 233-0 |
|
JOINT, POTENTIO METER |
1 |
|
|
4JB1-TC |
ANGLE=75 DEGREES |
| 20 |
I8-94428 873-0 |
|
PLUG, CLOSING, GOV SLEEVE |
1 |
|
|
4JB1-TC |
L=3.20 |
| 56 |
I8-94470 582-0 |
|
WIRE, LEAD, MAG VLV, INJ PUMP |
1 |
|
|
4JB1-TC |
|
| 2 |
I1-15721 265-0 |
|
HOUSING, GOV, INJ PUMP |
1 |
|
|
4HG1-T |
|
| 79 |
I1-15729 079-0 |
|
SHIM, LEVER SETTING, GOV |
AR |
|
|
4HG1-T |
(B) T=0.30 |
| 90 |
I8-94316 274-0 |
|
SCREW, FULL LOAD ADJ, GOV |
1 |
|
|
4JB1-TC |
(C) L=53.0 |
| 128 |
I9-81325 559-0 |
|
SHIM, CONT SHAFT, GOV |
AR |
|
|
4HG1-T |
T=0.25 |
| 255 |
I8-94171 173-0 |
|
SEAT, GOV SPRING, INJ PUMP |
1 |
|
|
4HG1-T |
|
| 117 |
I8-94336 925-0 |
|
SPRING, STOP LEVER, GOV |
1 |
|
|
4HG1-T |
|
| 20 |
I8-97163 167-0 |
|
PLUG, CLOSING, GOV SLEEVE |
1 |
|
|
4JB1-TC |
L=5.60 |
| 237 |
I1-15729 966-0 |
|
SHIM, SPR CAPSULE, TIMER, INJ PUMP |
AR |
|
|
4HG1-T |
T=0.30 |
| 237 |
I8-94472 271-0 |
|
SHIM, SPR CAPSULE, TIMER, INJ PUMP |
AR |
|
|
4HG1-T |
T=1.00 |
| 128 |
I9-81325 558-0 |
|
SHIM, CONT SHAFT, GOV |
AR |
|
|
4HG1-T |
T=0.40 |
| 20 |
I8-94428 880-0 |
|
PLUG, CLOSING, GOV SLEEVE |
1 |
|
|
4JB1-TC |
L=4.60 |
| 135 |
I8-97231 937-0 |
|
BRACKET, POTENTIO METER |
1 |
|
|
4JB1-TC |
|
| 93 |
I8-94316 277-0 |
|
NUT, ADJ SCREW LK, INJ PUMP GOV |
1 |
|
|
4JB1-TC |
(E) |
| 270 |
I5-15729 051-0 |
|
NUT, TORQUE ROD LK,GOV |
1 |
|
|
4HG1-T |
|
| 303 |
I5-15729 023-0 |
|
RING, SNAP, CAM PLATE, GOVE |
1 |
|
|
4HG1-T |
|
| 18 |
I5-15729 372-0 |
|
SLEEVE, GOV |
1 |
|
|
4HG1-T |
|
| 20 |
I8-94408 528-0 |
|
PLUG, CLOSING, GOV SLEEVE |
1 |
|
|
4JB1-TC |
L=3.70 |
| 79 |
I1-15729 082-0 |
|
SHIM, LEVER SETTING, GOV |
AR |
|
|
4HG1-T |
(B) T=0.50 |
| 119 |
I1-15729 236-0 |
|
NUT, ENG STOP LEVER, GOV |
1 |
|
|
4HG1-T |
|
| 464 |
I8-97214 515-0 |
|
JOINT, POTENTIO METER |
1 |
|
|
4JB1-TC |
ANGLE=105 DEGREES |
| 181 |
I8-97214 506-0 |
|
SPACER, BRKT |
2 |
|
|
4JB1-TC |
|
| 24 |
I5-15723 035-0 |
|
SPRING, START, GOV, INJ PUMP |
1 |
|
|
4HG1-T |
|
| 71 |
I8-97214 511-0 |
|
SPRING, CONT LEVER, GOV |
1 |
|
|
4JB1-TC |
|
| 410 |
I8-97231 936-0 |
|
BRACKET, GOV |
1 |
|
|
4JB1-TC |
|
| 17 |
I5-15729 287-0 |
|
SHIM, FLYWEIGHT SLEEVE, GOV |
AR |
|
|
4HG1-T |
T=1.50 |
| 463 |
I8-97148 144-0 |
|
BOOT, POTENTIO MOTER |
1 |
|
|
4JB1-TC |
|
| 11 |
I1-15779 107-0 |
|
GASKET, COVER TO HSG, GOV |
1 |
|
|
4HG1-T |
|
| 82 |
I1-15729 006-0 |
|
NUT, CONT LEVER FIX, GOV |
1 |
|
|
4JB1-TC |
|
| 170 |
I5-15723 033-0 |
|
SPRING, LEVER TO LEVER, GOV |
1 |
|
|
4HG1-T |
|
| 269 |
I5-15723 070-1 |
|
SPRING, ROD OUTER, TORQUE CAM, GOV |
1 |
|
|

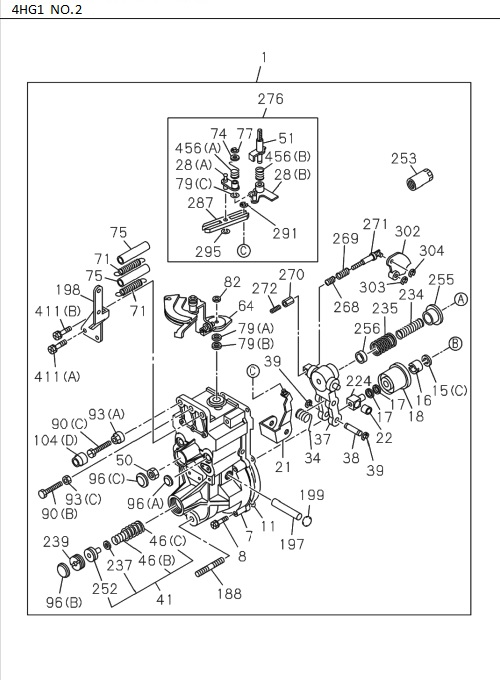

4HG1-T |
|
