1-35 | CHARGE AIR COOLER
ELF
NLR55 NMR71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

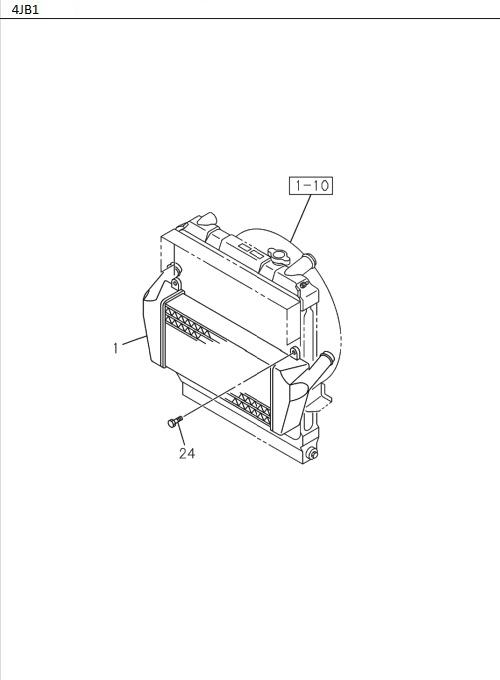

| 1 | I8-97210 644-A | COOLER, CHARGE AIR | 1 | 1512- | 4JB1-TC | |||

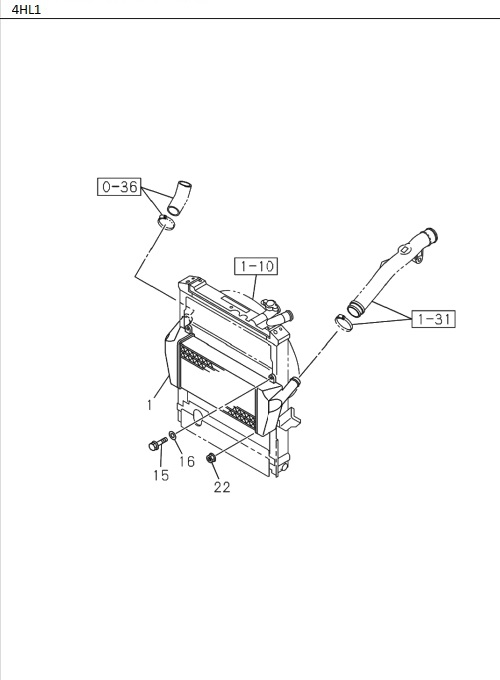

| 15 | I0-28050 825-0 | BOLT, CHARGE AIR COOLER | 2 | 1807- | 4HL1-TC | M8X25 | ||
| 22 | I0-91180 108-0 | NUT | 2 | 1807- | 4HL1-TC | M8 | ||
| 1 | I8-97489 497-0 | COOLER, CHARGE AIR | 1 | 1807- | 4HL1-TC | |||
| 16 | I0-91610 508-0 | WASHER, PL,CHARGE AIR COOLER | 2 | 1807- | 4HL1-TC | ID=8.4 OD=16 | ||
| 24 | I0-28050 825-0 | BOLT, COOLER TO ROD | 4 | 1512- | 4JB1-TC | M8X25 |
