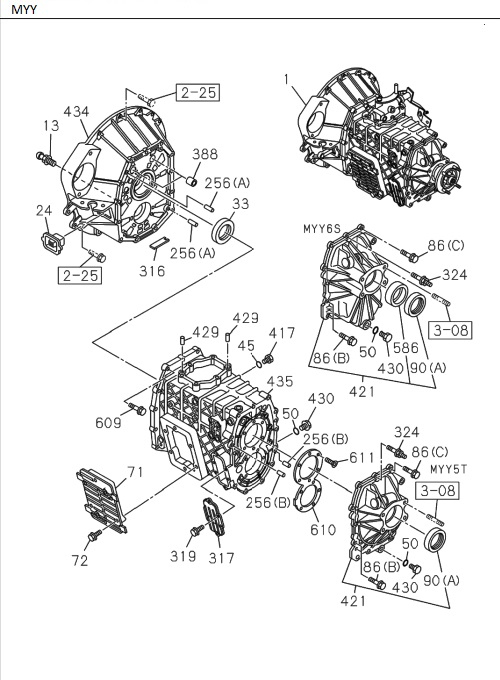

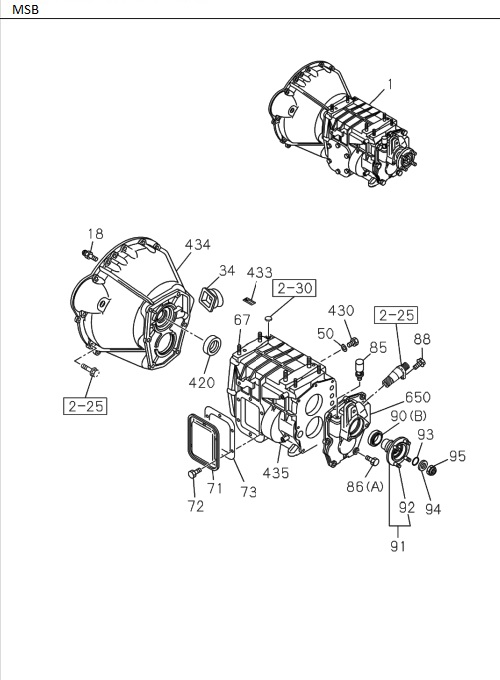

2-20 | MANUAL TANSMISSION ASM AND CASE
ELF
NLR55 NMR71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 94 | I8-98189 951-0 | WASHER, COUPLING DRIVER | 1 | 1512- | MSB5M | |||
| 50 | I8-97115 712-0 | GASKET, DRAIN PLUG | 2 | 1512- | MYY6S | ID=17 | ||
| 388 | I8-97241 326-2 | BUSHING, CLU HSG | 2 | 1512- | MYY6S | |||
| 50 | I8-98189 969-0 | GASKET, DRAIN PLUG | 1 | 1512- | MSB5M | ID=15.5 | ||
| 611 | I8-97365 354-0 | SCREW | 11 | 1512- | MYY5T | M10X27 | ||
| 33 | I8-97253 550-0 | SEAL, OIL, FRT COVER, T/M | 1 | 1512- | MYY5T | |||
| 90 | I8-97253 552-1 | SEAL, OIL, RR COVER | 1 | 1512- | MYY6S | NOK | ||
| 73 | I8-98189 272-0 | GASKET, SIDE COVER TO TRANS CASE | 1 | 1512- | MSB5S | |||
| 319 | I0-28050 820-0 | BOLT, COVER | 6 | 1512- | MYY5T | M8X20 | ||
| 1 | I8-97373 583-A | TRANSMISSION ASM, MANUAL | 1 | 1512- | MSB5M | |||
| 417 | I8-97365 373-0 | PLUG, OIL FILLER, TRANS | 1 | 1512- | MYY5T | |||
| 435 | I8-97379 374-0 | CASE, TRANS | 1 | 1512- | MYY6S | |||
| 317 | I8-97252 626-0 | COVER, CASE | 1 | 1512- | MYY5T | |||
| 86 | I0-28050 825-0 | BOLT, RR COVER | 7 | 1512- | MSB5S | (A) M8X25 | ||
| 73 | I8-98189 272-0 | GASKET, SIDE COVER TO TRANS CASE | 1 | 1512- | MSB5M | |||
| 92 | I8-98189 989-0 | BOLT, COUPLING DRIVER | 4 | 1512- | MSB5S | M10X33 | ||
| 24 | I8-97255 201-0 | COVER, CHECK HOLE, DUST | 1 | 1512- | MYY6S | |||
| 1 | I8-97499 680-0 | TRANSMISSION ASM, MANUAL | 1 | 1807- | MYY6S | 4HL-TC | ||
| 90 | I6-97253 552-0 | SEAL, OIL, RR COVER | 1 | 1512- | MYY5T | (IADG) NOK | ||
| 434 | I8-97237 099-6 | HOUSING, CLU | 1 | 1512- | MYY6S | |||
| 90 | I8-97253 552-1 | SEAL, OIL, RR COVER | 1 | 1512- | MYY5T | NOK | ||
| 72 | I8-98014 142-0 | BOLT, SIDE COVER | 6 | 1512- | MYY6S | M10X20 | ||
| 609 | I0-28151 040-0 | BOLT, HSG TO CASE | 13 | 1512- | MYY6S | M10X40 | ||
| 86 | I8-97365 377-0 | BOLT, RR COVER | 2 | 1512- | MYY6S | (B) M10X40 | ||
| 430 | I8-98190 379-0 | PLUG, OIL DRAIN | 1 | 1512- | MSB5M | |||
| 91 | I8-98190 298-0 | DRIVER, COUPLING | 1 | 1512- | MSB5S | |||
| 34 | I8-98190 416-0 | COVER, DUST, SHIFT FORK | 1 | 1512- | MSB5S | |||
| 610 | I8-97241 315-1 | RETAINER, BRG | 1 | 1512- | MYY5T | |||
| 71 | I8-98189 244-0 | COVER, SIDE, TRANS CASE | 1 | 1512- | MSB5M | |||
| 86 | I0-28151 040-0 | BOLT, RR COVER | 9 | 1512- | MYY6S | (C) M10X40 | ||
| 316 | I8-94249 524-2 | MAGNET, TRANS CASE | 1 | 1512- | MYY5T | |||
| 13 | I8-97255 385-1 | SUPPORT, SHIFT FORK | 1 | 1807- | MYY6S | 4HL-TC | ||
| 317 | I8-97252 626-0 | COVER, CASE | 1 | 1512- | MYY6S | |||
| 67 | I8-98189 390-0 | STUD, CASE TRANS | 6 | 1512- | MSB5S | |||
| 67 | I8-98189 390-0 | STUD, CASE TRANS | 6 | 1512- | MSB5M | |||
| 435 | I8-97373 564-0 | CASE, TRANS | 1 | 1512- | MSB5M | |||
| 33 | I6-97253 550-0 | SEAL, OIL, FRT COVER, T/M | 1 | 1512- | MYY6S | (IADG) | ||
| 430 | I8-97365 374-0 | PLUG, OIL DRAIN | 2 | 1512- | MYY6S | |||
| 45 | I8-97115 712-0 | GASKET, FILLER PLUG | 1 | 1512- | MYY5T | ID= 17 | ||
| 86 | I0-28050 825-0 | BOLT, RR COVER | 7 | 1512- | MSB5M | (A) M8X25 | ||
| 72 | I8-98014 142-0 | BOLT, SIDE COVER | 6 | 1512- | MYY5T | M10X20 | ||
| 610 | I8-97241 315-1 | RETAINER, BRG | 1 | 1512- | MYY6S | |||
| 417 | I8-97365 373-0 | PLUG, OIL FILLER, TRANS | 1 | 1512- | MYY6S | |||
| 85 | I8-98189 454-0 | BREATHER, RR COVER | 1 | 1512- | MSB5M | |||
| 1 | I8-98203 862-0 | TRANSMISSION ASM, MANUAL | 1 | 1512- | MSB5S | |||
| 420 | I8-98189 424-0 | SEAL, OIL, FRT COVER, T/M | 1 | 1512- | MSB5M | NOK | ||
| 71 | I8-98189 244-0 | COVER, SIDE, TRANS CASE | 1 | 1512- | MSB5S | |||
| 650 | I8-97174 087-0 | COVER, RR | 1 | 1512- | MSB5M | |||
| 90 | I6-98189 443-0 | SEAL, OIL, RR COVER | 1 | 1512- | MSB5S | (IADG) NOK | ||
| 13 | I8-97255 384-1 | SUPPORT, SHIFT FORK | 1 | 1512- | MYY6S | 4HG1-T | ||
| 34 | I8-98190 416-0 | COVER, DUST, SHIFT FORK | 1 | 1512- | MSB5M | |||
| 1 | I8-98187 415-0 | TRANSMISSION ASM, MANUAL | 1 | 1512- | MYY5T | |||
| 71 | I8-97252 625-0 | COVER, SIDE, TRANS CASE | 1 | 1512- | MYY5T | |||
| 50 | I8-98189 969-0 | GASKET, DRAIN PLUG | 1 | 1512- | MSB5S | ID=15.5 | ||
| 33 | I6-97253 550-0 | SEAL, OIL, FRT COVER, T/M | 1 | 1512- | MYY5T | (IADG) | ||
| 93 | I8-98189 967-0 | GASKET, COUPLING DRIVER | 1 | 1512- | MSB5M | |||
| 434 | I8-97204 108-0 | HOUSING, CLU | 1 | 1512- | MSB5S | |||
| 86 | I8-97365 377-0 | BOLT, RR COVER | 2 | 1512- | MYY5T | (B) M10X40 | ||
| 611 | I8-97365 354-0 | SCREW | 11 | 1512- | MYY6S | M10X27 | ||
| 324 | I8-97365 379-0 | STUD, RR COVER | 1 | 1512- | MYY5T | M10X15,M10X40 L=65 | ||
| 1 | I8-98299 756-0 | TRANSMISSION ASM, MANUAL | 1 | 1512- | MYY6S | 4HG1-T | ||
| 72 | I0-28051 012-0 | BOLT, SIDE COVER | 6 | 1512- | MSB5M | M10X12 | ||
| 45 | I8-97115 712-0 | GASKET, FILLER PLUG | 1 | 1512- | MYY6S | ID= 17 | ||
| 256 | I9-08160 612-0 | PIN, KNOCK | 2 | 1512- | MYY5T | (B) ID=6 L=12 | ||
| 94 | I8-98189 951-0 | WASHER, COUPLING DRIVER | 1 | 1512- | MSB5S | |||
| 1 | I8-98203 863-0 | TRANSMISSION ASM, MANUAL | 1 | 1512- | MSB5S | |||
| 256 | I8-97135 423-0 | PIN, KNOCK | 2 | 1512- | MYY6S | (A) OD=10 L=20 | ||
| 388 | I8-97241 326-2 | BUSHING, CLU HSG | 2 | 1512- | MYY5T | |||
| 13 | I8-97255 384-1 | SUPPORT, SHIFT FORK | 1 | 1512- | MYY5T | |||
| 420 | I8-98189 424-0 | SEAL, OIL, FRT COVER, T/M | 1 | 1512- | MSB5S | NOK | ||
| 435 | I8-97379 375-0 | CASE, TRANS | 1 | 1512- | MYY5T | |||
| 90 | I8-98189 443-0 | SEAL, OIL, RR COVER | 1 | 1512- | MSB5M | NOK | ||
| 433 | I8-98189 385-0 | LABEL, TRANS | 1 | 1512- | MSB5M | |||
| 93 | I8-98189 967-0 | GASKET, COUPLING DRIVER | 1 | 1512- | MSB5S | |||
| 24 | I8-97255 201-0 | COVER, CHECK HOLE, DUST | 1 | 1512- | MYY5T | |||
| 71 | I8-97252 625-0 | COVER, SIDE, TRANS CASE | 1 | 1512- | MYY6S | |||
| 88 | I0-28050 812-A | SCREW, SPEEDOMETER BUSHING | 1 | 1512- | MSB5S | M8X12 | ||
| 90 | I6-98189 443-0 | SEAL, OIL, RR COVER | 1 | 1512- | MSB5M | (IADG) NOK | ||
| 319 | I0-28050 820-0 | BOLT, COVER | 6 | 1512- | MYY6S | M8X20 | ||
| 18 | I8-98189 389-0 | SUPPORT, DRAW LEVER | 1 | 1512- | MSB5M | L=47.5 | ||
| 92 | I8-98189 989-0 | BOLT, COUPLING DRIVER | 4 | 1512- | MSB5M | M10X33 | ||
| 256 | I8-97135 423-0 | PIN, KNOCK | 2 | 1512- | MYY5T | (A) OD=10 L=20 | ||
| 85 | I8-98189 454-0 | BREATHER, RR COVER | 1 | 1512- | MSB5S | |||
| 50 | I8-97115 712-0 | GASKET, DRAIN PLUG | 1 | 1512- | MYY5T | ID=17 | ||
| 18 | I8-98189 389-0 | SUPPORT, DRAW LEVER | 1 | 1512- | MSB5S | L=47.5 | ||
| 430 | I8-98190 379-0 | PLUG, OIL DRAIN | 1 | 1512- | MSB5S | |||
| 33 | I8-97253 550-0 | SEAL, OIL, FRT COVER, T/M | 1 | 1512- | MYY6S | |||
| 421 | I8-98020 029-0 | COVER, RR, TRANS | 1 | 1512- | MYY5T | |||
| 91 | I8-98190 298-0 | DRIVER, COUPLING | 1 | 1512- | MSB5M | |||
| 256 | I9-08160 612-0 | PIN, KNOCK | 2 | 1512- | MYY6S | (B) ID=6 L=12 | ||
| 434 | I8-97237 099-6 | HOUSING, CLU | 1 | 1512- | MYY5T | |||
| 316 | I8-94249 524-2 | MAGNET, TRANS CASE | 1 | 1512- | MYY6S | |||
| 90 | I6-97253 552-0 | SEAL, OIL, RR COVER | 1 | 1512- | MYY6S | (IADG) NOK | ||
| 434 | I8-97204 108-0 | HOUSING, CLU | 1 | 1512- | MSB5M | |||
| 421 | I8-98020 028-0 | COVER, RR, TRANS | 1 | 1512- | MYY6S | |||
| 430 | I8-97365 374-0 | PLUG, OIL DRAIN | 1 | 1512- | MYY5T | |||
| 88 | I0-28050 812-A | SCREW, SPEEDOMETER BUSHING | 1 | 1512- | MSB5M | M8X12 | ||
| 433 | I8-98189 384-0 | LABEL, TRANS | 1 | 1512- | MSB5S | |||
| 429 | I8-97135 423-0 | PIN, STRAIGHT | 2 | 1512- | MYY5T | OD=10 L=20 | ||
| 72 | I0-28051 012-0 | BOLT, SIDE COVER | 6 | 1512- | MSB5S | M10X12 | ||
| 324 | I8-97365 379-0 | STUD, RR COVER | 2 | 1512- | MYY6S | M10X15,M10X40 L=65 | ||
| 650 | I8-97174 087-0 | COVER, RR | 1 | 1512- | MSB5S | |||
| 90 | I8-98189 443-0 | SEAL, OIL, RR COVER | 1 | 1512- | MSB5S | NOK | ||
| 86 | I0-28151 040-0 | BOLT, RR COVER | 10 | 1512- | MYY5T | (C) M10X40 | ||
| 435 | I8-97373 564-0 | CASE, TRANS | 1 | 1512- | MSB5S | |||
| 586 | I8-97253 109-0 | BEARING, NEEDLE | 1 | 1512- | MYY6S | |||
| 429 | I8-97135 423-0 | PIN, STRAIGHT | 2 | 1512- | MYY6S | OD=10 L=20 | ||
| 609 | I0-28151 040-0 | BOLT, HSG TO CASE | 13 | 1512- | MYY5T | M10X40 | ||
| 95 | I8-98189 932-0 | NUT, MAINSHAFT | 1 | 1512- | MSB5M | M24 | ||
| 95 | I8-98189 932-0 | NUT, MAINSHAFT | 1 | 1512- | MSB5S | M24 |
