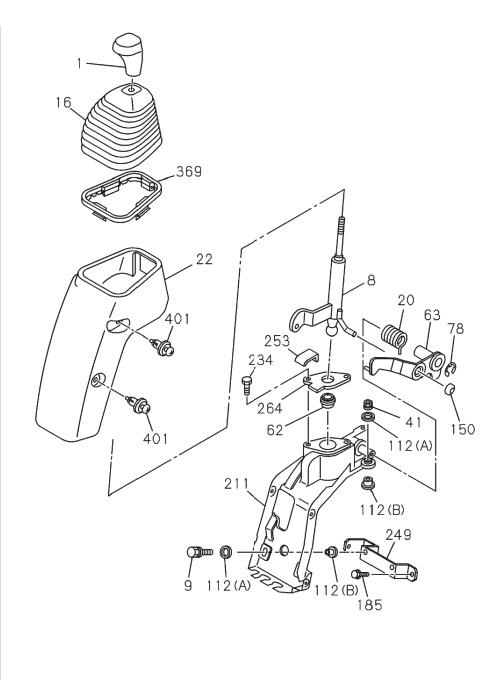

2-35 | MANUAL TRANSMISSION SHIFT CONTROL LEVER
ELF
NLR55 NMR71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 16 | I8-98035 063-0 | BOOT, CHANGE LEVER | 1 | 1512- | ALL | |||
| 112 | I8-97091 427-0 | RUBBER, CUSHION | 4 | 1512- | ALL | (B) | ||
| 63 | I8-97143 199-0 | LEVER, RELAY, SELECT | 1 | 1512- | MYY5T | |||
| 8 | I8-97204 506-0 | LEVER, CHANGE | 1 | 1512- | MSB5M | |||
| 112 | I8-97091 426-0 | RUBBER, CUSHION | 4 | 1512- | ALL | (A) | ||
| 185 | I0-28650 820-0 | BOLT, BRKT, COVER | 2 | 1512- | ALL | M8X20 | ||
| 1 | I8-97196 287-1 | KNOB, CHANGE LEVER | 1 | 1512- | MYY6S | |||
| 63 | I8-97163 768-0 | LEVER, RELAY, SELECT | 1 | 1512- | MYY6S | |||
| 1 | I8-97196 286-1 | KNOB, CHANGE LEVER | 1 | 1512- | MYY5T | |||
| 62 | I8-97011 895-1 | SEAT, BALL, CHANGE LEVER | 1 | 1512- | ALL | |||
| 211 | I8-97204 505-1 | BRACKET, CHANGE LEVER | 1 | 1512- | ALL | |||
| 253 | I8-97204 510-0 | STOPPER, CHANGE LEVER | 1 | 1512- | ALL | |||
| 20 | I8-97204 514-1 | SPRING, CHANGE LEVER | 1 | 1512- | ALL | |||
| 150 | I8-97049 147-0 | BALL, DETENT, CONT LEVER | 1 | 1512- | ALL | |||
| 8 | I8-97204 507-0 | LEVER, CHANGE | 1 | 1512- | MYY6S | |||
| 401 | I8-97406 179-0 | CLIP, COVER | 4 | 1512- | ALL | |||
| 78 | I0-91805 510-0 | RING, SNAP, CHANGE LEVER | 1 | 1512- | ALL | ID= 10 | ||
| 234 | I1-33739 842-0 | BOLT, BRKT | 2 | 1512- | ALL | M6X12 | ||
| 41 | I8-97329 625-0 | NUT, CHANGE LEVER | 2 | 1512- | ALL | M8 | ||
| 63 | I8-97143 199-0 | LEVER, RELAY, SELECT | 1 | 1512- | MSB5M | |||
| 1 | I8-97196 285-1 | KNOB, CHANGE LEVER | 1 | 1512- | MSB5M | |||
| 8 | I8-97204 506-0 | LEVER, CHANGE | 1 | 1512- | MYY5T | |||
| 9 | I0-50640 828-0 | BOLT, CHANGE LEVER | 2 | 1512- | ALL | M8X28 W/LK&PL WASHER | ||
| 63 | I8-97143 199-0 | LEVER, RELAY, SELECT | 1 | 1512- | MSB5S | |||
| 1 | I8-97196 285-1 | KNOB, CHANGE LEVER | 1 | 1512- | MSB5S | |||
| 369 | I8-98032 213-1 | RETAINER, REINF | 1 | 1512- | ALL | |||
| 8 | I8-97204 506-0 | LEVER, CHANGE | 1 | 1512- | MSB5S | |||
| 264 | I8-97204 511-0 | PLATE, COVER | 1 | 1512- | ALL | |||
| 22 | I8-97408 726-1 | COVER, DUST, CHANGE LEVER | 1 | 1512- | ALL | |||
| 249 | I8-97387 767-0 | BRACKET, COVER | 1 | 1512- | ALL |
