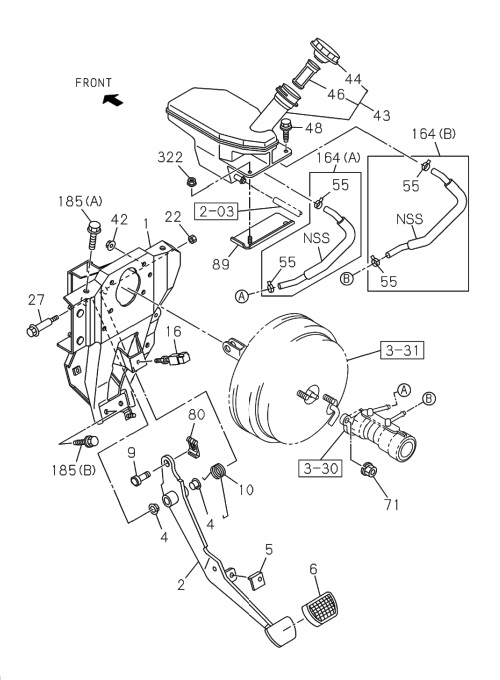

3-10 | BRAKE PEDAL AND CONTROL
ELF
NLR55 NMR71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-98003 148-6 | BRACKET ASM; PEDAL | 1 | 1512- | ALL | |||
| 185 | I0-28661 025-0 | BOLT BRKT | 2 | 1512- | ALL | (A) M10X25 | ||
| 185 | I8-97313 188-0 | BOLT BRKT | 2 | 1512- | ALL | (B) M10X22 | ||
| 80 | I8-98007 161-0 | PIN; SNAP, BRK PEDAL | 1 | 1512- | ALL | |||
| 44 | I8-98022 268-0 | CAP , OIL TANK | 1 | 1512- | ALL | |||
| 71 | I8-94279 050-0 | NUT, BRK M/CYL | 2 | 1512- | ALL | M8 | ||
| 55 | I8-98168 080-0 | CLIP; RUBBER HOSE | 4 | 1512- | ALL | |||
| 27 | I8-97866 667-0 | SHAFT; BRK PEDAL | 1 | 1512- | ALL | |||
| 10 | I8-97853 212-1 | SPRING; RETURN, BRK PEDAL | 1 | 1512- | ALL | |||
| 43 | I8-97387 217-3 | TANK ASM , OIL | 1 | 1512- | ALL | |||
| 4 | I8-94238 596-0 | BUSHING; BRK PEDAL | 2 | 1512- | ALL | |||
| 48 | I8-97370 668-0 | BOLT; OIL TANK TO BRKT | 1 | 1512- | ALL | M6X20 | ||
| 55 | I8-98168 080-0 | CLIP, RUBBER HOSE | 4 | 1512- | ALL | |||
| 6 | I8-97853 413-2 | COVER; BRK PEDAL | 1 | 1512- | ALL | |||
| 22 | I0-91380 010-0 | NUT; SHAFT | 1 | 1512- | ALL | M10 LOCK NUT | ||
| 9 | I8-98147 657-0 | PIN, JAW JOINT | 1 | 1512- | ALL | |||
| 4 | I8-94238 596-0 | BUSHING, BRK PEDAL | 2 | 1512- | ALL | |||
| 89 | I8-98014 337-1 | BRACKET, M/CYL | 1 | 1512- | ALL | |||
| 322 | I0-91180 106-0 | NUT; OIL TANK | 1 | 1512- | ALL | M6 | ||
| 185 | I0-28661 025-0 | BOLT BRKT | 2 | 1512- | ALL | (A) M10X25 | ||
| 22 | I0-91380 010-0 | NUT, SHAFT | 1 | 1512- | ALL | M10 LOCK NUT | ||
| 1 | I8-98003 148-5 | BRACKET ASM, PEDAL | 1 | 1512- | ALL | |||
| 80 | I8-98007 161-0 | PIN, SNAP, BRK PEDAL | 1 | 1512- | ALL | |||
| 185 | I8-97313 188-0 | BOLT BRKT | 2 | 1512- | ALL | (B) M10X22 | ||
| 27 | I8-97866 667-0 | SHAFT, BRK PEDAL | 1 | 1512- | ALL | |||
| 5 | I8-97302 305-0 | STOPPER, BRK PEDAL | 1 | 1512- | ALL | |||
| 71 | I8-94279 050-0 | NUT; BRK M/CYL | 2 | 1512- | ALL | M8 | ||
| 16 | I8-98000 028-0 | SWITCH; STOP LAMP | 1 | 1512- | ALL | |||
| 164 | I8-98167 344-2 | HOSE, RUBBER, OIL TAN | 1 | 1512- | ALL | (A) | ||
| 2 | I8-98003 156-0 | PEDAL; BRK | 2 | 1512- | ALL | |||
| 5 | I8-97302 305-0 | STOPPER; BRK PEDAL | 1 | 1512- | ALL | |||
| 42 | I8-94279 050-0 | NUT; BRK PEDAL | 4 | 1512- | ALL | M8 | ||
| 89 | I8-98014 337-1 | BRACKET; M/CYL | 1 | 1512- | ALL | |||
| 164 | I8-98167 345-2 | HOSE, RUBBER, OIL TAN | 1 | 1512- | ALL | (B) | ||
| 2 | I8-98003 156-0 | PEDAL, BRK | 2 | 1512- | ALL | |||
| 48 | I8-97370 668-0 | BOLT, OIL TANK TO BRKT | 1 | 1512- | ALL | M6X20 | ||
| 9 | I8-98147 657-0 | PIN; JAW JOINT | 1 | 1512- | ALL | |||
| 46 | I8-98022 269-0 | FILTER; RESERVOIR, BRK | 1 | 1512- | ALL | |||
| 6 | I8-97853 413-2 | COVER, BRK PEDAL | 1 | 1512- | ALL | |||
| 42 | I8-94279 050-0 | NUT, BRK PEDAL | 4 | 1512- | ALL | M8 | ||
| 10 | I8-97853 212-1 | SPRING, RETURN, BRK PEDAL | 1 | 1512- | ALL | |||
| 164 | I8-98167 344-2 | HOSE; RUBBER, OIL TAN | 1 | 1512- | ALL | (A) | ||
| 46 | I8-98022 269-0 | FILTER, RESERVOIR, BRK | 1 | 1512- | ALL | |||
| 322 | I0-91180 106-0 | NUT, OIL TANK | 1 | 1512- | ALL | M6 | ||
| 16 | I8-98000 028-0 | SWITCH, STOP LAMP | 1 | 1512- | ALL | |||
| 44 | I8-98022 268-0 | CAP ; OIL TANK | 1 | 1512- | ALL | |||
| 43 | I8-97387 217-3 | TANK ASM ; OIL | 1 | 1512- | ALL | |||
| 164 | I8-98167 345-2 | HOSE; RUBBER, OIL TAN | 1 | 1512- | ALL | (B) |
