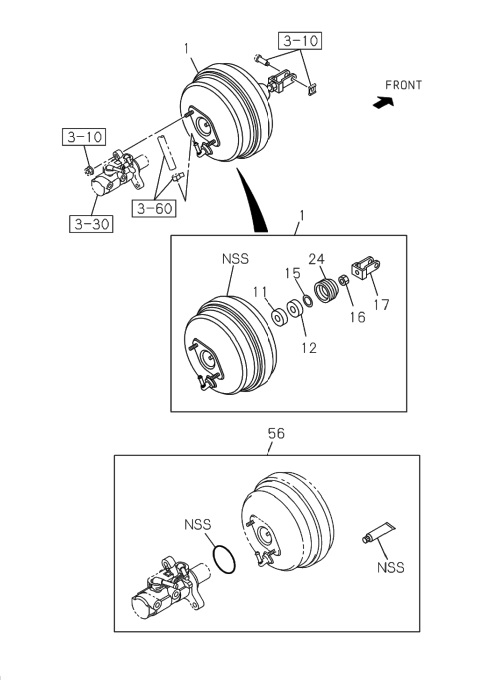

3-31 | BRAKE MASTER VAC AND BRAKE BOOSTER
ELF
NLR55 NMR71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 17 | I8-97224 610-0 | CLEVIS, YOKE, M/VAC | 1 | 1512- | ALL | |||
| 15 | I8-94375 083-0 | RETAINER, GUARD, M/VAC | 1 | 1512- | ALL | |||
| 16 | I1-52139 008-0 | NUT, VLV ROD, M/VAC | 1 | 1512- | ALL | M10 | ||
| 56 | I8-98184 424-0 | GASKET KIT, M/CYL TO SERVO UNIT | 1 | 1512- | ALL | W/GREASE | ||
| 24 | I8-98184 421-0 | GUARD, VLV BODY, M/VAC | 1 | 1512- | ALL | |||
| 12 | I8-97205 577-0 | SILENCER, M/VAC | 1 | 1512- | ALL | |||
| 1 | I8-98234 822-0 | MASTER VAC ASM, BRK | 1 | 1512- | ALL | |||
| 11 | I8-97205 576-0 | FILTER, M/VAC | 1 | 1512- | ALL |
