| 86 |
I8-97047 294-0 |
|
WASHER, PL, DIFF CAGE SETTING |
12 |
1512- |
|
NMR71 |
ID=12.5 OD=22 T=2, RR AXLE HD 320MM |
| 51 |
I9-41219 618-0 |
|
SHIM; PINION, FINAL DRIVE |
1 |
1512- |
|
NLR |
OD=89.5 T=2.32 |
| 60 |
I8-97209 168-0 |
|
GEAR SET; FINAL DRIVE, RR |
1 |
1512- |
|
NMR71 |
39/6; RR AXLE HD 320MM |
| 84 |
I1-09070 085-0 |
|
BOLT; FINAL DRIVE GEAR |
16 |
1512- |
|
NMR71 |
M14X29.5; RR AXLE HD 343MM |
| 24 |
I8-98359 568-0 |
|
GEAR; PINION, DIFF |
4 |
1512- |
|
NMR |
Z=10 |
| 82 |
I1-41521 035-2 |
|
SPIDER; DIFF PINION |
1 |
1512- |
|
NMR71 |
|
| 1 |
I8-98065 942-0 |
|
DRIVE ASM; FINAL, RR |
1 |
1512- |
|
NMR71 |
(D) 43/8; RR AXLE HD 320MM |
| 17 |
I8-97314 497-0 |
|
BOLT; DIFF CAGE SETTING |
8 |
1512- |
|
NLR |
(C) M12X58; NLR55-T ; NLR55-B |
| 71 |
I8-98015 182-0 |
|
CAGE ASM, DIFF, FINAL DRIVE |
1 |
1512- |
|
NLR |
NLR55-Tx/TLx , NLR55-Bx/BLx , NLR71-T/TL/BL, (41/8) (41/7) |
| 63 |
I1-09810 062-A |
|
BEARING; PINION PILOT |
1 |
1512- |
|
NMR71 |
(IADG) RR AXLE HD 343MM |
| 60 |
I1-41210 530-0 |
|
GEAR SET; FINAL DRIVE, RR |
1 |
1807- |
|
NMR81 |
41/7; RR AXLE HD 343MM |
| 49 |
I8-94401 337-0 |
|
SHIM; FINAL PINION CAGE |
AR |
1512- |
|
NLR |
ID=132 T=0.14; NLR55-Tx/TLx ; NLR55-Bx/BLx ; NLR71-T/TL/BL |
| 44 |
I1-09623 379-0 |
|
GASKET; PINION CAGE |
1 |
1512- |
|
NMR |
ID=35.7 T=5; RR AXLE HD 343MM |
| 21 |
I6-98165 935-0 |
|
GEAR; SIDE, DIFF |
2 |
1512- |
|
NMR71 |
(IADG) Z=16; RR AXLE HD 320MM |
| 84 |
I9-09606 505-2 |
|
BOLT, FINAL DRIVE GEAR |
12 |
1512- |
|
NLR |
M12X25, NLR55-T , NLR55-B |
| 85 |
I1-09400 077-1 |
|
NUT; DIFF CAGE SETTING |
8 |
1807- |
|
NMR81 |
M14 |
| 63 |
I8-97047 296-0 |
|
BEARING; PINION PILOT |
1 |
1512- |
|
NMR71 |
RR AXLE HD 320MM |
| 70 |
I9-00093 130-A |
|
BEARING, DIFF CAGE |
2 |
1512- |
|
NMR |
(IADG) ID=66.7 OD=113 T=30 |
| 43 |
I8-94400 890-0 |
|
CAGE; FINAL PINION |
1 |
1512- |
|
NLR |
NLR55-Tx/TLx ; NLR55-Bx/BLx ; NLR71-T/TL/BL |
| 309 |
I0-91510 512-0 |
|
WASHER; FINAL DRIVE PINION |
6 |
1512- |
|
NMR71 |
ID=12.2; RR AXLE HD 343MM |
| 21 |
I8-98359 566-0 |
|
GEAR; SIDE, DIFF |
2 |
1512- |
|
NMR71 |
Z=16; RR AXLE HD 343MM |
| 83 |
I8-98219 707-0 |
|
CAGE ASM; DIFF |
1 |
1512- |
|
NMR71 |
RR AXLE HD 320MM |
| 100 |
I6-09625 484-0 |
|
SEAL, OIL, FINAL PINION |
1 |
1512- |
|
NMR71 |
OD=103, (IADG) |
| 73 |
I9-41519 010-0 |
|
SHIM, DIFF SIDE BRG |
AR |
1512- |
|
NLR |
NLR55-T, NLR55-B, T=0.25 |
| 60 |
I6-41210 536-0 |
|
GEAR SET; FINAL DRIVE, RR |
1 |
1807- |
|
NMR81 |
(IADG) 39/6; RR AXLE HD 343MM |
| 1 |
I8-97094 685-0 |
|
DRIVE ASM; FINAL, RR |
1 |
1512- |
|
NMR71 |
(D) 41/6; RR AXLE HD 320MM |
| 83 |
I8-98219 707-0 |
|
CAGE ASM, DIFF |
1 |
1512- |
|
NMR71 |
RR AXLE HD 320MM |
| 60 |
I8-98092 031-1 |
|
GEAR SET; FINAL DRIVE, RR |
1 |
1512- |
|
NLR |
41/7; RR AXLE HD 292MM |
| 84 |
I1-09070 085-0 |
|
BOLT, FINAL DRIVE GEAR |
16 |
1807- |
|
NMR81 |
M14X29.5 |
| 161 |
I0-91510 612-0 |
|
WASHER, LK |
8 |
1512- |
|
NLR |
ID=12.2, NLR55-T , NLR55-B |
| 20 |
I6-41562 073-0 |
|
WASHER; THRUST, SIDE GEAR |
AR |
1512- |
|
NMR |
(IADG) T=2.80 |
| 49 |
I8-94401 336-0 |
|
SHIM; FINAL PINION CAGE |
AR |
1512- |
|
NLR |
ID=132 T=0.12; NLR55-Tx/TLx ; NLR55-Bx/BLx ; NLR71-T/TL/BL |
| 84 |
I8-97318 938-1 |
|
BOLT; FINAL DRIVE GEAR |
12 |
1512- |
|
NLR |
M14X25; NLR55-Tx/TLx ; NLR55-Bx/BLx ; NLR71-T/TL/BL |
| 49 |
I1-41154 052-1 |
|
SHIM, FINAL PINION CAGE |
AR |
1512- |
|
NMR71 |
T=0.40, RR AXLE HD 343MM |
| 24 |
I6-98359 568-0 |
|
GEAR; PINION, DIFF |
4 |
1512- |
|
NMR |
(IADG) Z=10 |
| 60 |
I1-41210 531-0 |
|
GEAR SET; FINAL DRIVE, RR |
1 |
1512- |
|
NMR71 |
43/7; RR AXLE HD 343MM |
| 17 |
I8-98219 448-0 |
|
BOLT; DIFF CAGE SETTING |
12 |
1512- |
|
NMR71 |
(B) M12X90; RR AXLE HD 320MM |
| 100 |
I8-94408 083-0 |
|
SEAL, OIL, FINAL PINION |
1 |
1512- |
|
NLR |
OD=103, NLR55-Tx/TLx , NLR55-Bx/BLx , NLR71-T/TL/BL |
| 7 |
I8-97073 802-2 |
|
FLANGE; FINAL |
1 |
1512- |
|
NMR71 |
RR AXLE HD 320MM |
| 20 |
I1-41562 077-0 |
|
WASHER; THRUST, SIDE GEAR |
AR |
1512- |
|
NMR |
T=3.20 |
| 131 |
I5-41525 002-0 |
|
PIECE; THRUST, DIFF BOX |
1 |
1512- |
|
NLR |
NLR55-T ; NLR55-B |
| 1 |
I8-98015 135-0 |
|
DRIVE ASM, FINAL, RR |
1 |
1512- |
|
NLR |
(A) 41/10 |
| 20 |
I9-41562 601-0 |
|
WASHER; THRUST, SIDE GEAR |
2 |
1512- |
|
NLR |
T=1.40; NLR55-Tx/TLx ; NLR55-Bx/BLx ; NLR71-T/TL/BL |
| 60 |
I6-97083 126-0 |
|
GEAR SET; FINAL DRIVE, RR |
1 |
1512- |
|
NMR71 |
(IADG) 41/7; RR AXLE HD 320MM |
| 71 |
I8-97047 100-4 |
|
CAGE ASM; DIFF, FINAL DRIVE |
1 |
1512- |
|
NMR71 |
RR AXLE HD320MM |
| 62 |
I1-09042 046-0 |
|
BOLT; RET |
2 |
1807- |
|
NMR81 |
M8X35 W/PIN HOLE |
| 85 |
I8-97065 214-0 |
|
NUT; DIFF CAGE SETTING |
12 |
1512- |
|
NMR71 |
M12; RR AXLE HD 320MM |
| 64 |
I0-91180 106-0 |
|
NUT; RET |
2 |
1512- |
|
NMR71 |
M6 FLANGE; RR AXLE HD 320MM |
| 49 |
I7-55223 933-0 |
|
SHIM; FINAL PINION CAGE |
AR |
1512- |
|
NMR71 |
T=0.40; RR AXLE HD 343MM |
| 71 |
I8-97047 100-4 |
|
CAGE ASM, DIFF, FINAL DRIVE |
1 |
1512- |
|
NMR71 |
RR AXLE HD320MM |
| 309 |
I0-91510 512-0 |
|
WASHER, FINAL DRIVE PINION |
6 |
1512- |
|
NMR71 |
ID=12.2, RR AXLE HD 343MM |
| 60 |
I1-41210 531-0 |
|
GEAR SET; FINAL DRIVE, RR |
1 |
1807- |
|
NMR81 |
43/7; RR AXLE HD 343MM |
| 73 |
I9-41519 601-0 |
|
SHIM, DIFF SIDE BRG |
AR |
1512- |
|
NLR |
NLR55-T, NLR55-B, T=0.30 |
| 71 |
I8-98191 997-1 |
|
CAGE ASM, DIFF, FINAL DRIVE |
1 |
1512- |
|
NLR |
NLR55-T, NLR55-B |
| 71 |
I1-41510 298-0 |
|
CAGE ASM; DIFF, FINAL DRIVE |
1 |
1807- |
|
NMR81 |
|
| 49 |
I8-94401 338-0 |
|
SHIM; FINAL PINION CAGE |
AR |
1512- |
|
NLR |
ID=132 T=0.16; NLR55-Tx/TLx ; NLR55-Bx/BLx ; NLR71-T/TL/BL |
| 60 |
I8-98092 052-0 |
|
GEAR SET; FINAL DRIVE, RR |
1 |
1512- |
|
NLR |
43/10; RR AXLE HD 292MM |
| 1 |
I8-98015 137-0 |
|
DRIVE ASM; FINAL, RR |
1 |
1512- |
|
NLR |
(C) 41/9; RR AXLE HD 292MM |
| 17 |
I8-97232 161-0 |
|
BOLT; DIFF CAGE SETTING |
12 |
1512- |
|
NLR |
(C) M10X75; NLR55-Tx/TLx ; NLR55-Bx/BLx ; NLR71-T/TL/BL |
| 88 |
I8-97087 821-0 |
|
PLATE, LK, ADJ NUT |
AR |
1512- |
|
NMR71 |
(D) T=2.3, RR AXLE HD 320MM |
| 49 |
I7-55223 931-0 |
|
SHIM; FINAL PINION CAGE |
AR |
1512- |
|
NMR71 |
T=0.50; RR AXLE HD 343MM |
| 66 |
I1-09588 065-2 |
|
RING; SNAP,PILOT BRG |
1 |
1807- |
|
NMR81 |
OD=32.2 |
| 60 |
I6-41210 531-0 |
|
GEAR SET; FINAL DRIVE, RR |
1 |
1807- |
|
NMR81 |
(IADG) 43/7; RR AXLE HD 343MM |
| 60 |
I1-41210 530-0 |
|
GEAR SET; FINAL DRIVE, RR |
1 |
1512- |
|
NMR71 |
41/7; RR AXLE HD 343MM |
| 71 |
I8-98015 182-0 |
|
CAGE ASM; DIFF, FINAL DRIVE |
1 |
1512- |
|
NLR |
NLR55-Tx/TLx ; NLR55-Bx/BLx ; NLR71-T/TL/BL; (41/8) (41/7) |
| 49 |
I8-97047 300-0 |
|
SHIM; FINAL PINION CAGE |
AR |
1512- |
|
NMR71 |
ID=142 T=0.20; RR AXLE HD 320MM |
| 20 |
I6-41562 078-0 |
|
WASHER; THRUST, SIDE GEAR |
AR |
1512- |
|
NMR |
(IADG) T=3.30 |
| 37 |
I1-09449 066-1 |
|
NUT; DRIVING PINION |
1 |
1512- |
|
NMR71 |
M30 FLANGE; RR AXLE HD 343MM |
| 42 |
I9-41219 634-1 |
|
COLLAR; DIST, COLLAPSIBLE |
1 |
1512- |
|
NLR |
L=53.35; NLR55-T ; NLR55-B |
| 1 |
I8-98015 142-0 |
|
DRIVE ASM, FINAL, RR |
1 |
1512- |
|
NLR |
(A) 41/7 |
| 24 |
I8-98015 202-0 |
|
GEAR; PINION, DIFF |
4 |
1512- |
|
NLR |
Z=10; NLR55-Tx/TLx ; NLR55-Bx/BLx ; NLR71-T/TL/BL |
| 1 |
I8-98038 686-0 |
|
DRIVE ASM; FINAL, RR |
1 |
1512- |
|
NMR71 |
(D) 39/6; RR AXLE HD 320MM |
| 161 |
I0-91510 612-0 |
|
WASHER; LK |
8 |
1512- |
|
NLR |
ID=12.2; NLR55-T ; NLR55-B |
| 49 |
I8-94401 339-0 |
|
SHIM; FINAL PINION CAGE |
AR |
1512- |
|
NLR |
ID=132 T=0.18; NLR55-Tx/TLx ; NLR55-Bx/BLx ; NLR71-T/TL/BL |
| 56 |
I1-09070 027-0 |
|
BOLT; BRG CAP |
4 |
1512- |
|
NMR |
M14X95 FLANGE |
| 55 |
I1-41110 105-0 |
|
CARRIER; DIFF |
1 |
1807- |
|
NMR81 |
|
| 70 |
I9-00093 602-0 |
|
BEARING, DIFF CAGE |
2 |
1512- |
|
NLR |
NLR55-Tx/TLx , NLR55-Bx/BLx , NLR71-T/TL/BL |
| 25 |
I1-41552 020-0 |
|
WASHER; THRUST, PINION |
4 |
1512- |
|
NMR |
|
| 44 |
I9-09720 505-0 |
|
GASKET; PINION CAGE |
1 |
1512- |
|
NLR |
NLR55-Tx/TLx ; NLR55-Bx/BLx ; NLR71-T/TL/BL |
| 71 |
I1-41510 298-0 |
|
CAGE ASM; DIFF, FINAL DRIVE |
1 |
1512- |
|
NMR71 |
RR AXLE HD343MM |
| 49 |
I1-41154 053-1 |
|
SHIM; FINAL PINION CAGE |
AR |
1512- |
|
NMR71 |
T=1.00; RR AXLE HD 343MM |
| 131 |
I5-41525 002-0 |
|
PIECE, THRUST, DIFF BOX |
1 |
1512- |
|
NLR |
NLR55-T , NLR55-B |
| 1 |
I8-98015 138-0 |
|
DRIVE ASM, FINAL, RR |
1 |
1512- |
|
NLR |
(A) 43/9 |
| 100 |
I1-09625 484-0 |
|
SEAL; OIL, FINAL PINION |
1 |
1512- |
|
NMR71 |
OD=103 |
| 83 |
I8-97319 396-1 |
|
CAGE ASM, DIFF |
1 |
1512- |
|
NLR |
NLR55-Tx/TLx , NLR55-Bx/BLx , NLR71-T/TL/BL, (41/8) (41/7) |
| 70 |
I9-00093 130-A |
|
BEARING; DIFF CAGE |
2 |
1512- |
|
NMR |
(IADG) ID=66.7 OD=113 T=30 |
| 7 |
I8-97075 216-3 |
|
FLANGE; FINAL |
1 |
1512- |
|
NLR |
NLR55-T ; NLR55-B |
| 71 |
I1-41510 298-0 |
|
CAGE ASM, DIFF, FINAL DRIVE |
1 |
1807- |
|
NMR81 |
|
| 55 |
I8-97307 760-0 |
|
CARRIER; DIFF |
1 |
1512- |
|
NLR |
NLR55-Tx/TLx ; NLR55-Bx/BLx ; NLR71-T/TL/BL |
| 100 |
I6-09625 484-0 |
|
SEAL; OIL, FINAL PINION |
1 |
1512- |
|
NMR71 |
OD=103; (IADG) |
| 1 |
I8-98015 138-0 |
|
DRIVE ASM; FINAL, RR |
1 |
1512- |
|
NLR |
(A) 43/9; RR AXLE HD 292MM |
| 85 |
I1-09400 077-1 |
|
NUT; DIFF CAGE SETTING |
8 |
1512- |
|
NMR71 |
M14; RR AXLE HD 343MM |
| 24 |
I8-98186 829-0 |
|
GEAR; PINION, DIFF |
4 |
1512- |
|
NLR |
Z=10; NLR55-T ; NLR55-B |
| 70 |
I9-00093 130-0 |
|
BEARING; DIFF CAGE |
2 |
1512- |
|
NMR |
ID=66.7 OD=113 T=30 |
| 63 |
I8-97047 296-A |
|
BEARING; PINION PILOT |
1 |
1512- |
|
NMR71 |
(IADG) RR AXLE HD 320MM |
| 37 |
I1-09449 066-1 |
|
NUT; DRIVING PINION |
1 |
1807- |
|
NMR81 |
M30 FLANGE |
| 60 |
I8-97211 236-0 |
|
GEAR SET; FINAL DRIVE, RR |
1 |
1512- |
|
NLR |
39/8; RR AXLE STD 244MM; NLR55-T ; NLR55-B |
| 88 |
I9-41124 015-0 |
|
PLATE; LK,ADJ NUT |
2 |
1807- |
|
NMR81 |
(A) T=2.3 |
| 88 |
I9-41124 015-0 |
|
PLATE; LK, ADJ NUT |
AR |
1512- |
|
NMR71 |
(A) T=2.3; RR AXLE HD 343MM |
| 21 |
I8-98190 383-1 |
|
GEAR; SIDE, DIFF |
2 |
1512- |
|
NLR |
Z=18; NLR55-T ; NLR55-B |
| 22 |
I1-41521 035-2 |
|
SPIDER; DIFF PINION |
1 |
1807- |
|
NMR81 |
|
| 82 |
I1-41521 035-2 |
|
SPIDER, DIFF PINION |
1 |
1512- |
|
NMR71 |
|
| 21 |
I6-98359 566-0 |
|
GEAR; SIDE, DIFF |
2 |
1807- |
|
NMR81 |
(IADG) Z=16 |
| 20 |
I6-41562 076-0 |
|
WASHER; THRUST, SIDE GEAR |
AR |
1512- |
|
NMR |
(IADG) T=3.10 |
| 37 |
I8-97047 146-0 |
|
NUT; DRIVING PINION |
1 |
1512- |
|
NMR71 |
M30 FLANGE; RR AXLE HD 320MM |
| 1 |
I8-97094 682-0 |
|
DRIVE ASM; FINAL, RR |
1 |
1512- |
|
NMR71 |
(D) 41/7; RR AXLE HD 320MM |
| 84 |
I9-09606 505-2 |
|
BOLT; FINAL DRIVE GEAR |
12 |
1512- |
|
NLR |
M12X25; NLR55-T ; NLR55-B |
| 20 |
I1-41562 075-0 |
|
WASHER; THRUST, SIDE GEAR |
AR |
1512- |
|
NMR |
T=3.00 |
| 42 |
I9-41219 603-1 |
|
COLLAR; DIST, COLLAPSIBLE |
1 |
1512- |
|
NLR |
L=19.6; NLR55-Tx/TLx ; NLR55-Bx/BLx ; NLR71-T/TL/BL |
| 63 |
I1-09810 062-1 |
|
BEARING; PINION PILOT |
1 |
1807- |
|
NMR81 |
|
| 20 |
I6-41562 075-0 |
|
WASHER; THRUST, SIDE GEAR |
AR |
1512- |
|
NMR |
(IADG) T=3.00 |
| 60 |
I6-41210 530-0 |
|
GEAR SET; FINAL DRIVE, RR |
1 |
1512- |
|
NMR71 |
(IADG) 41/7; RR AXLE HD 343MM |
| 44 |
I8-97048 053-0 |
|
GASKET; PINION CAGE |
1 |
1512- |
|
NMR71 |
RR AXLE HD 320MM |
| 51 |
I9-41219 616-0 |
|
SHIM; PINION, FINAL DRIVE |
1 |
1512- |
|
NLR |
OD=89.5 T=2.28 |
| 126 |
I1-37245 067-4 |
|
COUPLING; DRIVING PINION |
1 |
1807- |
|
NMR81 |
|
| 20 |
I1-41562 073-0 |
|
WASHER; THRUST, SIDE GEAR |
AR |
1512- |
|
NMR |
T=2.80 |
| 73 |
I9-41519 010-0 |
|
SHIM; DIFF SIDE BRG |
AR |
1512- |
|
NLR |
NLR55-T; NLR55-B; T=0.25 |
| 70 |
I9-00093 602-A |
|
BEARING; DIFF CAGE |
2 |
1512- |
|
NLR |
(IADG) NLR55-Tx/TLx ; NLR55-Bx/BLx ; NLR71-T/TL/BL |
| 56 |
I8-94365 377-3 |
|
BOLT; BRG CAP |
4 |
1512- |
|
NLR |
M14X80 |
| 64 |
I0-91117 508-0 |
|
NUT; RET |
2 |
1807- |
|
NMR81 |
M8 SLOTTED |
| 49 |
I8-97047 299-0 |
|
SHIM; FINAL PINION CAGE |
AR |
1512- |
|
NMR71 |
ID=142 T=0.15; RR AXLE HD 320MM |
| 21 |
I8-97362 599-1 |
|
GEAR; SIDE, DIFF |
2 |
1512- |
|
NLR |
Z=20; NLR55-Tx/TLx ; NLR55-Bx/BLx ; NLR71-T/TL/BL |
| 49 |
I8-97048 418-0 |
|
SHIM; FINAL PINION CAGE |
AR |
1512- |
|
NMR71 |
ID=142 T=0.25; RR AXLE HD 320MM |
| 69 |
I1-41121 039-0 |
|
NUT; ADJ,DIFF CAGE |
1 |
1512- |
R |
NMR |
NMR71-HD; NMR81; M115 H=20; RR AXLE HD 343MM |
| 61 |
I9-41227 006-0 |
|
RETAINER; PILOT BRG,PINION |
2 |
1807- |
|
NMR81 |
(A) |
| 21 |
I8-98359 566-0 |
|
GEAR; SIDE, DIFF |
2 |
1807- |
|
NMR81 |
Z=16 |
| 49 |
I8-94401 335-0 |
|
SHIM; FINAL PINION CAGE |
AR |
1512- |
|
NLR |
ID=132 T=0.10; NLR55-Tx/TLx ; NLR55-Bx/BLx ; NLR71-T/TL/BL |
| 71 |
I8-98191 997-1 |
|
CAGE ASM; DIFF, FINAL DRIVE |
1 |
1512- |
|
NLR |
NLR55-T; NLR55-B |
| 21 |
I8-98359 567-0 |
|
GEAR; SIDE, DIFF |
2 |
1512- |
|
NMR71 |
Z=16; RR AXLE HD 320MM |
| 85 |
I1-09400 077-1 |
|
NUT, DIFF CAGE SETTING |
8 |
1807- |
|
NMR81 |
M14 |
| 49 |
I8-97048 419-0 |
|
SHIM; FINAL PINION CAGE |
AR |
1512- |
|
NMR71 |
ID=142 T=0.50; RR AXLE HD 320MM |
| 83 |
I8-97319 396-1 |
|
CAGE ASM; DIFF |
1 |
1512- |
|
NLR |
NLR55-Tx/TLx ; NLR55-Bx/BLx ; NLR71-T/TL/BL; (41/8) (41/7) |
| 89 |
I0-28050 816-0 |
|
BOLT; LK PLATE |
2 |
1512- |
|
NLR |
M8X16; NLR55-Tx/TLx ; NLR55-Bx/BLx ; NLR71-T/TL/BL |
| 39 |
I9-00093 078-0 |
|
BEARING; FINAL PINION |
1 |
1512- |
|
NLR |
(C) NLR55-T ; NLR55-B |
| 50 |
I1-09812 042-A |
|
BEARING; FINAL PINION |
1 |
1512- |
|
NMR |
(IADG) |
| 69 |
I1-41121 039-0 |
|
NUT; ADJ, DIFF CAGE |
2 |
1512- |
|
NMR |
NMR71-SD; M115 H=20; RR AXLE HD 320MM |
| 1 |
I8-98364 725-A |
|
DRIVE ASM; FINAL, RR |
1 |
1512- |
|
NMR71 |
(A) 43/7; RR AXLE HD 343MM; NMR71; NMR81 |
| 61 |
I8-97047 149-0 |
|
RETAINER; PILOT BRG, PINION |
1 |
1512- |
|
NMR71 |
(C) W/STUD; RR AXLE HD 320MM |
| 1 |
I8-98015 139-0 |
|
DRIVE ASM; FINAL, RR |
1 |
1512- |
|
NLR |

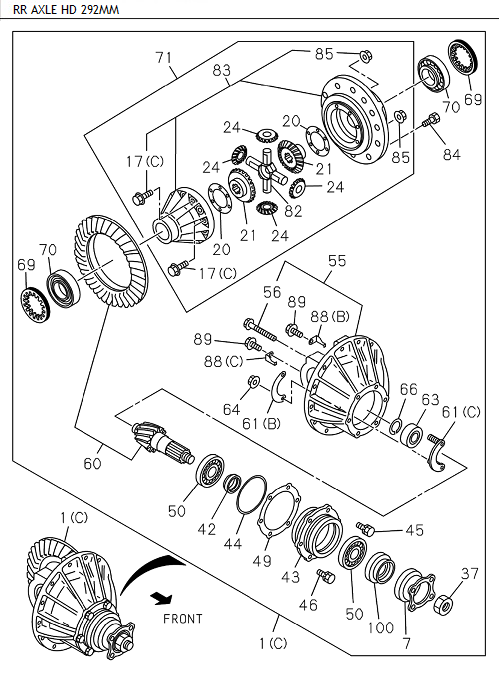

(A) 41/8; RR AXLE HD 292MM |
| 55 |
I1-41110 105-0 |
|
CARRIER; DIFF |
1 |
1512- |
|
NMR71 |
RR AXLE HD 343MM |
| 60 |
I8-97092 946-0 |
|
GEAR SET; FINAL DRIVE, RR |
1 |
1512- |
|
NMR71 |
43/7; RR AXLE HD 320MM |
| 43 |
I8-97047 098-0 |
|
CAGE; FINAL PINION |
1 |
1512- |
|
NMR71 |
RR AXLE HD 320MM |
| 1 |
I8-98015 142-0 |
|
DRIVE ASM; FINAL, RR |
1 |
1512- |
|
NLR |
(A) 41/7; RR AXLE HD 292MM |
| 70 |
I9-00093 130-0 |
|
BEARING, DIFF CAGE |
2 |
1512- |
|
NMR |
ID=66.7 OD=113 T=30 |
| 49 |
I1-41154 021-1 |
|
SHIM, FINAL PINION CAGE |
AR |
1512- |
|
NMR71 |
T=0.50, RR AXLE HD 343MM |
| 60 |
I1-41210 536-0 |
|
GEAR SET; FINAL DRIVE, RR |
1 |
1512- |
|
NMR71 |
39/6; RR AXLE HD 343MM |
| 20 |
I1-41562 078-0 |
|
WASHER; THRUST, SIDE GEAR |
AR |
1512- |
|
NMR |
T=3.30 |
| 39 |
I5-09812 063-A |
|
BEARING; FINAL PINION |
1 |
1512- |
|
NMR |
(A) |
| 85 |
I7-05110 010-A |
|
NUT; DIFF CAGE SETTING |
12 |
1512- |
|
NLR |
M10; NLR55-Tx/TLx ; NLR55-Bx/BLx ; NLR71-T/TL/BL |
| 85 |
I8-97065 214-0 |
|
NUT, DIFF CAGE SETTING |
12 |
1512- |
|
NMR71 |
M12, RR AXLE HD 320MM |
| 37 |
I8-94329 526-1 |
|
NUT; DRIVING PINION |
1 |
1512- |
|
NLR |
M24 FLANGE; NLR55-Tx/TLx ; NLR55-Bx/BLx ; NLR71-T/TL/BL |
| 88 |
I8-97087 821-0 |
|
PLATE; LK, ADJ NUT |
AR |
1512- |
|
NMR71 |
(D) T=2.3; RR AXLE HD 320MM |
| 49 |
I1-41154 051-1 |
|
SHIM; FINAL PINION CAGE |
AR |
1807- |
|
NMR81 |
T=0.30 |
| 100 |
I8-94408 083-1 |
|
SEAL; OIL, FINAL PINION |
1 |
1512- |
|
NLR |
OD=103; NLR55-Tx/TLx ; NLR55-Bx/BLx ; NLR71-T/TL/BL |
| 1 |
I8-98015 139-0 |
|
DRIVE ASM, FINAL, RR |
1 |
1512- |
|
NLR |
(A) 41/8 |
| 45 |
I9-02361 240-0 |
|
BOLT; FINAL PINION CAGE |
6 |
1512- |
|
NMR71 |
M12X40; RR AXLE HD 343MM |
| 83 |
I9-41510 610-0 |
|
CAGE ASM; DIFF |
1 |
1512- |
|
NLR |
NLR55-T ; NLR55-B |
| 45 |
I8-98220 227-0 |
|
BOLT; FINAL PINION CAGE |
6 |
1512- |
|
NMR71 |
M12X40 W/LK WASHER; RR AXLE HD 320MM |
| 63 |
I1-09810 062-1 |
|
BEARING; PINION PILOT |
1 |
1512- |
|
NMR71 |
RR AXLE HD 343MM |
| 60 |
I8-98092 134-0 |
|
GEAR SET; FINAL DRIVE, RR |
1 |
1512- |
|
NMR71 |
41/7; RR AXLE HD 320MM |
| 60 |
I1-41210 536-0 |
|
GEAR SET; FINAL DRIVE, RR |
1 |
1807- |
|
NMR81 |
39/6; RR AXLE HD 343MM |
| 1 |
I8-98015 135-0 |
|
DRIVE ASM; FINAL, RR |
1 |
1512- |
|
NLR |
(A) 41/10; RR AXLE HD 292MM |
| 82 |
I5-41521 006-0 |
|
SPIDER, DIFF PINION |
1 |
1512- |
|
NLR |
NLR55-T, NLR55-B |
| 126 |
I1-37245 067-4 |
|
COUPLING, DRIVING PINION |
1 |
1807- |
|
NMR81 |
|
| 83 |
I8-97319 398-1 |
|
CAGE ASM, DIFF |
1 |
1512- |
|
NLR |
NLR55-Tx/TLx , NLR55-Bx/BLx , NLR71-T/TL/BL, (41/10) (41/9) (43/9) (43/10) |
| 74 |
I0-81122 012-0 |
|
PIN; LK, CROSS PIN |
2 |
1512- |
|
NMR71 |
RR AXLE HD 343MM |
| 86 |
I8-97047 294-0 |
|
WASHER; PL, DIFF CAGE SETTING |
12 |
1512- |
|
NMR71 |
ID=12.5 OD=22 T=2; RR AXLE HD 320MM |
| 82 |
I5-41521 008-0 |
|
SPIDER; DIFF PINION |
1 |
1512- |
|
NLR |
NLR55-Tx/TLx ; NLR55-Bx/BLx ; NLR71-T/TL/BL |
| 88 |
I9-41124 015-0 |
|
PLATE, LK,ADJ NUT |
2 |
1807- |
|
NMR81 |
(A) T=2.3 |
| 100 |
I6-97328 648-0 |
|
SEAL, OIL, FINAL PINION |
1 |
1512- |
|
NLR |
(IADG) NLR55-T , NLR55-B |
| 88 |
I8-97027 281-0 |
|
PLATE, LK, ADJ NUT |
AR |
1512- |
|
NLR |
(C) NLR55-Tx/TLx , NLR55-Bx/BLx , NLR71-T/TL/BL |
| 63 |
I1-09810 062-A |
|
BEARING; PINION PILOT |
1 |
1807- |
|
NMR81 |
(IADG) |
| 60 |
I6-41210 531-0 |
|
GEAR SET; FINAL DRIVE, RR |
1 |
1512- |
|
NMR71 |
(IADG) 43/7; RR AXLE HD 343MM |
| 46 |
I0-50551 435-0 |
|
BOLT |
1 |
1512- |
|
NLR |
M14X35; NLR55-Tx/TLx ; NLR55-Bx/BLx ; NLR71-T/TL/BL |
| 66 |
I1-09588 065-2 |
|
RING; SNAP, PILOT BRG |
1 |
1512- |
|
NMR71 |
OD=32.2; RR AXLE HD 343MM |
| 61 |
I5-41227 001-0 |
|
RETAINER; PILOT BRG, PINION |
1 |
1512- |
|
NLR |
(C) W/STUD; NLR55-Tx/TLx ; NLR55-Bx/BLx ; NLR71-T/TL/BL |
| 84 |
I1-09070 085-0 |
|
BOLT; FINAL DRIVE GEAR |
16 |
1807- |
|
NMR81 |
M14X29.5 |
| 60 |
I8-97319 158-0 |
|
GEAR SET; FINAL DRIVE, RR |
1 |
1512- |
|
NLR |
41/8; RR AXLE HD 292MM |
| 64 |
I0-91180 106-0 |
|
NUT; RET |
2 |
1512- |
|
NLR |
M6 FLANGE; NLR55-Tx/TLx ; NLR55-Bx/BLx ; NLR71-T/TL/BL |
| 60 |
I8-98092 046-0 |
|
GEAR SET; FINAL DRIVE, RR |
1 |
1512- |
|
NLR |
43/9; RR AXLE HD 292MM |
| 1 |
I8-97367 500-0 |
|
DRIVE ASM; FINAL, RR |
1 |
1512- |
|
NLR |

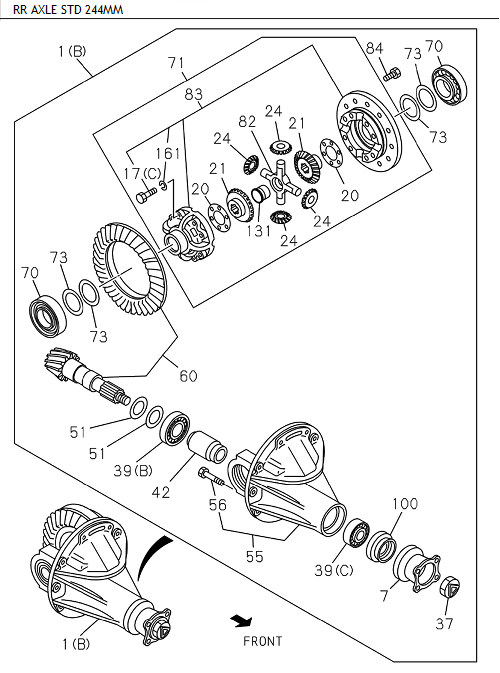

(B) 39/8; RR AXLE STD 244MM; NLR55-T ; NLR55-B |
| 89 |
I0-20850 816-0 |
|
BOLT, LK PLATE |
4 |
1807- |
|
NMR81 |
M8X16 |
| 61 |
I9-41227 006-0 |
|
RETAINER; PILOT BRG, PINION |
1 |
1512- |
|
NMR71 |
(A) RR AXLE HD 343MM |
| 85 |
I7-05110 010-A |
|
NUT, DIFF CAGE SETTING |
12 |
1512- |
|
NLR |
M10, NLR55-Tx/TLx , NLR55-Bx/BLx , NLR71-T/TL/BL |
| 82 |
I6-41521 035-0 |
|
SPIDER, DIFF PINION |
1 |
1512- |
|
NMR71 |
(IADG) |
| 100 |
I6-94408 083-0 |
|
SEAL; OIL, FINAL PINION |
1 |
1512- |
|
NLR |
(IADG) OD=103; NLR55-Tx/TLx ; NLR55-Bx/BLx ; NLR71-T/TL/BL |
| 66 |
I9-09752 002-0 |
|
RING; SNAP, PILOT BRG |
1 |
1512- |
|
NLR |
NLR55-Tx/TLx ; NLR55-Bx/BLx ; NLR71-T/TL/BL |
| 37 |
I8-94376 261-1 |
|
NUT; DRIVING PINION |
1 |
1512- |
|
NLR |
M24 FLANGE; NLR55-T ; NLR55-B |
| 70 |
I9-00093 602-A |
|
BEARING, DIFF CAGE |
2 |
1512- |
|
NLR |
(IADG) NLR55-Tx/TLx , NLR55-Bx/BLx , NLR71-T/TL/BL |
| 20 |
I6-41562 079-0 |
|
WASHER; THRUST, SIDE GEAR |
AR |
1512- |
|
NMR |
(IADG) T=3.40 |
| 69 |
I1-41121 028-0 |
|
NUT, ADJ,DIFF CAGE |
1 |
1807- |
L |
NMR81 |
M115 H=26 |
| 73 |
I9-41519 009-0 |
|
SHIM; DIFF SIDE BRG |
AR |
1512- |
|
NLR |
NLR55-T; NLR55-B; T=0.50 |
| 17 |
I1-09044 023-0 |
|
BOLT; DIFF CAGE SETTING |
8 |
1807- |
|
NMR81 |
(A) M14X85; RR AXLE HD 343MM |
| 20 |
I1-41562 076-0 |
|
WASHER; THRUST, SIDE GEAR |
AR |
1512- |
|
NMR |
T=3.10 |
| 65 |
I0-81122 012-0 |
|
PIN; SPLIT,RET |
2 |
1807- |
|
NMR81 |
|
| 55 |
I8-94376 227-3 |
|
CARRIER; DIFF |
1 |
1512- |
|
NLR |
NLR55-T ; NLR55-B |
| 60 |
I6-41210 530-0 |
|
GEAR SET; FINAL DRIVE, RR |
1 |
1807- |
|
NMR81 |
(IADG) 41/7; RR AXLE HD 343MM |
| 61 |
I8-97047 150-0 |
|
RETAINER; PILOT BRG, PINION |
1 |
1512- |
|
NMR71 |
(B) RR AXLE HD 320MM |
| 73 |
I9-41519 009-0 |
|
SHIM, DIFF SIDE BRG |
AR |
1512- |
|
NLR |
NLR55-T, NLR55-B, T=0.50 |
| 100 |
I8-97328 648-0 |
|
SEAL, OIL, FINAL PINION |
1 |
1512- |
|
NLR |
NLR55-T , NLR55-B |
| 82 |
I5-41521 006-0 |
|
SPIDER; DIFF PINION |
1 |
1512- |
|
NLR |
NLR55-T; NLR55-B |
| 82 |
I6-41521 035-0 |
|
SPIDER; DIFF PINION |
1 |
1512- |
|
NMR71 |
(IADG) |
| 49 |
I1-41154 021-1 |
|
SHIM, FINAL PINION CAGE |
AR |
1807- |
|
NMR81 |
T=0.50 |
| 60 |
I8-98092 055-0 |
|
GEAR SET; FINAL DRIVE, RR |
1 |
1512- |
|
NLR |
41/10; RR AXLE HD 292MM |
| 7 |
I8-94477 723-4 |
|
FLANGE; FINAL |
1 |
1512- |
|
NLR |
NLR55-Tx/TLx ; NLR55-Bx/BLx ; NLR71-T/TL/BL |
| 50 |
I5-09812 063-A |
|
BEARING; FINAL PINION |
2 |
1512- |
|
NLR |
NLR55-Tx/TLx ; NLR55-Bx/BLx ; NLR71-T/TL/BL |
| 83 |
I8-97319 398-1 |
|
CAGE ASM; DIFF |
1 |
1512- |
|
NLR |
NLR55-Tx/TLx ; NLR55-Bx/BLx ; NLR71-T/TL/BL; (41/10) (41/9) (43/9) (43/10) |
| 84 |
I8-97318 938-1 |
|
BOLT, FINAL DRIVE GEAR |
12 |
1512- |
|
NLR |
M14X25, NLR55-Tx/TLx , NLR55-Bx/BLx , NLR71-T/TL/BL |
| 48 |
I0-91510 512-0 |
|
WASHER; LK,FINAL PINION |
6 |
1807- |
|
NMR81 |
ID=12.2 |
| 4 |
I1-09623 379-0 |
|
GASKET; FLANGE,FINAL PINION |
1 |
1807- |
|
NMR81 |
ID=35.7 T=5 |
| 20 |
I6-41562 077-0 |
|
WASHER; THRUST, SIDE GEAR |
AR |
1512- |
|
NMR |
(IADG) T=3.20 |
| 42 |
I1-41219 004-0 |
|
COLLAR; DIST, COLLAPSIBLE |
1 |
1512- |
|
NMR71 |
T=15.75; RR AXLE HD 343MM |
| 60 |
I8-98092 049-0 |
|
GEAR SET; FINAL DRIVE, RR |
1 |
1512- |
|
NLR |
41/9; RR AXLE HD 292MM |
| 1 |
I8-98015 136-0 |
|
DRIVE ASM; FINAL, RR |
1 |
1512- |
|
NLR |
(C) 43/10; RR AXLE HD 292MM |
| 84 |
I8-97047 147-0 |
|
BOLT, FINAL DRIVE GEAR |
12 |
1512- |
|
NMR71 |
M16X30, RR AXLE HD 320MM |
| 43 |
I1-41151 063-0 |
|
CAGE; FINAL PINION |
1 |
1807- |
|
NMR81 |
|
| 43 |
I1-41151 063-0 |
|
CAGE; FINAL PINION |
1 |
1512- |
|
NMR71 |
RR AXLE HD 343MM |
| 50 |
I1-09812 042-1 |
|
BEARING; FINAL PINION |
1 |
1512- |
|
NMR |
|
| 70 |
I9-00032 211-A |
|
BEARING; DIFF CAGE |
2 |
1512- |
|
NLR |
NLR55-T ; NLR55-B |
| 21 |
I6-98359 566-0 |
|
GEAR; SIDE, DIFF |
2 |
1512- |
|
NMR71 |
(IADG) Z=16; RR AXLE HD 343MM |
| 100 |
I6-94408 083-0 |
|
SEAL, OIL, FINAL PINION |
1 |
1512- |
|
NLR |
(IADG) OD=103, NLR55-Tx/TLx , NLR55-Bx/BLx , NLR71-T/TL/BL |
| 88 |
I8-97027 281-0 |
|
PLATE; LK, ADJ NUT |
AR |
1512- |
|
NLR |
(C) NLR55-Tx/TLx ; NLR55-Bx/BLx ; NLR71-T/TL/BL |
| 39 |
I9-00093 078-A |
|
BEARING; FINAL PINION |
1 |
1512- |
|
NLR |
(IADG) (C) NLR55-T ; NLR55-B |
| 100 |
I1-09625 484-0 |
|
SEAL, OIL, FINAL PINION |
1 |
1512- |
|
NMR71 |
OD=103 |
| 49 |
I1-41154 053-1 |
|
SHIM; FINAL PINION CAGE |
AR |
1807- |
|
NMR81 |
T=1.00 |
| 71 |
I8-98015 181-1 |
|
CAGE ASM, DIFF, FINAL DRIVE |
1 |
1512- |
|
NLR |
NLR55-Tx/TLx , NLR55-Bx/BLx , NLR71-T/TL/BL, (41/10) (41/9) (43/9) (43/10) |
| 69 |
I1-41121 028-0 |
|
NUT; ADJ, DIFF CAGE |
1 |
1512- |
L |
NMR |
NMR71-HD; NMR81; M115 H=26; RR AXLE HD 343MM |
| 1 |
I8-98364 726-A |
|
DRIVE ASM; FINAL, RR |
1 |
1512- |
|
NMR71 |
(A) 39/6; RR AXLE HD 343MM; NMR71; NMR81 |
| 100 |
I6-97328 648-0 |
|
SEAL; OIL, FINAL PINION |
1 |
1512- |
|
NLR |
(IADG) NLR55-T ; NLR55-B |
| 89 |
I0-20850 816-0 |
|
BOLT; LK PLATE |
4 |
1512- |
|
NMR71 |
M8X16; RR AXLE HD 343MM |
| 60 |
I6-41210 536-0 |
|
GEAR SET; FINAL DRIVE, RR |
1 |
1512- |
|
NMR71 |
(IADG) 39/6; RR AXLE HD 343MM |
| 89 |
I0-28050 816-0 |
|
BOLT, LK PLATE |
4 |
1512- |
|
NMR71 |
M8X16, RR AXLE HD 320MM |
| 17 |
I1-09044 023-0 |
|
BOLT; DIFF CAGE SETTING |
8 |
1512- |
|
NMR71 |
(A) M14X85; RR AXLE HD 343MM |
| 74 |
I0-81122 012-0 |
|
PIN, LK, CROSS PIN |
2 |
1512- |
|
NMR71 |
RR AXLE HD 343MM |
| 20 |
I1-41562 074-0 |
|
WASHER; THRUST, SIDE GEAR |
AR |
1512- |
|
NMR |
T=2.90 |
| 88 |
I8-97027 282-0 |
|
PLATE; LK, ADJ NUT |
AR |
1512- |
|
NLR |
(B) NLR55-Tx/TLx ; NLR55-Bx/BLx ; NLR71-T/TL/BL |
| 64 |
I0-91117 508-0 |
|
NUT; RET |
2 |
1512- |
|
NMR71 |
M8 SLOTTED; RR AXLE HD 343MM |
| 20 |
I6-41562 074-0 |
|
WASHER; THRUST, SIDE GEAR |
AR |
1512- |
|
NMR |
(IADG) T=2.90 |
| 100 |
I8-97328 648-0 |
|
SEAL; OIL, FINAL PINION |
1 |
1512- |
|
NLR |
NLR55-T ; NLR55-B |
| 39 |
I9-00093 079-A |
|
BEARING; FINAL PINION |
1 |
1512- |
|
NLR |
(IADG) (B) NLR55-T ; NLR55-B |
| 1 |
I8-98015 380-0 |
|
DRIVE ASM, FINAL, RR |
1 |
1512- |
|
NLR |
(A) 43/9 |
| 20 |
I9-41562 602-0 |
|
WASHER; THRUST, SIDE GEAR |
2 |
1512- |
|
NLR |
T=1.00; NLR55-T ; NLR55-B |
| 60 |
I6-97209 168-0 |
|
GEAR SET; FINAL DRIVE, RR |
1 |
1512- |
|
NMR71 |
(IADG) 39/6; RR AXLE HD 320MM |
| 25 |
I6-41552 020-0 |
|
WASHER; THRUST, PINION |
4 |
1512- |
|
NMR |
(IADG) |
| 49 |
I1-41154 052-1 |
|
SHIM, FINAL PINION CAGE |
AR |
1807- |
|
NMR81 |
T=0.40 |
| 83 |
I9-41510 610-0 |
|
CAGE ASM, DIFF |
1 |
1512- |
|
NLR |
NLR55-T , NLR55-B |
| 42 |
I1-41219 004-0 |
|
COLLAR; DIST,COLLAPSIBLE |
1 |
1807- |
|
NMR81 |
T=15.75 |
| 73 |
I9-41519 602-0 |
|
SHIM; DIFF SIDE BRG |
AR |
1512- |
|
NLR |
NLR55-T; NLR55-B; T=0.35 |
| 88 |
I8-97027 282-0 |
|
PLATE, LK, ADJ NUT |
AR |
1512- |
|
NLR |
(B) NLR55-Tx/TLx , NLR55-Bx/BLx , NLR71-T/TL/BL |
| 69 |
I5-41121 001-0 |
|
NUT; ADJ, DIFF CAGE |
2 |
1512- |
|
NLR |
M110 H=10; NLR55-Tx/TLx ; NLR55-Bx/BLx ; NLR71-T/TL/BL |
| 20 |
I1-41562 079-0 |
|
WASHER; THRUST, SIDE GEAR |
AR |
1512- |
|
NMR |
T=3.40 |
| 1 |
I8-97094 684-0 |
|
DRIVE ASM; FINAL, RR |
1 |
1512- |
|
NMR71 |
(D) 43/7; RR AXLE HD 320MM |
| 7 |
I8-98321 245-0 |
|
FLANGE; FINAL |
1 |
1512- |
|
NMR71 |
RR AXLE HD 343MM |
| 84 |
I8-97047 147-0 |
|
BOLT; FINAL DRIVE GEAR |
12 |
1512- |
|
NMR71 |
M16X30; RR AXLE HD 320MM |
| 73 |
I9-41519 601-0 |
|
SHIM; DIFF SIDE BRG |
AR |
1512- |
|
NLR |
NLR55-T; NLR55-B; T=0.30 |
| 45 |
I8-98221 264-0 |
|
BOLT; FINAL PINION CAGE |
5 |
1512- |
|
NLR |
M12X38 W/LK WASHER; NLR55-Tx/TLx ; NLR55-Bx/BLx ; NLR71-T/TL/BL |
| 39 |
I9-00093 079-1 |
|
BEARING; FINAL PINION |
1 |
1512- |
|
NLR |
(B) NLR55-T ; NLR55-B |
| 49 |
I1-41154 051-1 |
|
SHIM; FINAL PINION CAGE |
AR |
1512- |
|
NMR71 |
T=0.30; RR AXLE HD 343MM |
| 1 |
I8-98364 724-A |
|
DRIVE ASM; FINAL, RR |
1 |
1512- |
|
NMR71 |
(A) 41/7; RR AXLE HD 343MM; NMR71; NMR81 |
| 71 |
I8-98015 181-1 |
|
CAGE ASM; DIFF, FINAL DRIVE |
1 |
1512- |
|
NLR |
NLR55-Tx/TLx ; NLR55-Bx/BLx ; NLR71-T/TL/BL; (41/10) (41/9) (43/9) (43/10) |
| 49 |
I8-97047 298-0 |
|
SHIM; FINAL PINION CAGE |
AR |
1512- |
|
NMR71 |
ID=142 T=0.12; RR AXLE HD 320MM |
| 70 |
I9-00093 602-0 |
|
BEARING; DIFF CAGE |
2 |
1512- |
|
NLR |
NLR55-Tx/TLx ; NLR55-Bx/BLx ; NLR71-T/TL/BL |
| 60 |
I8-98043 095-0 |
|
GEAR SET; FINAL DRIVE, RR |
1 |
1512- |
|
NMR71 |
43/8; RR AXLE HD 320MM |
| 89 |
I0-20850 816-0 |
|
BOLT; LK PLATE |
4 |
1807- |
|
NMR81 |
M8X16 |
| 73 |
I9-41519 602-0 |
|
SHIM, DIFF SIDE BRG |
AR |
1512- |
|
NLR |
NLR55-T, NLR55-B, T=0.35 |
| 49 |
I8-94401 340-0 |
|
SHIM; FINAL PINION CAGE |
AR |
1512- |
|
NLR |
ID=132 T=0.20; NLR55-Tx/TLx ; NLR55-Bx/BLx ; NLR71-T/TL/BL |
| 63 |
I5-09810 009-0 |
|
BEARING; PINION PILOT |
1 |
1512- |
|
NLR |
NLR55-Tx/TLx ; NLR55-Bx/BLx ; NLR71-T/TL/BL |
| 66 |
I8-97047 297-0 |
|
RING; SNAP, PILOT BRG |
1 |
1512- |
|
NMR71 |
RR AXLE HD 320MM |
| 51 |
I9-41219 626-0 |
|
SHIM; PINION, FINAL DRIVE |
1 |
1512- |
|
NLR |
OD=89.5 T=2.48 |
| 70 |
I9-00032 211-A |
|
BEARING, DIFF CAGE |
2 |
1512- |
|
NLR |
NLR55-T , NLR55-B |
| 89 |
I0-28050 816-0 |
|
BOLT; LK PLATE |
4 |
1512- |
|
NMR71 |
M8X16; RR AXLE HD 320MM |
| 82 |
I5-41521 008-0 |
|
SPIDER, DIFF PINION |
1 |
1512- |
|
NLR |
NLR55-Tx/TLx , NLR55-Bx/BLx , NLR71-T/TL/BL |
| 49 |
I7-55223 931-0 |
|
SHIM; FINAL PINION CAGE |
AR |
1807- |
|
NMR81 |
T=0.50 |
| 51 |
I9-41219 610-0 |
|
SHIM; PINION, FINAL DRIVE |
1 |
1512- |
|
NLR |
OD=89.5 T=2.16 |
| 45 |
I9-02361 240-0 |
|
BOLT; FINAL PINION CAGE |
6 |
1807- |
|
NMR81 |
M12X40 |
| 55 |
I8-97094 637-0 |
|
CARRIER; DIFF |
1 |
1512- |
|
NMR71 |
RR AXLE HD 320MM |
| 49 |
I7-55223 933-0 |
|
SHIM; FINAL PINION CAGE |
AR |
1807- |
|
NMR81 |
T=0.40 |
| 42 |
I8-97047 097-0 |
|
COLLAR; DIST, COLLAPSIBLE |
1 |
1512- |
|
NMR71 |
L=22.2; RR AXLE HD 320MM |
| 61 |
I9-41227 601-0 |
|
RETAINER; PILOT BRG, PINION |
1 |
1512- |
|
NLR |
(B) NLR55-Tx/TLx ; NLR55-Bx/BLx ; NLR71-T/TL/BL |
