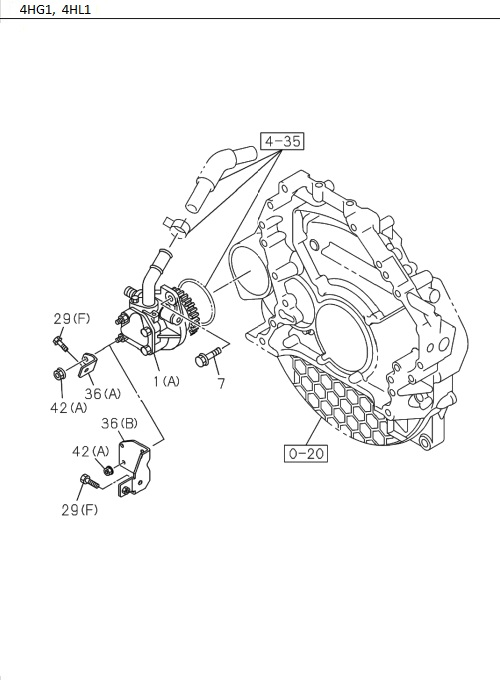

4-36 | POWER STEERING CONTROL; ENGINE SIDE
ELF
NLR55 NMR71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 42 | I0-91180 110-0 | NUT; ADJ PLATE | 1 | 1512- | NLR | (B) 4JB1-TC; M10 | ||
| 29 | I0-28851 420-0 | BOLT; BRKT, POWER STRG | 1 | 1512- | NLR | (F) | ||
| 47 | I8-97085 131-0 | BELT; P/S PUMP | 1 | 1512- | NLR | 4JB1-TC | ||
| 29 | I0-28050 800-0 | BOLT, BRKT, POWER STRG | 1 | 1512- | NLR | (D) 4JB1-TC, M8X100 | ||
| 36 | I8-97112 866-0 | BRACKET; PLATE, P/S PUMP | 1 | 1512- | NLR | 4HG1-T | ||
| 36 | I8-98036 532-0 | BRACKET; PLATE,P/S PUMP | 1 | 1807- | NMR81 | |||
| 25 | I8-97107 869-0 | BRACKET, P/S PUMP | 1 | 1512- | NLR | (A) 4JB1-TC | ||
| 1 | I8-98114 577-4 | PUMP ASM, OIL,P/S | 1 | 1807- | NMR81 | |||
| 1 | I8-98138 130-3 | PUMP ASM; OIL, P/S | 1 | 1512- | NMR71 | |||
| 47 | I8-97085 131-A | BELT; P/S PUMP | 1 | 1512- | NLR | (IADG) 4JB1-TC | ||
| 29 | I0-28050 860-0 | BOLT, BRKT, POWER STRG | 1 | 1512- | NLR | (E) 4JB1-TC, M8X60 | ||
| 42 | I0-91180 110-0 | NUT, ADJ PLATE | 1 | 1512- | NLR | (B) 4JB1-TC, M10 | ||
| 29 | I0-28051 000-0 | BOLT; BRKT, POWER STRG | 1 | 1512- | NLR | (C) 4JB1-TC; M10X100 | ||
| 29 | I0-28050 800-0 | BOLT; BRKT, POWER STRG | 1 | 1512- | NLR | (D) 4JB1-TC; M8X100 | ||
| 7 | I0-28751 030-0 | BOLT, OIL PUMP, P/S | 2 | 1512- | NMR | M10X30 | ||
| 1 | I8-98217 772-0 | PUMP ASM; OIL, P/S | 1 | 1512- | NLR | 4JB1-TC | ||
| 36 | I8-98036 532-0 | BRACKET, PLATE,P/S PUMP | 1 | 1807- | NMR81 | |||
| 42 | I0-91180 108-0 | NUT, ADJ PLATE | 1 | 1512- | NLR | (A) M8 | ||
| 32 | I8-98217 771-0 | PULLEY, IDLER, P/S | 1 | 1512- | NLR | 4JB1-TC | ||
| 54 | I8-94128 866-0 | IDLER ASM; P/S OIL PUMP | 1 | 1512- | NLR | 4JB1-TC | ||
| 32 | I8-98217 771-0 | PULLEY; IDLER, P/S | 1 | 1512- | NLR | 4JB1-TC | ||
| 25 | I8-97065 974-0 | BRACKET; P/S PUMP | 1 | 1512- | NLR | (B) 4JB1-TC | ||
| 1 | I8-98138 130-2 | PUMP ASM, OIL, P/S | 1 | 1512- | NLR | 4HG1-T | ||
| 36 | I8-97112 866-0 | BRACKET; PLATE, P/S PUMP | 1 | 1512- | NMR71 | |||
| 36 | I8-97112 866-0 | BRACKET, PLATE, P/S PUMP | 1 | 1512- | NMR71 | |||
| 29 | I0-28050 816-0 | BOLT, BRKT, POWER STRG | 3 | 1512- | NLR | (A) 4JB1-TC, M8X16 | ||
| 42 | I0-91180 108-0 | NUT; ADJ PLATE | 1 | 1512- | NLR | (A) M8 | ||
| 19 | I8-97360 126-0 | NUT, PULLEY, OIL PUMP | 1 | 1512- | NLR | 4JB1-TC, M12 | ||
| 25 | I8-97065 974-0 | BRACKET, P/S PUMP | 1 | 1512- | NLR | (B) 4JB1-TC | ||
| 29 | I0-28851 420-0 | BOLT; BRKT, POWER STRG | 1 | 1512- | NMR71 | (F) | ||
| 1 | I8-98138 130-2 | PUMP ASM, OIL, P/S | 1 | 1512- | NMR71 | |||
| 1 | I8-98138 130-3 | PUMP ASM; OIL, P/S | 1 | 1512- | NLR | 4HG1-T | ||
| 47 | I8-97085 131-A | BELT, P/S PUMP | 1 | 1512- | NLR | (IADG) 4JB1-TC | ||
| 19 | I8-97360 126-0 | NUT; PULLEY, OIL PUMP | 1 | 1512- | NLR | 4JB1-TC; M12 | ||
| 25 | I8-97107 872-0 | BRACKET, P/S PUMP | 1 | 1512- | NLR | (C) 4JB1-TC | ||
| 29 | I0-28651 020-0 | BOLT, BRKT, POWER STRG | 5 | 1512- | NLR | (B) 4JB1-TC, M10X20 | ||
| 1 | I8-98217 772-0 | PUMP ASM, OIL, P/S | 1 | 1512- | NLR | 4JB1-TC | ||
| 29 | I0-28050 816-0 | BOLT; BRKT, POWER STRG | 3 | 1512- | NLR | (A) 4JB1-TC; M8X16 | ||
| 42 | I0-91180 108-0 | NUT, ADJ PLATE | 2 | 1512- | NMR | M8 | ||
| 42 | I0-91180 108-0 | NUT; ADJ PLATE | 2 | 1512- | NMR | M8 | ||
| 7 | I0-28751 030-0 | BOLT; OIL PUMP, P/S | 2 | 1512- | NMR | M10X30 | ||
| 29 | I0-28851 420-0 | BOLT; BRKT,POWER STRG | 1 | 1807- | NMR81 | M14X20 | ||
| 1 | I8-98114 577-5 | PUMP ASM; OIL,P/S | 1 | 1807- | NMR81 | |||
| 54 | I8-94128 866-0 | IDLER ASM, P/S OIL PUMP | 1 | 1512- | NLR | 4JB1-TC | ||
| 25 | I8-97107 869-0 | BRACKET; P/S PUMP | 1 | 1512- | NLR | (A) 4JB1-TC | ||
| 25 | I8-97107 872-0 | BRACKET; P/S PUMP | 1 | 1512- | NLR | (C) 4JB1-TC | ||
| 47 | I8-97085 131-0 | BELT, P/S PUMP | 1 | 1512- | NLR | 4JB1-TC | ||
| 29 | I0-28851 420-0 | BOLT, BRKT,POWER STRG | 1 | 1807- | NMR81 | M14X20 | ||
| 29 | I0-28651 020-0 | BOLT; BRKT, POWER STRG | 5 | 1512- | NLR | (B) 4JB1-TC; M10X20 | ||
| 29 | I0-28050 860-0 | BOLT; BRKT, POWER STRG | 1 | 1512- | NLR | (E) 4JB1-TC; M8X60 | ||
| 29 | I0-28051 000-0 | BOLT, BRKT, POWER STRG | 1 | 1512- | NLR | (C) 4JB1-TC, M10X100 | ||
| 7 | I0-28751 030-0 | BOLT; OIL PUMP, P/S | 2 | 1512- | NLR | 4HG1-T; M10X30 |
