8-25 | SWITCH AND RELAY, INSTRUMENT PANEL
ELF
NLR55 NMR71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 39 | I8-98060 789-0 | RELAY, DOOR LK | 1 | 1512- | NMR71 | 24V | ||
| 595 | I6-97173 035-0 | RELAY, IGNITION | 1 | 1807- | NMR81 | (IADG) 24V 10A | ||

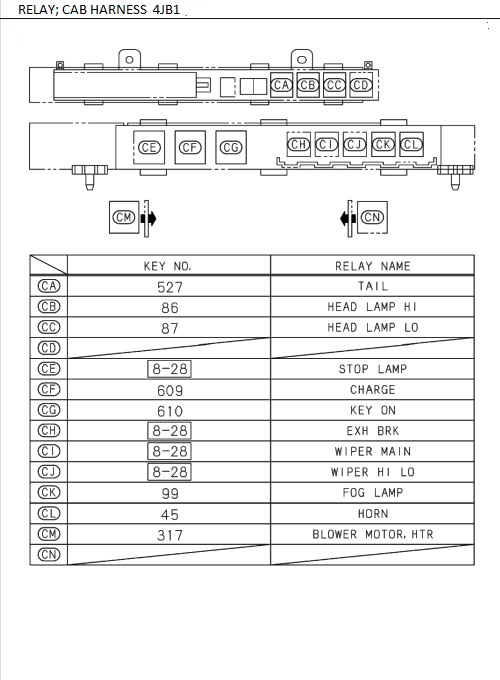

| 527 | I6-97173 037-0 | RELAY, TAIL | 1 | 1512- | NLR | (IADG) 4JB1-TC, 12V 20A | ||
| 96 | I8-97387 031-4 | SWITCH, FOG LAMP | 1 | 1512- | NLR | 24V | ||
| 191 | I6-97173 037-0 | RELAY, EXH BRK CUT | 1 | 1512- | NLR | (IADG) 4JB1-TC, 12V 20A | ||
| 10 | I8-98153 865-0 | SCREW, POWER WINDOW SW | 1 | 1512- | NLR | |||
| 191 | I8-97173 035-1 | RELAY, EXH BRK CUT | 1 | 1512- | NMR71 | 24V 10A | ||
| 26 | I8-97358 315-0 | SWITCH, ACCEL | 1 | 1512- | NLR | |||

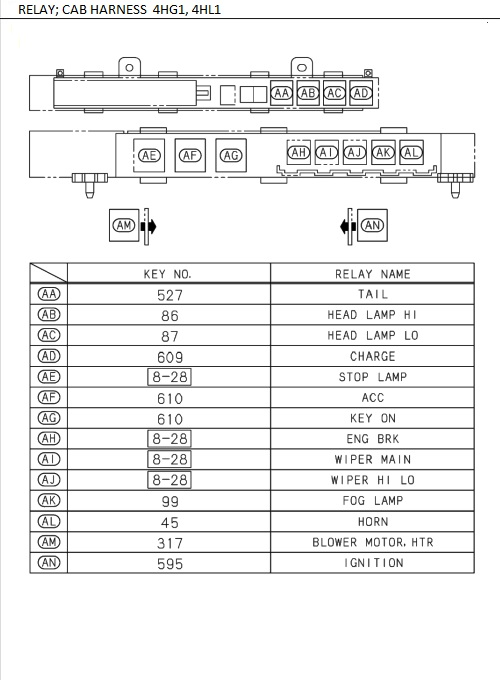

| 86 | I8-97173 035-1 | RELAY, HI?BEAM | 1 | 1512- | NLR | 4HG1-T, 24V 10A | ||

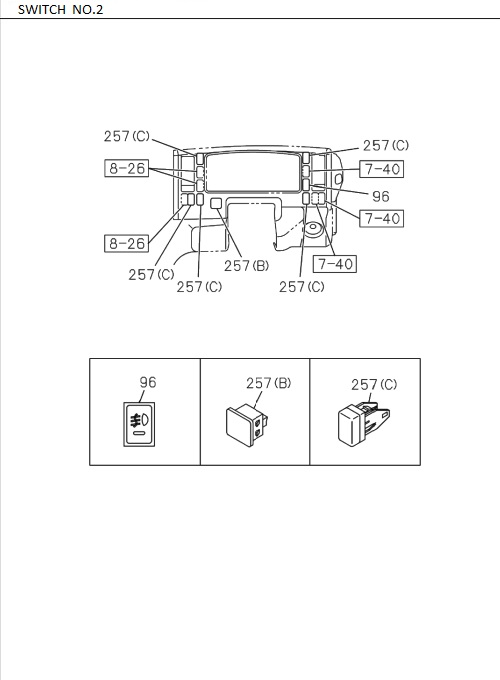

| 257 | I8-98029 914-1 | COVER, HOLE, SW | 1 | 1512- | ALL | (B) | ||
| 86 | I6-97173 037-0 | RELAY, HI?BEAM | 1 | 1512- | NLR | (IADG) 4JB1-TC, 12V 20A | ||

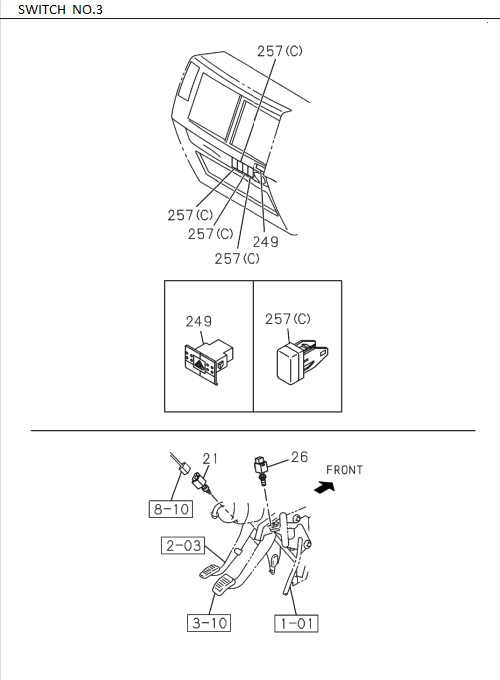

| 249 | I8-97386 922-1 | SWITCH, HAZARD | 1 | 1512- | NMR | 24V | ||
| 191 | I6-97173 035-0 | RELAY, EXH BRK CUT | 1 | 1512- | NLR | (IADG) 4HG1-T, 24V 10A | ||

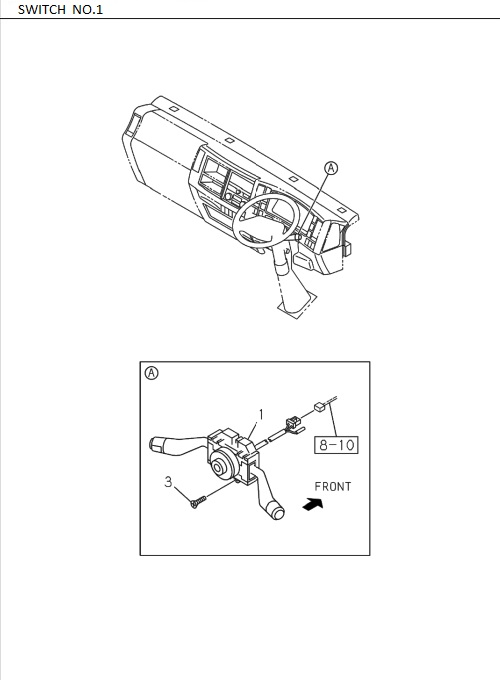

| 1 | I8-98243 735-0 | SWITCH, COMB | 1 | 1512- | NMR | 24V, NMR71, NMR81 | ||
| 609 | I6-97173 035-0 | RELAY, CHARGE | 1 | 1512- | NMR71 | (IADG) 24V 10A | ||
| 249 | I8-98011 707-2 | SWITCH, HAZARD | 1 | 1512- | NLR | 12V | ||
| 45 | I8-97173 035-1 | RELAY, HORN | 1 | 1512- | NMR | 24V 10A | ||
| 191 | I8-97173 037-1 | RELAY, EXH BRK CUT | 1 | 1512- | NLR | 4JB1-TC, 12V 20A | ||
| 86 | I6-97173 035-0 | RELAY, HI?BEAM | 1 | 1512- | NLR | (IADG) 4HG1-T, 24V 10A | ||
| 87 | I6-97173 035-0 | RELAY, LOW-BEAM | 1 | 1512- | NMR | (IADG) 24V 10A | ||
| 86 | I8-97173 035-1 | RELAY, HI?BEAM | 1 | 1512- | NMR | 24V 10A | ||
| 3 | I8-98061 743-0 | SCREW, COMB SW | 2 | 1512- | ALL | M5X20 | ||
| 45 | I8-97173 037-1 | RELAY, HORN | 1 | 1512- | NLR | 4JB1-TC, 12V 20A | ||

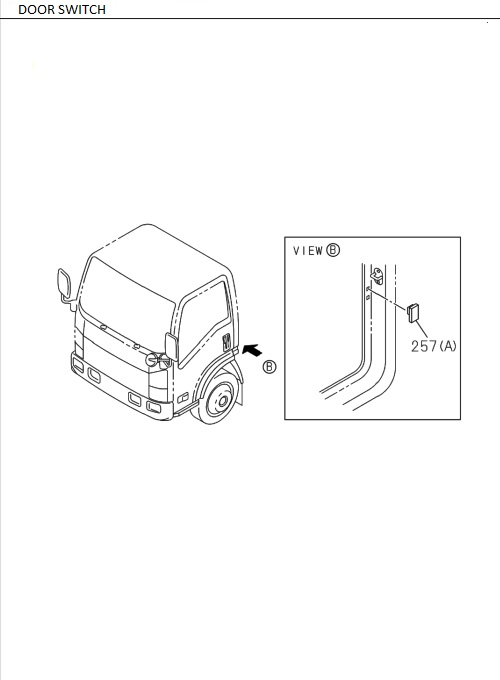

| 257 | I8-98029 917-0 | COVER, HOLE, SW | 2 | 1512- | ALL | (A) | ||
| 99 | I6-97173 037-0 | RELAY, FOG LAMP | 1 | 1512- | NLR | (IADG) 4JB1-TC12V 20A | ||
| 609 | I8-97063 441-2 | RELAY, CHARGE | 1 | 1512- | NLR | 4JB1-TC, 12V | ||
| 99 | I8-97173 037-1 | RELAY, FOG LAMP | 1 | 1512- | NLR | 4JB1-TC12V 20A | ||
| 527 | I6-97173 035-0 | RELAY, TAIL | 1 | 1512- | NMR | (IADG) 24V 10A | ||
| 183 | I0-91180 106-0 | NUT, RELAY BRKT | 1 | 1512- | NMR71 | 24V | ||
| 263 | I8-98153 841-0 | COVER, SW | 1 | 1512- | NLR | |||
| 263 | I8-98153 841-0 | COVER, SW | 1 | 1512- | NMR71 | |||
| 180 | I8-98091 660-0 | BRACKET, RELAY | 1 | 1512- | NMR71 | 24V | ||
| 249 | I8-97386 922-1 | SWITCH, HAZARD | 1 | 1512- | NLR | 24V | ||
| 610 | I8-97262 933-0 | RELAY, KEY ON | 1 | 1512- | NMR | 24V 12.5A | ||
| 315 | I8-97173 035-1 | RELAY, EXH BRAKE CONT | 1 | 1512- | NMR71 | 24V 10A | ||
| 610 | I8-97262 933-0 | RELAY, KEY ON | 1 | 1512- | NLR | 4HG1-T, 24V 12.5A | ||
| 12 | I6-97173 035-0 | RELAY, POWER WINDOW | 1 | 1512- | NLR | (IADG) 4HG1-T, 24V 10A | ||
| 86 | I8-97173 037-1 | RELAY, HI?BEAM | 1 | 1512- | NLR | 4JB1-TC, 12V 20A | ||
| 99 | I6-97173 035-0 | RELAY, FOG LAMP | 1 | 1512- | NMR | (IADG) 4HG1-T, 24V 10A | ||
| 8 | I8-98316 415-0 | SWITCH, POWER WINDOW | 1 | 1512- | NMR71 | PASSENGER SIDE | ||
| 8 | I8-98298 750-0 | SWITCH, POWER WINDOW | 1 | 1512- | NLR | 24V | ||
| 1 | I8-98243 735-0 | SWITCH, COMB | 1 | 1512- | NLR | 24V, NLR71 | ||
| 39 | I8-98060 789-0 | RELAY, DOOR LK | 1 | 1512- | NLR | 24V | ||
| 87 | I6-97173 035-0 | RELAY, LOW-BEAM | 1 | 1512- | NLR | (IADG) 4HG1-T, 24V 10A | ||
| 96 | I8-97387 031-4 | SWITCH, FOG LAMP | 1 | 1512- | NMR | 24V | ||
| 45 | I8-97173 035-1 | RELAY, HORN | 1 | 1512- | NLR | 4HG1-T, 24V 10A | ||
| 527 | I8-97173 037-1 | RELAY, TAIL | 1 | 1512- | NLR | 4JB1-TC, 12V 20A | ||
| 87 | I8-97173 037-1 | RELAY, LOW-BEAM | 1 | 1512- | NLR | 4JB1-TC, 12V 20A | ||
| 527 | I8-97173 035-1 | RELAY, TAIL | 1 | 1512- | NMR | 24V 10A | ||
| 8 | I8-98298 750-0 | SWITCH, POWER WINDOW | 1 | 1512- | NMR71 | 24V, DRIVER SIDE | ||
| 21 | I8-97358 248-0 | SWITCH, CLU | 1 | 1512- | ALL | |||
| 315 | I8-97173 035-1 | RELAY, EXH BRAKE CONT | 1 | 1512- | NLR | 4HG1-T, 24V 10A | ||
| 315 | I6-97173 035-0 | RELAY, EXH BRAKE CONT | 1 | 1512- | NLR | (IADG) 4HG1-T, 24V 10A | ||
| 12 | I8-97173 035-1 | RELAY, POWER WINDOW | 1 | 1512- | NMR | 24V 10A | ||
| 87 | I8-97173 035-1 | RELAY, LOW-BEAM | 1 | 1512- | NMR | 24V 10A | ||
| 96 | I8-98022 021-1 | SWITCH, FOG LAMP | 1 | 1512- | NLR | 12V | ||
| 263 | I8-98153 836-0 | COVER, SW | 1 | 1512- | NLR | |||
| 312 | I0-28650 820-0 | BOLT RELAY | 1 | 1512- | NLR | 12V, M8X20 | ||
| 610 | I8-97210 972-1 | RELAY, KEY ON | 1 | 1512- | NLR | 4JB1-TC, 12V 30A | ||
| 12 | I6-97173 037-0 | RELAY, POWER WINDOW | 1 | 1512- | NLR | (IADG) 4JB1-TC, 12V 20A | ||
| 87 | I6-97173 037-0 | RELAY, LOW-BEAM | 1 | 1512- | NLR | (IADG) 4JB1-TC, 12V 20A | ||
| 87 | I8-97173 035-1 | RELAY, LOW-BEAM | 1 | 1512- | NLR | 4HG1-T, 24V 10A | ||
| 12 | I8-97173 035-1 | RELAY, POWER WINDOW | 1 | 1512- | NLR | 4HG1-T, 24V 10A | ||
| 12 | I6-97173 035-0 | RELAY, POWER WINDOW | 1 | 1512- | NMR | (IADG) 24V 10A | ||
| 180 | I8-98091 660-0 | BRACKET, RELAY | 1 | 1512- | NLR | 24V | ||
| 12 | I8-97173 037-1 | RELAY, POWER WINDOW | 1 | 1512- | NLR | 4JB1-TC, 12V 20A | ||
| 8 | I8-98316 415-0 | SWITCH, POWER WINDOW | 1 | 1512- | NLR | PASSENGER SIDE | ||
| 26 | I8-97358 315-0 | SWITCH, ACCEL | 1 | 1512- | NMR71 | |||
| 609 | I8-97173 035-1 | RELAY, CHARGE | 1 | 1512- | NMR71 | 24V 10A | ||
| 39 | I8-97359 591-0 | RELAY, DOOR LK | 1 | 1512- | NLR | 12V | ||
| 595 | I8-97173 035-1 | RELAY, IGNITION | 1 | 1807- | NMR81 | 24V 10A | ||
| 104 | I8-98025 954-1 | COVER, SW HOLE, FOG LAMP | 1 | 1512- | NMR71 | |||
| 1 | I8-98243 734-0 | SWITCH, COMB | 1 | 1512- | NLR | 12V, NLR55-BLx, NLR55-TLx, NLR55-Bx, NLR55-Tx | ||
| 315 | I6-97173 035-0 | RELAY, EXH BRAKE CONT | 1 | 1512- | NMR71 | (IADG) 24V 10A | ||
| 315 | I8-97173 037-1 | RELAY, EXH BRAKE CONT | 1 | 1512- | NLR | 4JB1-TC, 12V 20A | ||
| 191 | I6-97173 035-0 | RELAY, EXH BRK CUT | 1 | 1512- | NMR71 | (IADG) 24V 10A | ||
| 317 | I8-97180 794-1 | RELAY, BLOWER MOTOR, HTR | 1 | 1512- | NLR | 4JB1-TC, 12V 35A | ||
| 1 | I8-98243 732-0 | SWITCH, COMB | 1 | 1512- | NLR | 12V, NLR55-B, NLR55-T | ||
| 609 | I6-97063 441-0 | RELAY, CHARGE | 1 | 1512- | NLR | (IADG) 4JB1-TC, 12V | ||
| 263 | I8-98153 836-0 | COVER, SW | 1 | 1512- | NMR71 | |||
| 86 | I6-97173 035-0 | RELAY, HI?BEAM | 1 | 1512- | NMR | (IADG) 24V 10A | ||
| 8 | I8-98298 752-0 | SWITCH, POWER WINDOW | 1 | 1512- | NLR | 12V, DRIVER SIDE | ||
| 315 | I6-97173 037-0 | RELAY, EXH BRAKE CONT | 1 | 1512- | NLR | (IADG) 4JB1-TC, 12V 20A | ||
| 99 | I8-97173 035-1 | RELAY, FOG LAMP | 1 | 1512- | NLR | 4HG1-T, 24V 10A | ||
| 527 | I6-97173 035-0 | RELAY, TAIL | 1 | 1512- | NLR | (IADG) 4HG1-T, 24V 10A | ||
| 609 | I8-97173 035-1 | RELAY, CHARGE | 1 | 1512- | NLR | 4HG1-T, 24V 10A | ||
| 45 | I6-97173 037-0 | RELAY, HORN | 1 | 1512- | NLR | (IADG) 4JB1-TC, 12V 20A | ||
| 527 | I8-97173 035-1 | RELAY, TAIL | 1 | 1512- | NLR | 4HG1-T, 24V 10A | ||
| 317 | I8-97262 933-0 | RELAY, BLOWER MOTOR, HTR | 1 | 1512- | NLR | 4HG1-T, 24V 12.5A | ||
| 99 | I8-97173 035-1 | RELAY, FOG LAMP | 1 | 1512- | NMR | 4HG1-T, 24V 10A | ||
| 257 | I8-98025 954-1 | COVER, HOLE, SW | 7 | 1512- | ALL | (C) | ||
| 317 | I8-97262 933-0 | RELAY, BLOWER MOTOR, HTR | 1 | 1512- | NMR71 | 24V 12.5A | ||
| 104 | I8-98025 954-1 | COVER, SW HOLE, FOG LAMP | 1 | 1512- | NLR | |||
| 10 | I8-98153 865-0 | SCREW, POWER WINDOW SW | 1 | 1512- | NMR71 | |||
| 609 | I6-97173 035-0 | RELAY, CHARGE | 1 | 1512- | NLR | (IADG) 4HG1-T, 24V 10A | ||
| 99 | I6-97173 035-0 | RELAY, FOG LAMP | 1 | 1512- | NLR | (IADG) 4HG1-T, 24V 10A | ||
| 45 | I6-97173 035-0 | RELAY, HORN | 1 | 1512- | NMR | (IADG) 24V 10A | ||
| 191 | I8-97173 035-1 | RELAY, EXH BRK CUT | 1 | 1512- | NLR | 4HG1-T, 24V 10A | ||
| 45 | I6-97173 035-0 | RELAY, HORN | 1 | 1512- | NLR | (IADG) 4HG1-T, 24V 10A | ||
| 183 | I0-91180 106-0 | NUT, RELAY BRKT | 1 | 1512- | NLR | 24V |
