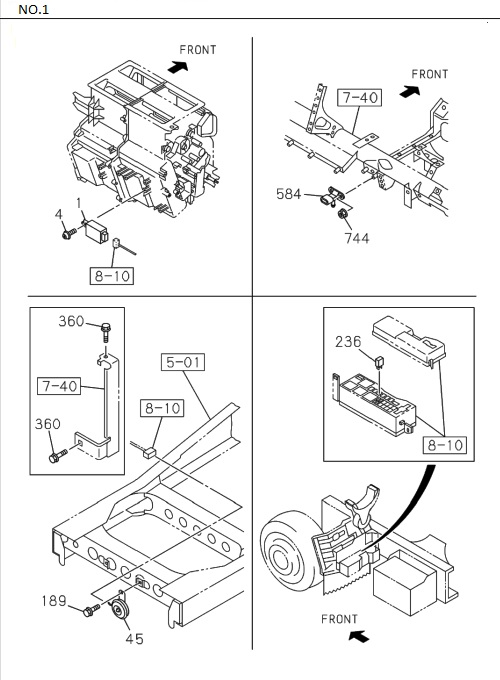

8-28 | CHASSIS ELECTRICAL
ELF
NLR55 NMR71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 540 | I8-98233 976-0 | RELAY, WIPER INTERVAL | 1 | 1512- | NLR | (A) 24V | ||
| 584 | I8-98020 514-0 | SENSOR, PRESSURE | 1 | 1807- | NMR81 | |||
| 360 | I1-09980 598-1 | BOLT, RELAY BOX | 1 | 1512- | NMR71 | LOWER M6X16 | ||
| 770 | I8-97173 035-1 | RELAY; ENG BRK | 1 | 1512- | NLR | 4HG1-T; 24V 10A | ||
| 189 | I8-98141 255-0 | BOLT HORN | 2 | 1512- | ALL | M8X18.5 W/PL WASHER | ||
| 360 | I0-28650 616-0 | BOLT, RELAY BOX | 1 | 1512- | NLR | M6X16 | ||
| 236 | I6-97173 035-0 | RELAY, FUEL PUMP | 1 | 1512- | NMR71 | (IADG) 24V 10A | ||
| 360 | I0-28650 616-0 | BOLT; RELAY BOX | 1 | 1512- | NMR71 | M6X16 | ||
| 540 | I6-97173 035-0 | RELAY, WIPER INTERVAL | 1 | 1512- | NLR | (IADG) (C) 4HG1-T, 24V 10A | ||
| 360 | I0-28650 616-0 | BOLT, RELAY BOX | 1 | 1512- | NMR71 | M6X16 | ||
| 360 | I0-28650 616-0 | BOLT; RELAY BOX | 1 | 1512- | NLR | M6X16 | ||
| 189 | I8-98141 255-0 | BOLT HORN | 2 | 1512- | ALL | M8X18.5 W/PL WASHER | ||
| 8 | I6-97173 035-0 | RELAY, WIPER | 1 | 1512- | NLR | (IADG) 4HG1-T, 24V 10A | ||
| 8 | I8-97173 035-1 | RELAY; WIPER | 1 | 1512- | NMR | 24V 10A | ||
| 770 | I6-97173 037-0 | RELAY; ENG BRK | 1 | 1512- | NLR | (IADG) 4JB1-TC; 12V 20A | ||
| 540 | I8-97173 035-1 | RELAY, WIPER INTERVAL | 1 | 1512- | NMR | (C) 24V 10A | ||
| 45 | I8-97211 744-2 | HORN, LOW NOTE | 1 | 1512- | NLR | 12V, NLR55 | ||
| 45 | I7-43600 200-A | HORN; LOW NOTE | 1 | 1512- | NLR | 24V; NLR71 | ||
| 44 | I8-97211 741-2 | HORN; HIGH NOTE | 1 | 1512- | NMR71 | 24V | ||
| 531 | I8-98259 779-0 | RELAY, MAIN | 1 | 1807- | NMR81 | 24V 30A | ||
| 540 | I6-97173 037-0 | RELAY; WIPER INTERVAL | 1 | 1512- | NLR | (IADG) (C) 4JB1-TC; 12V 20A | ||
| 22 | I8-97210 972-1 | RELAY; STOP LAMP | 1 | 1512- | NLR | 4JB1-TC; 12V 30A | ||
| 42 | I8-98094 199-0 | BRACKET; RELAY | 1 | 1512- | NLR | 4JB1-TC; 12V | ||
| 744 | I0-91180 106-0 | NUT; SENSOR | 2 | 1807- | NMR81 | M6 | ||
| 44 | I8-97211 743-2 | HORN, HIGH NOTE | 1 | 1512- | NLR | 12V | ||
| 22 | I8-97262 933-0 | RELAY; STOP LAMP | 1 | 1512- | NMR | 24V 12.5A | ||
| 540 | I8-98032 320-1 | RELAY; WIPER INTERVAL | 1 | 1512- | NLR | (B) 12V | ||
| 540 | I8-98233 976-0 | RELAY; WIPER INTERVAL | 1 | 1512- | NLR | (A) 24V | ||
| 8 | I6-97173 035-0 | RELAY, WIPER | 1 | 1512- | NMR | (IADG) 24V 10A | ||
| 666 | I8-98167 173-0 | RELAY; STARTER | 1 | 1807- | NMR81 | 24V 10A | ||
| 44 | I8-97211 743-2 | HORN; HIGH NOTE | 1 | 1512- | NLR | 12V | ||
| 360 | I1-09980 598-1 | BOLT, RELAY BOX | 1 | 1512- | NLR | LOWER M6X16 | ||
| 8 | I6-97173 037-0 | RELAY, WIPER | 1 | 1512- | NLR | (IADG) 4JB1-TC, 12V 20A | ||
| 100 | I0-91180 108-0 | NUT; RELAY BOX COVER | 3 | 1601- | NLR | 4JB1-TC | ||
| 22 | I8-97262 933-0 | RELAY, STOP LAMP | 1 | 1512- | NMR | 24V 12.5A | ||
| 770 | I6-97173 035-0 | RELAY; ENG BRK | 1 | 1512- | NMR71 | (IADG) 24V 10A | ||
| 45 | I7-43600 200-A | HORN, LOW NOTE | 1 | 1512- | NMR | 24V, NMR71 | ||
| 360 | I1-09980 598-1 | BOLT; RELAY BOX | 1 | 1512- | NLR | LOWER M6X16 | ||
| 4 | I0-72180 516-0 | SCREW; FLASHER UNIT | 1 | 1512- | ALL | M5X16 | ||
| 1 | I8-98025 533-A | UNIT, FLASHER | 1 | 1512- | NMR | 24V | ||
| 1 | I8-98001 519-A | UNIT, FLASHER | 1 | 1512- | NLR | 12V | ||
| 770 | I8-97173 035-1 | RELAY; ENG BRK | 1 | 1512- | NMR71 | 24V 10A | ||
| 666 | I8-98167 173-0 | RELAY, STARTER | 1 | 1807- | NMR81 | 24V 10A | ||
| 8 | I8-97173 035-1 | RELAY, WIPER | 1 | 1512- | NMR | 24V 10A | ||
| 540 | I8-97173 035-1 | RELAY; WIPER INTERVAL | 1 | 1512- | NMR | (C) 24V 10A | ||
| 236 | I8-97173 035-1 | RELAY, FUEL PUMP | 1 | 1512- | NLR | 4HG1-T, 24V 10A | ||
| 540 | I8-98032 320-1 | RELAY, WIPER INTERVAL | 1 | 1512- | NLR | (B) 12V | ||
| 360 | I1-09980 598-1 | BOLT; RELAY BOX | 1 | 1512- | NMR71 | LOWER M6X16 | ||
| 540 | I8-98233 976-0 | RELAY, WIPER INTERVAL | 1 | 1512- | NMR71 | (A) 24V | ||
| 8 | I6-97173 035-0 | RELAY; WIPER | 1 | 1512- | NLR | (IADG) 4HG1-T; 24V 10A | ||
| 540 | I6-97173 035-0 | RELAY, WIPER INTERVAL | 1 | 1512- | NMR | (IADG) (C) 24V 10A | ||
| 540 | I6-97173 035-0 | RELAY; WIPER INTERVAL | 1 | 1512- | NMR | (IADG) (C) 24V 10A | ||
| 45 | I7-43600 200-A | HORN; LOW NOTE | 1 | 1512- | NMR | 24V; NMR71 | ||
| 376 | I0-28650 820-0 | BOLT RELAY | 1 | 1512- | NLR | 4JB1-TC, 12V M8X20 | ||
| 42 | I8-98094 199-0 | BRACKET, RELAY | 1 | 1512- | NLR | 4JB1-TC, 12V | ||
| 540 | I8-97173 035-1 | RELAY, WIPER INTERVAL | 1 | 1512- | NLR | (C) 4HG1-T, 24V 10A | ||
| 540 | I8-97173 037-1 | RELAY; WIPER INTERVAL | 1 | 1512- | NLR | (C) 4JB1-TC; 12V 20A | ||
| 770 | I8-97173 037-1 | RELAY, ENG BRK | 1 | 1512- | NLR | 4JB1-TC, 12V 20A | ||
| 540 | I8-98233 976-0 | RELAY; WIPER INTERVAL | 1 | 1512- | NMR71 | (A) 24V | ||
| 584 | I8-98020 514-0 | SENSOR; PRESSURE | 1 | 1807- | NMR81 | |||
| 236 | I8-97173 035-1 | RELAY; FUEL PUMP | 1 | 1512- | NLR | 4HG1-T; 24V 10A | ||
| 8 | I6-97173 035-0 | RELAY; WIPER | 1 | 1512- | NMR | (IADG) 24V 10A | ||
| 8 | I8-97173 035-1 | RELAY; WIPER | 1 | 1512- | NLR | 4HG1-T; 24V 10A | ||
| 540 | I8-97173 037-1 | RELAY, WIPER INTERVAL | 1 | 1512- | NLR | (C) 4JB1-TC, 12V 20A | ||
| 236 | I6-97173 035-0 | RELAY; FUEL PUMP | 1 | 1512- | NMR71 | (IADG) 24V 10A | ||
| 8 | I6-97173 037-0 | RELAY; WIPER | 1 | 1512- | NLR | (IADG) 4JB1-TC; 12V 20A | ||
| 540 | I8-97173 035-1 | RELAY; WIPER INTERVAL | 1 | 1512- | NLR | (C) 4HG1-T; 24V 10A | ||
| 1 | I8-98001 519-A | UNIT; FLASHER | 1 | 1512- | NLR | 12V | ||
| 4 | I0-72180 516-0 | SCREW, FLASHER UNIT | 1 | 1512- | ALL | M5X16 | ||
| 22 | I8-97262 933-0 | RELAY; STOP LAMP | 1 | 1512- | NLR | 4HG1-T; 24V 12.5A | ||
| 44 | I8-97211 741-2 | HORN, HIGH NOTE | 1 | 1512- | NMR71 | 24V | ||
| 45 | I7-43600 201-A | HORN; LOW NOTE | 1 | 1512- | NLR | 12V; NLR55 | ||
| 770 | I6-97173 035-0 | RELAY, ENG BRK | 1 | 1512- | NMR71 | (IADG) 24V 10A | ||
| 540 | I6-97173 035-0 | RELAY; WIPER INTERVAL | 1 | 1512- | NLR | (IADG) (C) 4HG1-T; 24V 10A | ||
| 540 | I6-97173 037-0 | RELAY, WIPER INTERVAL | 1 | 1512- | NLR | (IADG) (C) 4JB1-TC, 12V 20A | ||
| 1 | I8-98025 533-A | UNIT; FLASHER | 1 | 1512- | NLR | 24V | ||
| 540 | I8-97173 035-1 | RELAY; WIPER INTERVAL | 1 | 1807- | NMR81 | 24V 10A | ||
| 100 | I0-91180 108-0 | NUT, RELAY BOX COVER | 3 | 1601- | NLR | 4JB1-TC | ||
| 540 | I6-97173 035-0 | RELAY, WIPER INTERVAL | 1 | 1807- | NMR81 | (IADG) 24V 10A | ||
| 8 | I8-97173 035-1 | RELAY, WIPER | 1 | 1512- | NLR | 4HG1-T, 24V 10A | ||
| 770 | I6-97173 037-0 | RELAY, ENG BRK | 1 | 1512- | NLR | (IADG) 4JB1-TC, 12V 20A | ||
| 236 | I6-97173 035-0 | RELAY; FUEL PUMP | 1 | 1512- | NLR | (IADG) 4HG1-T; 24V 10A | ||
| 770 | I6-97173 035-0 | RELAY, ENG BRK | 1 | 1512- | NLR | (IADG) 4HG1-T, 24V 10A | ||
| 770 | I8-97173 035-1 | RELAY, ENG BRK | 1 | 1512- | NLR | 4HG1-T, 24V 10A | ||
| 540 | I6-97173 035-0 | RELAY; WIPER INTERVAL | 1 | 1807- | NMR81 | (IADG) 24V 10A | ||
| 531 | I8-97833 987-0 | RELAY; MAIN | 1 | 1807- | NMR81 | 24V 30A | ||
| 44 | I8-97211 741-2 | HORN; HIGH NOTE | 1 | 1512- | NLR | 24V | ||
| 770 | I8-97173 037-1 | RELAY; ENG BRK | 1 | 1512- | NLR | 4JB1-TC; 12V 20A | ||
| 540 | I8-97173 035-1 | RELAY, WIPER INTERVAL | 1 | 1807- | NMR81 | 24V 10A | ||
| 8 | I8-97173 037-1 | RELAY, WIPER | 1 | 1512- | NLR | 4JB1-TC, 12V 20A | ||
| 236 | I8-97173 035-1 | RELAY; FUEL PUMP | 1 | 1512- | NMR71 | 24V 10A | ||
| 744 | I0-91180 106-0 | NUT, SENSOR | 2 | 1807- | NMR81 | M6 | ||
| 22 | I8-97210 972-1 | RELAY, STOP LAMP | 1 | 1512- | NLR | 4JB1-TC, 12V 30A | ||
| 376 | I0-28650 820-0 | BOLT RELAY | 1 | 1512- | NLR | 4JB1-TC; 12V M8X20 | ||
| 8 | I8-97173 037-1 | RELAY; WIPER | 1 | 1512- | NLR | 4JB1-TC; 12V 20A | ||
| 236 | I6-97173 035-0 | RELAY, FUEL PUMP | 1 | 1512- | NLR | (IADG) 4HG1-T, 24V 10A | ||
| 1 | I8-98025 533-A | UNIT; FLASHER | 1 | 1512- | NMR | 24V | ||
| 236 | I8-97173 035-1 | RELAY, FUEL PUMP | 1 | 1512- | NMR71 | 24V 10A | ||
| 770 | I8-97173 035-1 | RELAY, ENG BRK | 1 | 1512- | NMR71 | 24V 10A | ||
| 770 | I6-97173 035-0 | RELAY; ENG BRK | 1 | 1512- | NLR | (IADG) 4HG1-T; 24V 10A |
