8-40 | HEATER SYSTEM
ELF
NLR55 NMR71

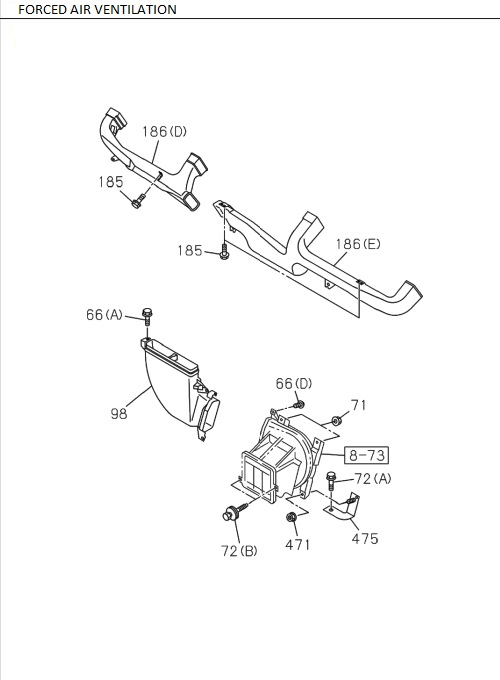

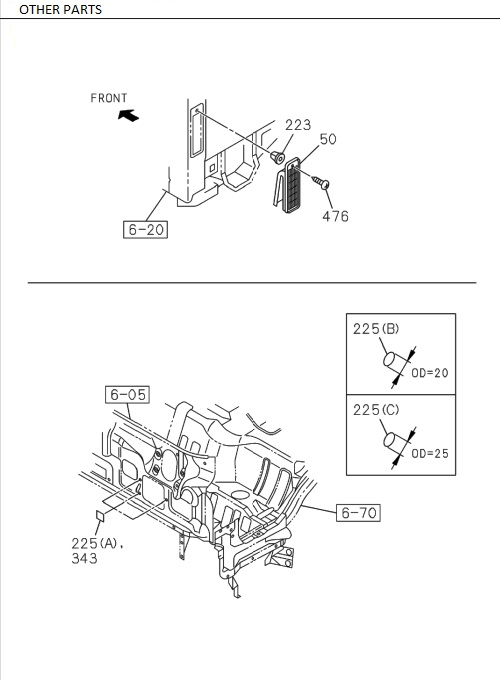

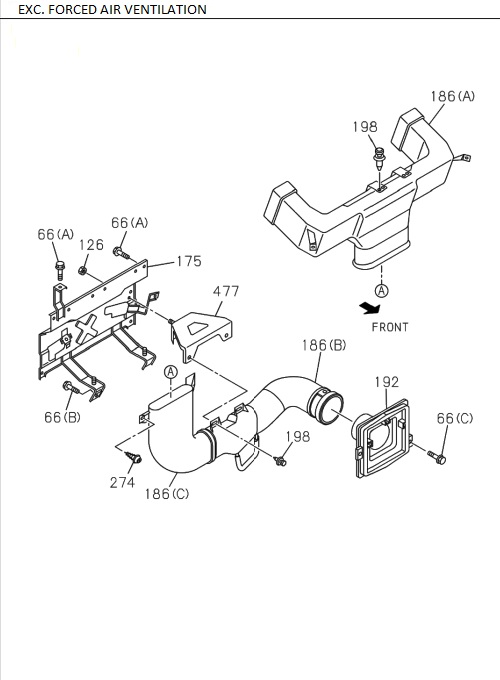

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 185 | I0-72180 516-0 | SCREW, VENT DUCT | 4 | 1512- | NLR | M5X16 | ||
| 66 | I8-98081 175-0 | BOLT, DUCT | 1 | 1512- | NMR71 | (D) M6X20 | ||
| 225 | I1-76798 029-0 | SEAL, WATER | 1 | 1512- | NMR71 | (B) OD=20 T=0.05 | ||
| 72 | I8-97359 709-0 | BOLT, BLOWER UNIT | 1 | 1512- | NLR | (A) M8X20 | ||
| 476 | I8-98062 675-0 | SCREW, VALVE | 1 | 1512- | ALL | |||
| 72 | I8-98081 030-0 | BOLT, BLOWER UNIT | 2 | 1512- | NMR71 | (B) M6X20 | ||
| 225 | I1-76798 029-0 | SEAL, WATER | 2 | 1512- | NMR71 | (C) OD=25 | ||
| 274 | I0-72180 516-0 | SCREW, VENT DUCT | 2 | 1512- | ALL | M5X16 | ||
| 66 | I0-28650 616-0 | BOLT, DUCT | 1 | 1512- | ALL | (A) M6X16 | ||
| 343 | I8-97856 616-0 | SEAL, AIR DUCT | 2 | 1512- | ALL | |||
| 72 | I8-98081 030-0 | BOLT, BLOWER UNIT | 2 | 1512- | NMR71 | (B) M6X20 | ||
| 98 | I8-97695 770-A | DUCT, BLOWER UNIT TO HTR UNIT | 1 | 1512- | NMR71 | |||
| 66 | I8-98081 175-0 | BOLT, DUCT | 1 | 1807- | NMR81 | (B) M6X20 W/LK&PL WASHER | ||
| 477 | I8-98091 304-0 | BRACKET, DUCT | 1 | 1807- | NMR81 | |||
| 186 | I8-98054 379-2 | DUCT, VENTILATOR | 1 | 1512- | NMR71 | (D) | ||
| 186 | I8-98054 361-0 | DUCT, VENTILATOR | 1 | 1807- | NMR81 | (A) | ||
| 225 | I1-76798 029-0 | SEAL, WATER | 3 | 1807- | NMR81 | (A) OD=25 | ||
| 186 | I8-98054 379-2 | DUCT, VENTILATOR | 1 | 1512- | NLR | (D) | ||
| 471 | I0-91180 106-0 | NUT, BLOWER | 1 | 1512- | NMR71 | M6 | ||
| 72 | I8-97359 709-0 | BOLT, BLOWER UNIT | 1 | 1512- | NLR | (A) M8X20 | ||
| 186 | I8-98285 582-0 | DUCT, VENTILATOR | 1 | 1512- | R | NMR71 | (A) | |
| 186 | I8-98285 589-0 | DUCT, VENTILATOR | 1 | 1512- | L | NMR71 | (B) | |
| 477 | I8-98164 455-0 | BRACKET, DUCT | 1 | 1512- | NLR | (B) | ||
| 225 | I8-97856 616-0 | SEAL, WATER | 2 | 1512- | NMR71 | (A) | ||
| 225 | I1-76798 029-0 | SEAL, WATER | 2 | 1512- | NLR | (C) OD=25 | ||
| 477 | I8-98164 455-0 | BRACKET, DUCT | 1 | 1512- | NMR71 | (B) | ||
| 66 | I8-98081 030-0 | BOLT, DUCT | 3 | 1512- | ALL | (C) M6X20 | ||
| 175 | I8-98184 163-0 | BRACKET, HTR DUCT | 1 | 1512- | ALL | |||
| 186 | I8-98054 361-0 | DUCT, VENTILATOR | 1 | 1512- | NMR71 | (C) | ||
| 186 | I8-98054 371-0 | DUCT, VENTILATOR | 1 | 1512- | NMR71 | (E) | ||
| 126 | I0-91180 106-0 | NUT, BRKT | 1 | 1512- | ALL | |||
| 186 | I8-98054 371-0 | DUCT, VENTILATOR | 1 | 1807- | NMR81 | (C) | ||
| 225 | I1-76798 029-0 | SEAL, WATER | 1 | 1512- | NLR | (B) OD=20 T=0.05 | ||
| 71 | I0-91180 106-0 | NUT, BLOWER UNIT TO DASH | 2 | 1512- | NLR | M6 | ||
| 192 | I8-98054 386-3 | DUCT, RAM AIR | 1 | 1512- | ALL | |||
| 71 | I0-91180 106-0 | NUT, BLOWER UNIT TO DASH | 2 | 1512- | NMR71 | M6 | ||
| 66 | I0-72180 516-0 | BOLT, DUCT | 2 | 1512- | NMR71 | (B) M5X16 | ||
| 225 | I8-97856 616-0 | SEAL, WATER | 2 | 1512- | NLR | (A) | ||
| 66 | I8-98081 175-0 | BOLT, DUCT | 1 | 1512- | NLR | (D) M6X20 | ||
| 50 | I8-98080 998-2 | VALVE ASM, HTR | 1 | 1512-2012 | ALL | |||
| 477 | I8-98091 304-0 | BRACKET, DUCT | 1 | 1512- | NMR71 | (A) | ||
| 186 | I8-98054 379-2 | DUCT, VENTILATOR | 1 | 1807- | NMR81 | (B) | ||
| 225 | I1-76798 029-0 | SEAL, WATER | 1 | 1807- | NMR81 | (B) OD=20 T=0.05 | ||
| 186 | I8-98054 371-0 | DUCT, VENTILATOR | 1 | 1512- | NLR | (E) | ||
| 50 | I8-97925 112-0 | VALVE ASM, HTR | 1 | 2101- | ALL | |||
| 186 | I8-98285 589-0 | DUCT, VENTILATOR | 1 | 1512- | L | NLR | (B) | |
| 66 | I0-72180 516-0 | BOLT, DUCT | 2 | 1512- | NLR | (B) M5X16 | ||
| 198 | I1-09987 144-0 | CLIP, DUCT | 5 | 1512- | ALL | |||
| 223 | I8-94441 539-0 | GROMMET, SCREW | 1 | 1512- | ALL | D=7.9X7.9 L=20 M5 | ||
| 475 | I8-98001 196-2 | BRACKET, BLOWER | 1 | 1512- | NLR | |||
| 185 | I0-72180 516-0 | SCREW, VENT DUCT | 4 | 1512- | NMR71 | M5X16 | ||
| 477 | I8-98091 304-0 | BRACKET, DUCT | 1 | 1512- | NLR | (A) | ||
| 186 | I8-98054 361-0 | DUCT, VENTILATOR | 1 | 1512- | NLR | (C) | ||
| 471 | I0-91180 106-0 | NUT, BLOWER | 1 | 1512- | NLR | M6 | ||
| 98 | I8-97695 770-A | DUCT, BLOWER UNIT TO HTR UNIT | 1 | 1512- | NLR | |||
| 475 | I8-98001 196-2 | BRACKET, BLOWER | 1 | 1512- | NMR71 | |||
| 186 | I8-98285 582-0 | DUCT, VENTILATOR | 1 | 1512- | R | NLR | (A) |
