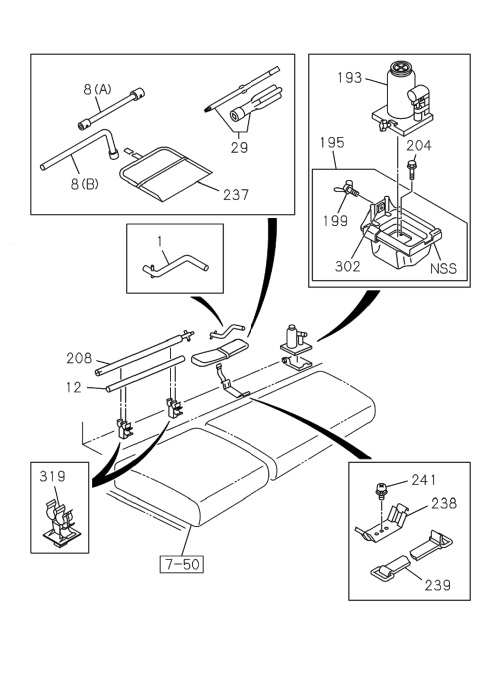

9-01 | TOOLS
ELF
NLR55 NMR71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 193 | I7-99300 200-A | JACK ASM | 1 | 1512- | NLR | |||
| 241 | I0-38050 616-0 | SCREW; TOOL BAG | 1 | 1512- | ALL | M6X16 | ||
| 204 | I0-28650 825-0 | BOLT; BRKT, JACK | 1 | 1512- | ALL | M8X25 | ||
| 280 | I8-97222 496-0 | BOX; TOOL | 1 | 1512- | NLR | |||
| 285 | I0-91180 108-0 | NUT; TOOL BOX | 4 | 1512- | NLR | |||
| 241 | I0-38050 616-0 | SCREW, TOOL BAG | 1 | 1512- | ALL | M6X16 | ||
| 238 | I8-97994 977-0 | SUPPORT, TOOL BAG | 1 | 1512- | ALL | |||
| 199 | I8-98005 536-0 | BOLT; JACK | 1 | 1512- | NLR | M8X30 | ||
| 285 | I0-91180 108-0 | NUT, TOOL BOX | 4 | 1512- | NLR | |||
| 195 | I8-98033 737-2 | BRACKET JACK | 1 | 1512- | NMR | |||
| 280 | I8-97222 496-0 | BOX; TOOL | 1 | 1512- | NMR71 | |||
| 12 | I7-99400 200-A | HANDLE, WRENCH,WHEEL PIN | 1 | 1512- | ALL | OD=25 L=480 | ||
| 237 | I7-99350 220-A | BAG, TOOL | 1 | 1512- | NLR | NLR71T | ||
| 237 | I7-99800 201-A | BAG; TOOL | 1 | 1512- | NLR | EXC. NLR71T | ||
| 29 | I7-99302 306-A | DRIVER; SCREW | 1 | 1512- | ALL | L=160 | ||
| 284 | I0-28650 825-0 | BOLT; TOOL BOX | 4 | 1512- | NMR71 | |||
| 193 | I7-99301 200-A | JACK ASM | 1 | 1512- | NMR | |||
| 237 | I7-99350 220-A | BAG; TOOL | 1 | 1512- | NMR | NMR71; NMR81 | ||
| 8 | I9-85113 935-0 | WRENCH; WHEEL | 1 | 1512- | NLR | (B) B=23 L=300 | ||
| 302 | I8-98021 556-0 | NUT; JACK BRKT | 1 | 1512- | ALL | |||
| 199 | I8-98005 536-0 | BOLT, JACK | 1 | 1512- | NLR | M8X30 | ||
| 8 | I7-99315 317-A | WRENCH; WHEEL | 1 | 1512- | NMR | (B) B=41X21 L=440 | ||
| 319 | I8-97853 077-2 | CLIP, TOOL BAR | 2 | 1512- | ALL | |||
| 239 | I5-73997 026-A | BAND, TOOL BAG | 1 | 1512- | ALL | L=100 | ||
| 284 | I0-28650 825-0 | BOLT; TOOL BOX | 4 | 1512- | NLR | |||
| 199 | I8-98005 537-0 | BOLT; JACK | 1 | 1512- | NMR | M8X50 | ||
| 237 | I7-99800 201-A | BAG, TOOL | 1 | 1512- | NLR | EXC. NLR71T | ||
| 1 | I7-99310 210-A | HANDLE, SPARE TIRE CARRIER | 1 | 1512- | ALL | |||
| 193 | I7-99300 200-A | JACK ASM | 1 | 1512- | NLR | |||
| 302 | I8-98021 556-0 | NUT, JACK BRKT | 1 | 1512- | ALL | |||
| 285 | I0-91180 108-0 | NUT; TOOL BOX | 4 | 1512- | NMR71 | |||
| 195 | I8-98033 737-2 | BRACKET JACK | 1 | 1512- | NMR | |||
| 1 | I7-99310 210-A | HANDLE; SPARE TIRE CARRIER | 1 | 1512- | ALL | |||
| 193 | I7-99301 200-A | JACK ASM | 1 | 1512- | NMR | |||
| 195 | I8-97589 376-2 | BRACKET JACK | 1 | 1512- | NLR | |||
| 8 | I7-99315 317-A | WRENCH, WHEEL | 1 | 1512- | NMR | (B) B=41X21 L=440 | ||
| 12 | I7-99400 200-A | HANDLE; WRENCH,WHEEL PIN | 1 | 1512- | ALL | OD=25 L=480 | ||
| 319 | I8-97853 077-2 | CLIP; TOOL BAR | 2 | 1512- | ALL | |||
| 208 | I7-99300 201-A | HANDLE; JACK | 1 | 1512- | ALL | L=642 | ||
| 8 | I9-85113 935-0 | WRENCH, WHEEL | 1 | 1512- | NLR | (B) B=23 L=300 | ||
| 284 | I0-28650 825-0 | BOLT, TOOL BOX | 4 | 1512- | NLR | |||
| 208 | I7-99300 201-A | HANDLE, JACK | 1 | 1512- | ALL | L=642 | ||
| 29 | I7-99302 306-A | DRIVER, SCREW | 1 | 1512- | ALL | L=160 | ||
| 280 | I8-97222 496-0 | BOX, TOOL | 1 | 1512- | NLR | |||
| 238 | I8-97994 977-0 | SUPPORT; TOOL BAG | 1 | 1512- | ALL | |||
| 195 | I8-97589 376-2 | BRACKET JACK | 1 | 1512- | NLR | |||
| 204 | I0-28650 825-0 | BOLT, BRKT, JACK | 1 | 1512- | ALL | M8X25 | ||
| 239 | I5-73997 026-A | BAND; TOOL BAG | 1 | 1512- | ALL | L=100 | ||
| 199 | I8-98005 537-0 | BOLT, JACK | 1 | 1512- | NMR | M8X50 | ||
| 237 | I7-99350 220-A | BAG; TOOL | 1 | 1512- | NLR | NLR71T |
